2. INTERFACES

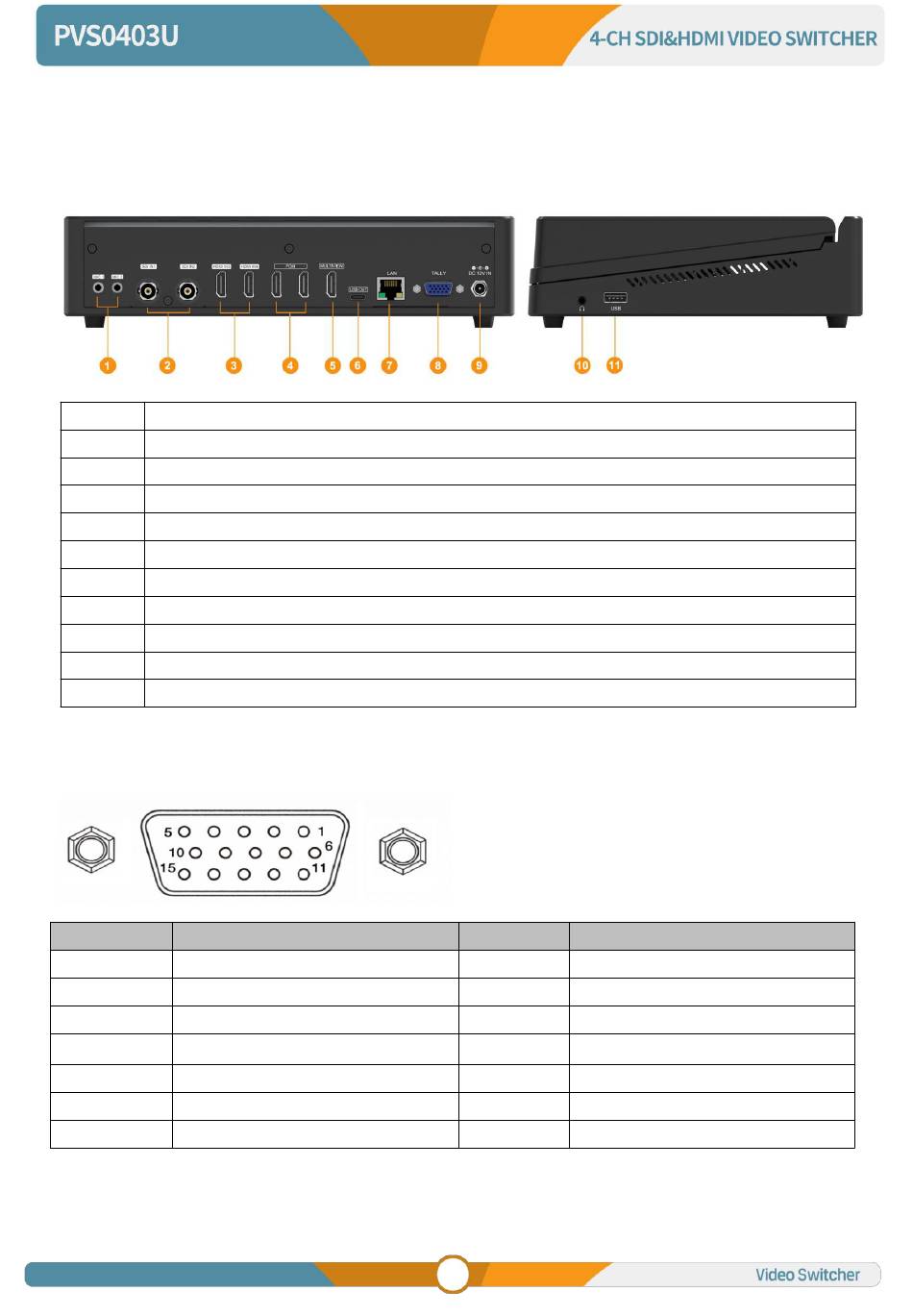

2.1. Interface Overview

1 MIC/Line level IN × 2
2 SDI IN × 2
3 HDMI IN × 2
4 PGM(AUX) OUT × 2
5 MULTIVIEW(AUX) OUT × 1
6
USB OUT × 1 (for live streaming on PC)
7
LAN port for PC software control
8 GPIO (for tally)
9 DC 12V IN × 1
10 Earphone OUT × 1
11 USB × 1 (insert U disk to import images and LOGO; firmware upgrade)

2.2. Tally PIN Definition

PIN
11
12
13
14
15
3
5
Definition
PGM-IN1
PGM-IN2
PGM-IN3
PGM-IN4
NC
NC
GND
2
PIN Definition
6
7
8
9
10
4
PVW-IN1
PVW-IN2
PVW-IN3
PVW-IN4
NC
NC
