Installing a hard disk
Warning:
Hard disks are easily damaged by static
electricity and physical shock (such as dropping). Touch
something metal, such as the printer frame, before you
touch the hard disk.
Install memory and option cards
34
If an option card has been installed, you
may have to remove the option card
before installing the hard disk.
1
Remove the system board access
cover (see page 29).
2

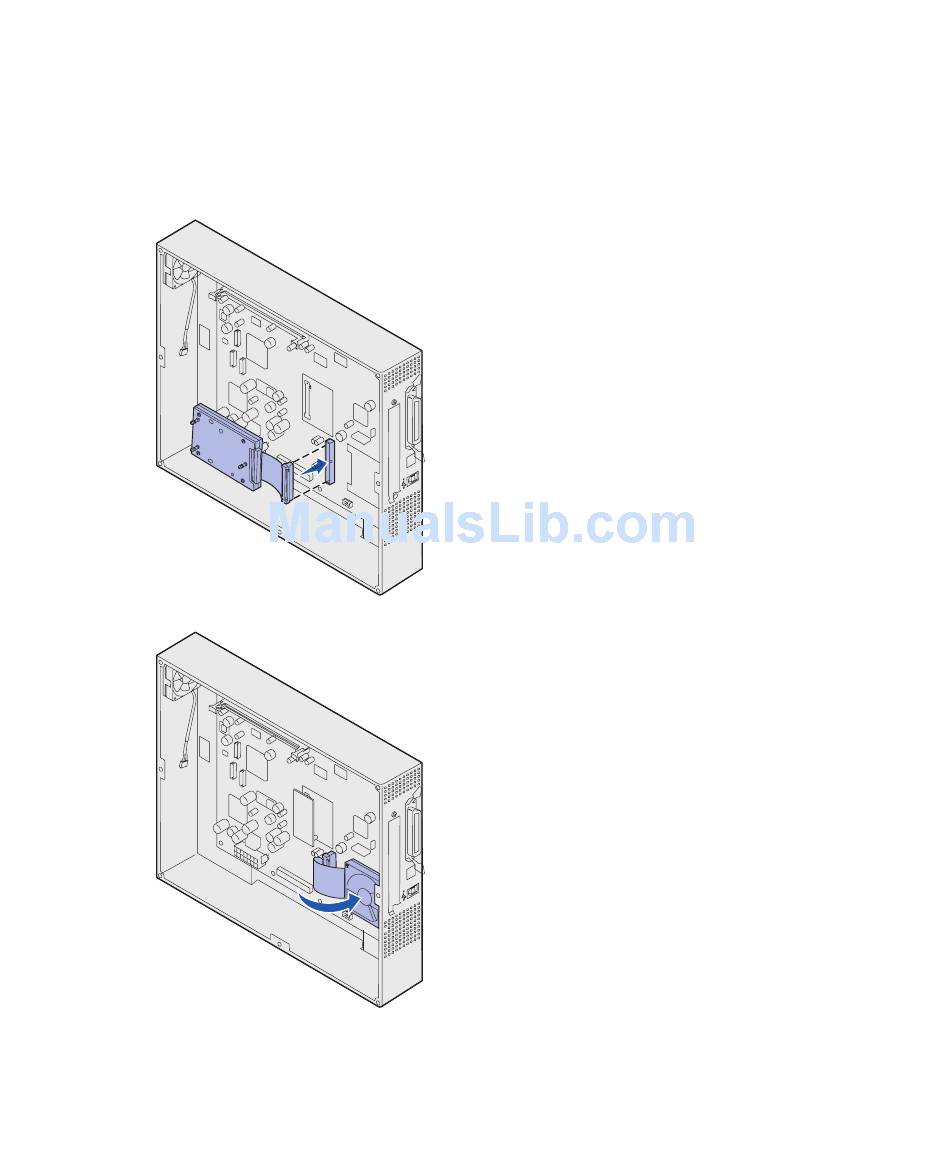

Align and press the ribbon cable
connector into the connector on
the system board.
3
Flip the hard disk over, and then
press the three posts on the
mounting plate into the holes on
the system board. The hard disk
snaps into place.
