Portwell WADE-8213-Q670E User Manual

Industrial mini-itx board

Hide thumbs

Table Of Contents

100

101

102

103

104

105

106

Table of Contents

Quick Links

Download this manual

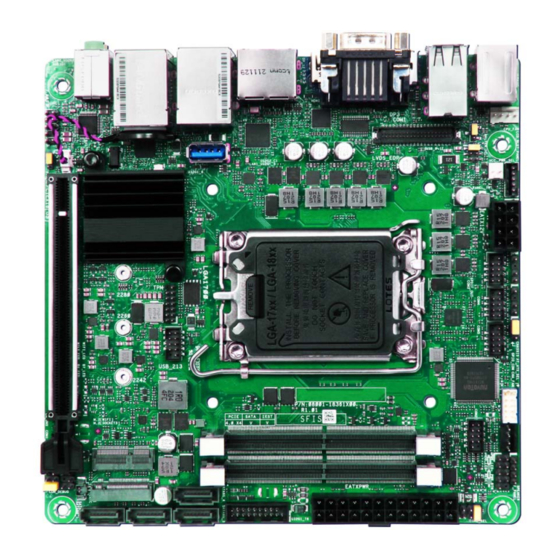

WADE-8213-Q670E

Industrial mini-ITX Board

Version 1.0

WADE-8213-Q670E User's Guide

Table of Contents

Need help?

Do you have a question about the WADE-8213-Q670E and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell WADE-8213-Q670E

Page 3: Table Of Contents
6.3 Installing the Single Board Computer ..............................48 6.3.1 Chipset Component Driver ..................................49 6.3.2 Intel UHD 770 Graphics ..................................49 ® 6.3.3 Intel LAN I225LM / I210AT Gigabit Ethernet Controller ..........................49 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 4 Troubleshooting ............................................. 97 8.1 Hardware Quick Installation ................................... 97 8.2 BIOS Setting ......................................98 8.3 FAQ ........................................99 9 Portwell Software Service ........................................105 10 Industry Specifications ......................................... 106 10.1 Industry Specifications ..................................106 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 5 Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell’s option and expense.
Page 7: Introduction
Desktop solution is still popular in the market of DVR and Factory Automation which can fulfill most of these applications; therefore, with high performance and high-end specifications, WADE-8213-Q670E is our first generationAlder Lake -S chip architecture on mini-ITX line. Copyright © Portwell 2022...
Page 8: Specifications
Supports one 10/100/1000 Mbps Ethernet port (s) via PCI Express x1 bus ◆ Ethernet Supports one 10/100/1000/2500 Mbps Ethernet port (s) via PCI Express x1 bus ◆ High Drive GPIO One pin-header for GPIO(8bit GPIO ) ◆ Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 9: Supported Operating Systems
Board size: 170mm x 170 mm ◆ Safety CE, FCC ◆ 2.1 Supported Operating Systems The WADE-8213-Q670E supports the following operating systems.  Windows* 10 IOT Enterprise (64-bit)  Ubuntu, Fedora Workstation, OpenSUSE Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 11: Power Consumption
Intel® Alder lake-S Chipset Device Software Version:10.1.18838.8284 USB 3.0 Driver Intel® USB 3.0 eXtensible Host Controller-1.20(Microsoft) SATA HDD SK Hynix 512G Power Supply AXT PSU: 600W ATX PSU 12V DC IN: ASUS EMA-DCB-A (DC source) Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 12: Environmental Specifications
0.265 / 0.403 ±5% +5VSB_ATX 0.019 / 0.126 ±5% 12V DC in +12V 1300 7.484 / 8.43 ±5% 2.4 Environmental Specifications Storage Temperature: -20~80°C Operation Temperature: 0~60°C Storage Humidity: 5~95% Operation Humidity: 10~90% Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 14: Hardware Configuration
WADE-8213-Q670E 4 Hardware Configuration 4.1 Jumpers and Connectors This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to hardware settings in this chapter. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 15: Jumpers Settings
4.2 Jumpers Settings For users to customize WADE-8213-Q670E’s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 16 RTC Battery header (2-pin BATTERY) M.2 Wi-Fi M.2 socket 3 SPI TPM header (14-1 pin SPI_TPM) LCD Panel Monitor Switch header (2-pin PANEL_SW) LVDS/eDP Signal connector (LVDS_eDP) LVDS/eDP Panel Enable Signal Selection header (3-pin BKLTEN_SEL) Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 18 WADE-8213-Q670E 2: Display panel VCC power selection (6-pin VCC_PWR_SEL) PIN No. Description 3V(Default) 1-2(Short) 2-3(Short) 5-6(Short) *Connector Type: 2.54mm pitch Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 20 PIN No. Description PIN No. Description PIN No. Description PIN No. Description +3.3V out +3.3V out +3.3V out +12V out +5V out +5V out +12V in PSON# +5V out +12V in +5V out +5V out +3.3V out Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 21 WADE-8213-Q670E DC Mode EATX12V PIN No. Description PIN No. Description +12V in +12V in +12V in +12V in 5: Intel LGA1700 CPU socket Unplug all power cables before installing the CPU. • Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 24 WADE-8213-Q670E 8: AT/ATX mode selection (3-pin AT_ATX_SEL) PIN No. Description ATX mode 1-2(Default) AT mode *Connector Type: 2.54mm pitch Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 29 WADE-8213-Q670E 13: COM1/2 Ring/+5V/+12V selection jumpers (6-pin COM1_SEL, COM2_SEL) PIN No. Description +12V Ring(Default) *Connector Type: 2.54mm pitch Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 41 WADE-8213-Q670E 28: LVDS/eDP Panel Enable Signal Selection header (3-pin BKLTEN_SEL) PIN No. Description High Active 1-2(Default) Low Active *Connector Type: 2.54mm pitch Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 42: Signal Descriptions
= Inportb(SIO_DATA_PORT) // Read current WDT setting val = val | 0x08; // minute mode, val = val& 0xF7 if second mode Outportb(SIO_INDEX_PORT, 0xF0); //select WDT setting Outportb(SIO_DATA_PORT, val); // Write back WDT setting Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 43 Outportb(SIO_DATA_PORT, 0x08); // device 8 Outportb(SIO_INDEX_PORT, 0x30); //select WDT status port val = Inportb(SIO_DATA_PORT) // Read current WDT status val = val | 0x01; // Enable WDT Timer Outportb(SIO_INDEX_PORT, 0x30); //select WDT status port Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 44 = val& 0xFE; // Disable WDT Timer Outportb(SIO_INDEX_PORT, 0x30); //select WDT status port Outportb(SIO_DATA_PORT, val); // Write back WDT status Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO 5. WADE-8213-Q670E SIO not support WDT Reset Flag judgement. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 45: Gpio Signal
Outportb(SIO_DATA_PORT, val); // Active GPIO Outportb(SIO_INDEX_PORT, 0xF0); val = Inportb(SIO_DATA_PORT) // Read current value val = val | (0x01 <<GPIOn); // GPO, val = val&~(0x01 <<GPIOn); if GPI, GPIOn is value 0 to 7 Outportb(SIO_INDEX_PORT, 0xF0); Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 46 = Inportb(SIO_DATA_PORT) // Read current value Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO if (val& (0x01 <<GPIOn)) // Determine if GPIOn is High or Low; GPIOn is value 0 to 7 return HIGH; //GPI High Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 47 = Inportb(SIO_DATA_PORT) // Read current value val = val | (0x01 <<GPIOn); // GPO LOW, val = val&~(0x01 <<GPIOn); if GPO High, GPIOn is value 0 to 7 Outportb(SIO_INDEX_PORT, 0xF1); Outportb(SIO_DATA_PORT, val); Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 48: System Resources
Before locking, make sure that all modules have been fully inserted into the card slots. 6.3 Installing the Single Board Computer To install your WADE-8213-Q670E into standard chassis or proprietary environment, please perform the following: Step 1 : Check all jumpers setting on proper position...
Page 49: Chipset Component Driver
6.3.1 Chipset Component Driver WADE-8213-Q670E is based on Intel® Q670E chipset and desktop processors including Core™ i9 / i7 / i5 / i3 sku . It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 10, please install its INF before any of other Drivers are installed.
Page 50: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 52: Main
Description Options The date format is <Day>, <Month><Date><Year>. Use [＋] or [－] to configure system Date. System Date The time format is <Hour><Minute><Second>. Use [＋] or [－] to configure system Time. System Time Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 55 Completion of power down to power up(T7) Timing value from 0 to 1023ms ★1020 VARY_BL enable to BL_EN enable(T9) Timing value from 0 to 1023ms ★16 BL_EN disable to VARY_BL disable(T10) Timing value from 0 to 1023ms ★0 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 56 Selects TPM device: PTT or dTPM. PTT-Enable PTT in SkuMgr dTPM1.2 –Disables PTT in ★dTPM, PTT TPM Device Selection SkuMgr Warning! PTT/ dTPM will be disabled and all data saved on it will be lost. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 57 Trusted Computing Settings Feature Description Options Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG ★Enable, Disable Security Device Support EFI protocol and INT1A interface will not be available. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 59 ★Enabled ,Disabled Enables utilization of additional hardware capabilities provided by Intel(R) Trusted ★Disabled, Enabled Intel Trusted Execution Technology Execution Technology. Changes require a full power cycle to take effect. ★Enabled ,Disabled VT-d VT-d capability Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 61 If value is 0, BIOS will program this value as 1.25*TDP. For 12.50w, enter Power Limit 2 ★0 12500. Processor applies control policies such that the package power does not exceed this limit. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 62 Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select HG for ★Auto, IGFX,PEG Slot Primary Display HybridGfx. ★Auto,Disabled ,Enabled Internal Graphics Keep IGFX enabled based on the setup options. ★Enabled ,Disabled RC6(Render Standby) Check to enable render standby support. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 63 Enable Hibernation may not be effective with some operating systems. ★S3(Suspend to RAM), Select the highest ACPI sleep state the system will enter when the SUSPEND ACPI Sleep State button is pressed, Suspend Disabled Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 65 The number of milliseconds reference code will wait for link to exit Detect Detect Timeout state for enabled ports before assuming there is no device and potentially ★0 disabling the port. ★Disabled, Enabled Detect Non-Compliance Device Enable when using Compliance Load Board Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 66 ★Send in DXE,Disabled End Of Post Message Enable/Disable End of Post message sent to ME. Enable/Disable Extend CSME Measurement to TPM-PCR[0] and AMT Config to ★Disabled, Enable Extend CSME Measurement to TPM-PCR TPM-PCR[1] Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 67 Description Options Change Secure Erase module behavior: ★Simulation, Real Secure Erase mode Simulated: Performs SE flow without erasing SSD Real: Erase SSD. ★Disabled, Enable Force Secure Erase Force Secure Erase on next boot Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 68 Serial Port 2 Configuration Set Parameters of Serial Port2(COMB) Serial Port 3 Configuration Set Parameters of Serial Port3(COMC) Serial Port 4 Configuration Set Parameters of Serial Port4(COMD) Serial Port 5 Configuration Set Parameters of Serial Port5(COME) Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 69 WADE-8213-Q670E Serial Port 1 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) COM1 Control Select COM1 mode. RS232, RS422 or RS485 ★RS232,RS422,RS485 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 70 WADE-8213-Q670E Serial Port 2 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) COM2 Control Select COM2 mode. RS232, RS422 or RS485 ★RS232,RS422,RS485 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 71 WADE-8213-Q670E Serial Port 3 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 72 WADE-8213-Q670E Serial Port 4 Configuration Feature Description Options Serial Port Enable or Disable Serial Port (COM) ★Enabled ,Disabled Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 73 WADE-8213-Q670E Serial Port 5 Configuration Feature Description Options ★Enabled ,Disabled Serial Port Enable or Disable Serial Port (COM) Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 74 Console Redirection [Enabled] The settings specify how the host computer and the remote computer (which the user is Console Redirection Settings using) will exchange data. Both computers should have the same or compatible settings. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 76 With this mode enabled only text will be sent. This is to capture Terminal data. ★Disabled, Enabled Recorder Mode ★Disabled, Enabled Resolution 100x31 Enables or disables extended terminal resolution ★VT100, LINUX,XTERMR6, SCO, ESCN, Putty KeyPad Select FunctionKey and KeyPad on Putty VT400 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 77 SATA Mode Selection Determines how SATA controller(s) operate. ★AHCI ★Enabled, Disabled SATA6G_1~ SATA6G_4 Enable or Disable SATA Port. Hot Plug Designates this port as Hot Pluggable. ★Disabled,Enabled M.2_2 Enable or Disable SATA Port. ★Enabled, Disabled Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 78 WADE-8213-Q670E VMD setup menu VMD Configuration settings Feature Description Options Enable VND controller ★Disabled, Enabled Enable/Disableto VMD controller. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 79 Enable/Disable IPv4 PXE boot support. If disable, IPv4 PXE boot support will not be available. ★Disabled, Enabled Ipv6 PXE Support Enable/Disable IPv6 PXE boot support. If disable, IPv6 PXE boot support will not be available. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 81 USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support U32G2X2_C1 Enable/Disable U32G2X2_C1. ★Enabled, Disabled ★Enabled, Disabled U32G2_3~ U32G2_4 Enable/DisableU32G2_3~ U32G2_4. ★Enabled, Disabled U32G1_5~ U32G1_8 Enable/Disable U32G1_5~ U32G1_8. USB9~13 Enable/DisableUSB9~13. ★Enabled, Disabled ★Enabled, Disabled USB2 Enable/DisableUSB2. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 83 Enabled= HDA will be unconditionally enabled. ★Enabled, Disabled LAN1 I225 Enable/Disable LAN1 I225. LAN2 I210 Enable/Disable LAN2 I210. ★Enabled, Disabled ★Enabled, Disabled M.2 WiFi Enable/Disable M.2 WiFi. ★Enabled, Disabled M.2 BT Enable/Disable M.2 BT. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 84 CPU PCIEX16 switch function1x16/2x8 ★1x16,2x8 Miscellaneous Miscellaneous Feature Description Options ★Disabled,Auto, ASPM L0s, DMI Gen3 ASPM DMI Gen3 ASPM Support. ASPM L1,ASPM L0SL1 ★Disabled,Auto, ASPM L0s, DMI ASPM DMI ASPM Support ASPM L1, ASPM L0SL1 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 85 Select whether to enable Wake Up on Alarm, to turn on your system on a special day of ★Disabled, Single event, Daily Power On By RTC the week or daily. event, Weekly event, Monthly event Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 87 Enter Ez-Flash mode Enter Ez-Flash mode Watchdog Timer Super IO Configuration Feature Description Options ★Enable, Disabled Watchdog Support Enable/Disable Watchdog Support. Watchdog Count mode Select Watchdog Timer I count mode. ★Second Mode, Minute Mode Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 90 The value of Fan Duty/RPM 2 when temperature isT2. ★178 FD/RPM 3 The value of Fan Duty/RPM 3 when temperature isT3. ★255 FD/RPM 4 The value of Fan Duty/RPM 4 when temperature isT4. ★255 Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 91: Security
WADE-8213-Q670E 7.2.4Security Feature Description Options Administrator Password Set Administrator password. User Password Set User Password Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 92 User mode. The mode change requires platform reset. Secure Boot Mode options: Standard or Custom. In Custom mode, Secure Boot Policy variables can be Secure Boot Mode ★Custom ,Standard configured by a physically present user without full authentication Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 93 Enroll Factory Defaults or load certificates from a file: Platform Key(PK) 1.Publuc Key Certificate: Key Exchange Keys a)EFI_SIGNATURE_LIST Authorized Signatures b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX Forbidden Signatures 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory, External, Mixed Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 94: Boot
Enables or disables boot with initialization of a minimal set of devices required to launch ★Disabled Link, Enabled Fast Boot active boot option. Has no effect for BBS boot options. ★Hard Disk, NVME, CD/DVD,SD, Boot Option #1~#6 Sets the system boot order USB Device, Network, Disabled Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 95: Exit
Restore/Load Default values for all the setup options. Save as Use Defaults Save the changes done so far as User Defaults Restore User Defaults Restore the User Defaults to all the setup options. Copyright © Portwell 2022 WADE-8213-Q670E User's Guide...
Page 97: Troubleshooting
ATX Power Setting Unlike other Single board computer, WADE-8213-Q670E supports ATX only. Therefore, there is no other setting that needs to be set up. However, there are only two connectors that must be connected—8-pin EATX12V & 24-pin EATXPW on the WADE-8213-Q670E board.
Page 98: Bios Setting
To make sure that you have a successful start with WADE-8213-Q670E, it is recommended, when going with the boot-up sequence, to hit “delete ” or ” Esc” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.
Page 99: Faq
BIOS setting back to the initial factory configurations. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
Page 100 WADE-8213-Q670E Question: How to update the BIOS file of WADE-8213-Q670E? Answer: 1. Please visit web site of Portwell download centeras below hyperlink https://www.portwell.com.tw/support-center/download-center/ 2. Select “Search download” and type the keyword “WADE-8213”. 3. Find the “BIOS “page and download the ROM file and unzip file to USB flash drive(FAT 32 / 16 format).
Page 103 WADE-8213-Q670E 6. When you see the “BIOS updated successfully” message, which means the BIOS update processes finished. Please cut the AC power ofand wait for 10 seconds before powering on. Copyright ©Portwell 2022 WADE-8213-Q670E User's Guide...
Page 104 WADE-8213-Q670E Question: What are the display options while using WADE-8213-Q670E board? Answer: The WADE-8213-Q670EsupportsDP、HDMI、eDP/LVDSdisplay output. Note: Please visit our Download Center to get the Catalog, User manual, BIOS, and Driver files. https://www.portwell.com.tw/support-center/download-center/ If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink.
Page 105: Portwell Software Service
WADE-8213-Q670E 9 Portwell Software Service 1. If you have customized requirements of BIOS, you can contact person of our company or branch. 2. If you have requirements of WDT、GPIO APP, you can contact our headquarter or branch, and we can render youassistance on developing.
Page 106: 10 Industry Specifications
WADE-8213-Q670E 10 Industry Specifications 10.1 Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC)http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
