WADE-8210-H110

Portwell

Version 1.2

WADE-8210-H110 User's Guide

Table of Contents

Need help?

Do you have a question about the WADE-8210-H110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell WADE-8210-H110

Page 3: Table Of Contents
6.1 Intel® Skylake / Kabylake -S PCH ....................................35 6.2 Main Memory ........................................... 35 6.3 Installing the Single Board Computer ....................................35 6.3.1 Chipset Component Driver ....................................36 6.3.2 Intel® HD Graphics 530 ....................................... 36 Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 4 7.2.4 Boot ............................................92 8 Troubleshooting ............................................103 8.1 Hardware Quick Installation ......................................103 8.2 BIOS Setting ............................................ 106 8.3 FAQ ............................................107 Portwell Software Service ........................................115 10 Industry Specifications .......................................... 116 Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 5 Portwell provides no warranty with regard to this user‘s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user‘s guide.
Page 6 Warranty‖). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non-conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell‘s option and expense.
Page 7: Introduction

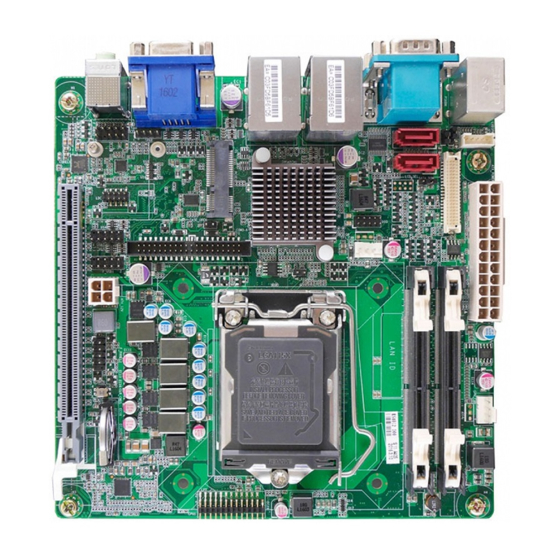

WADE-8210-H110 1 Introduction WADE-8210-H110 based on the Intel® Core™ Processor which offers 14nm process technology with energy efficient architecture. WADE-8210-H110 adopts two DDR4 S0-DIMM sockets and supports up to 16GB memory. Desktop solution is still popular in the market of DVR and Factory Automation which can fulfill most of these applications; therefore, with high performance and high-end specifications, WADE-8210-H110 is our first generation Skylake / Kabylake -S chip architecture on Mini-ITX product line.
Page 8: Specifications
Supports dual 10/100/1000 Mbps Ethernet port (s) via PCI Express x1 bus which provides 500 MB/s ◆ Ethernet data transmission rate Controller:Realtek RTL8111H ◆ High Drive GPIO One pin-header for 8 bit GPIO(4bit in & 4bit out) ◆ Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 9: Supported Operating Systems
Board size: 170mm x 170 mm (6.69" x 6.69") ◆ 2.1 Supported Operating Systems Windows 7/e support Windows 8.1 / WEI 8.1 support Windows 10 full support Kernel.org Distribution Yocto based Embedded Linux Distribution Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 11: Power Consumption
Audio Driver Realtek High Definition Audio 6.0.1.8036 Chip Driver Intel(R) Chipset Device Software Version: 10.1.1 USB3.0 Driver Intel(R) USB 3.0 eXtensible Host Controller :10.0.14393.0 * Version: 10.1.1 Power Supply PLUTO-D3501PJ 6.0.1.7989 6.0.1.7989 6.0.1.7989 Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 12: Environmental Specifications
1.40 USB2.0 Loading Test 4.86 V / 500 mA USB3.0 Loading Test 4.84V / 900mA 2.4 Environmental Specifications Storage Temperature : -20~80°C Operation Temperature : 0~60°C Storage Humidity : 5~90% Operation Humidity: 10~90% Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 14: Hardware Configuration
WADE-8210-H110 4 Hardware Configuration 4.1 Jumpers and Connectors This chapter indicates jumpers‘, headers‘ and connectors‘ locations. Users may find useful information related to hardware settings in this chapter. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 15: Jumpers Settings
4.2 Jumpers Settings For users to customize WADE-8210-H110‘s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 16 WADE-8210-H110 18: LCD PWR PIN No. Signal Description 1-2 Short VCC ★ 2-3 Short VCC3 19: VCON PIN No. Signal Description 1-2 Short 2-3 Short Ground ★ Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 17: Connector Settings
Front Panel USB2.0 Header Front Audio Header Speaker Header CASE Open Header Mini-PCIe slot(mSATA & USB2.0) System Fan Connector Digital Input & Output Header SATA port(SATA one support SATA DOM) SATA DOM Header Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 18 CPU Cooling Fan Connector DDR4 SO-DIMM Memory Slots 2: Printer Header PIN No. Signal Description PIN No. Signal Description STROBE AUTOF ERROR INIT SLCTIN Ground Ground Ground Ground Ground Ground BUSY Ground Ground SLCT No Pin Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 20 Power Switch(-) Reserved No Pin 9: Front Panel USB2.0 Header PIN No. Signal Description PIN No. Signal Description +5V_Dual +5V_Dual USB A - USB B - USB A + USB B+ No Pin Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 21 Line in Sensor Detect 11: Speaker Header PIN No. Signal Description Left Channel - Left Channel + Right Channel - Right Channel + 12: CASE Open Header PIN No. Signal Description CASE Open Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 22 GPIO 1 Input GPIO 5 Output GPIO 2 Input GPIO 6 Output GPIO 3 Input GPIO 7 Output +5VSB 20: LCD Backlight Power & Brightness Connector Header PIN No. Signal Description Backlight Enable Backlight Control Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 25: Signal Description
//WDT Timer out LSB value Register // Enter Configuration Mode void SuperIoExEnterConfig() UINT8 Value[] = {0x87, 0x01, 0x55, 0x55}; UINTN i; for (i = 0; i < 4; i++) { IoWrite8 (ITE_CONFIG_INDEX, Value[i]); // Exit Configuration Mode Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 26 // User can setting Watchdog timer, when WDT time up, system will be restart. // WDT_Mode - user can setting to Minute or Second mode. (Minute: 0, Second: 1) // TimeOutValue_MSB , TimeOutValue_LSB - setting on the following picture. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 27 // Switch to Logical Device 7 IoWrite8(ITE_CONFIG_INDEX, ITE_LDN_SEL_REGISTER); IoWrite8(ITE_CONFIG_DATA, ITE_LDN_GPIO); // Set WDT reset methods IoWrite8(ITE_CONFIG_INDEX, 0x71); IoWrite8(ITE_CONFIG_DATA, IoRead8(ITE_CONFIG_DATA) & ~(0x20| 0x40| 0x80)); IoWrite8(ITE_CONFIG_INDEX, 0x72); WDTRE=IoRead8(ITE_CONFIG_DATA); If (WDT_Mode) //BIT7: 1: Second Mode IoWrite8(ITE_CONFIG_DATA, WDTRE | 0x80); else Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 28 // Enable WDT output through PWRGD IoWrite8(ITE_CONFIG_INDEX, 0x72); IoWrite8(ITE_CONFIG_DATA, IoRead8(ITE_CONFIG_DATA) | 0x10); // Set time out value IoWrite8(ITE_CONFIG_INDEX, WDTVMSB );// MSB IoWrite8(ITE_CONFIG_DATA, TimeOutValue_MSB); IoWrite8(ITE_CONFIG_INDEX, WDTVLSB );// LSB IoWrite8(ITE_CONFIG_DATA, TimeOutValue_LSB); // Exit Configuration Mode SuperIoExExitConfig(); /* Disable _WDT Funtion Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 29 // Set WDT reset methods IoWrite8(ITE_CONFIG_INDEX, 0x71); IoWrite8(ITE_CONFIG_DATA, IoRead8(ITE_CONFIG_DATA) & ~(0x20| 0x40| 0x80)); //Disable WDT IoWrite8(ITE_CONFIG_INDEX, 0x72); IoWrite8(ITE_CONFIG_DATA, IoRead8(ITE_CONFIG_DATA) & ~0x10); // Exit Configuration Mode SuperIoExExitConfig(); //Example setting Watch dog time 30 second: Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 30 TimeOutValue_MSB = 0 TimeOutValue_LSB = 30 Enable_WDT(WDT_Mode, TimeOutValue_MSB, TimeOutValue_LSB) //Example setting Watch dog time 1 Minute: WDT_Mode = 0 TimeOutValue_MSB = 0 TimeOutValue_LSB = 1 Enable_WDT(WDT_Mode, TimeOutValue_MSB, TimeOutValue_LSB) //Example Disable Watch dog Disable_WDT() Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 31: Gpio Signal
// High_Low - User setting DIO pull High or low void IpcDIOOutputControl( UINT32 MmioOffset, BOOLEAN High_Low) UINT32 Data = 0; //Output Mode,BIT9 Set 1 & BIT8 Set 0 Data = (MmioOffset | (0x00000200)) & ~( 0x00000100); switch (High_Low) Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 32 WADE-8210-H110 case 1: //DIO Pull High MmioWrite32( MmioOffset, Data | 0x00000001); break; case 0: //DIO Pull Low MmioWrite32( MmioOffset, Data & ~( 0x00000001)); break; Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 33 MmioWrite32( MmioOffset, Data); //Read out DIO status value = MmioRead32(MmioOffset); value = value & 0x00000002; //Return DIO status If(value) return 1; //callback Hgih else return 0; //callback Low //Example DIO1 setting input mode: Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 34 WADE-8210-H110 // DIO_input_status read to value by DIO status, if (IpcDIOSetInputMode(DIO_Port1)) printf(―High‖); else printf(―Low‖); //Example DIO2 setting output mode: //DIO2 setting output pull low. IpcDIOOutputControl(DIO_Port2, 0); //DIO2 setting output pull High. IpcDIOOutputControl(DIO_Port2, 1); Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 35: System Resources
Intel® H110 Chipset (Intel® GL82H110 PCH) 6.2 Main Memory WADE-8210-H110 provides 2 x SO-DIMM sockets which supports DDR4 non-ECC memory. The maximum memory can be up to 16GB. Memory clock and related settings can be detected by BIOS via SPD interface.
Page 36: Chipset Component Driver
6.3.1 Chipset Component Driver WADE-8210-H110 is based on Intel® H110 chipset and desktop processors including Core™ i7 / i5 / i3 sku . It‘s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 8, please install its INF before any of other Drivers are installed.
Page 37: Realtek Rtl8111H Gigabit Ethernet Controller
6.3.3 Realtek RTL8111H Gigabit Ethernet Controller - Realtek RTL8111H Gigabit Ethernet controller and 2x RJ45 connectors on rear I/O Drivers Support Please find Realtek RTL8111H LAN driver in /Ethernet directory of WADE-8210-H110 CD-title. The driver supports Windows 8 Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 38: Bios Setup Items
If the message disappears before responding and still wish to enter Setup, please restart the system by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>, <Alt>, and <Delete> keys on keyboard simultaneously. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 39 The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 41 The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Date The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. System Time Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 44 WADE-8210-H110 Feature Description Options Onboard LAN 1 Controller Enabled/Disabled Onboard LAN 1 Controller ★Enabled, Disabled Onboard LAN 2 Controller Enabled/Disabled Onboard LAN 2 Controller ★Enabled, Disabled Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 47 Quiet: auto minimizes fan speed for quiet environment operation. ★Normal, Quiet, Silent, Manual, Smart Fan Mode Silent: auto restricts fan speed to make system more quietly. Disabled Manual: the fan adjusts depending on user‘s parameter. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 49 Resume by RTC Alarm – [Enabled] Day 1-31 Set Time ★1 Hours 0-23 Set Time ★0 Minutes 0-59 Set Time ★0 Seconds 0-59 Set Time ★0 EUP Function EUP S5 Function Disabled/Enabled ★Disabled, Enabled Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 51 WADE-8210-H110 Feature Description Options Select the highest ACPI sleep state the system will enter when the SUSPEND ★S3 (Suspend to RAM), Suspend ACPI Sleep State button is pressed. Disabled Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 53 ★Auto, C0/C1, C2, C3, Package C State limit Package C State limit C6, C7, C7s, C8 Enhanced Halt (C1E) Enhanced Halt (C1E) ★Enabled, Disabled Hardware P States (HWP) Enable/Disable HWP support ★Disabled, Enabled Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 55 SATA Port 2 On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to Spin Up Device ★Disabled, Enabled the device. External SATA External SATA Support ★Disabled, Enabled Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 57 ★Enable, Disabled Enables Legacy USB support. AUTO option disables legacy support if no USB Legacy USB Support Devices are connected. DISABLE option will keep USB devices available only for EFI ★Enabled, Disabled applications. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 59 Watch Dog Watch Dog Timer enable/disable ★Disabled, Enabled Watch Dog [Enabled] Watch Dog Timer Watch Dog Time Formatted settings ★Minute, Second Watch Dog Timer Time out Value Watch Dog Time ★0 (0 ~ 255) Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 65 WADE-8210-H110 Feature Description Options Serial Port Enable or Disable Serial Port (COM) ★Enabled, Disabled POWER MODE POWER MODE ★Normal, 5V, 12V Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 67 WADE-8210-H110 Feature Description Options Serial Port Enable or Disable Serial Port (COM) ★Enabled, Disabled POWER MODE POWER MODE ★Normal, 5V, 12V Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 73 ★ Auto, IO=378h; IRQ=5; IO=378h; IRQ=5,6,7,9,10,11,12; Change Settings Select an optimal setting for super IO device. IO=278h; IRQ=5,6,7,9,10,11,12; IO=3BCh; IRQ=5,6,7,9,10,11,12; Parallel port Standard Parallel port Device Mode Change the Printer Port mode. mode (SPP), EPP Mode Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 75 TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 Device Select devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM ★Auto, TPM 1.2, TPM 2.0 1.2 devices will be enumerated. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 77 1366x768 60HZ Bits24 LCD Panel Type LCD Panel Type. 1366x768 60HZ Bits18 1440x900 60HZ Bits24 1440x1050 60HZ Bits24 1600x900 60HZ Bits24 1600x1200 60HZ Bits24 1600x1050 60HZ Bits24 1920x1080 60HZ Bits24 1920x1200 60HZ Bits24 Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 79 WADE-8210-H110 Feature Description Options DIO output 5 DIO5 Help ★HIGH, LOW DIO output 6 DIO6 Help ★HIGH, LOW DIO output 7 DIO7 Help ★HIGH, LOW DIO output 8 DIO8 Help ★HIGH, LOW Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 81 Select DVMT5.0 Pre-Allocated (Fixed) Graphic Memory size used by the Internal 160M,192M,224M,256M,288M, IGD Memory Graphics Device. 320M,352M,384M,416M,448M, 480M,512M, 1024M DVMT Memory Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device. ★128M,256M,MAX Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 83 Control Detection of the Azalia device. Azalia HD Audio Disabled = Azalia will be unconditionally disabled ★Enabled, Disabled Enabled = Azalia will be unconditionally Enabled Case Open Warning Case Open detecting function. ★Disabled, Enabled, Clear Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 85 Selects TPM device: PTT or dTPM. PTT – Enables PTT in SkuMgr dTPM 1.2 – TPM Device Selection Disables PTT in SkuMgr Warning! PTT/ dTPM will be disabled and all data saved ★PTT, dTPM 1.2 on it will be lost. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 86: Security
WADE-8210-H110 7.2.3 Security This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 87 Secure Boot is possible only if System runs in User Mode Secure Boot [Enabled] Secure Boot mode selector. ‗Standard ‗ – fixed Secure boot policy, ‗Custom‘ – Secure Boot Mode ★Standard, Custom changeable Image Execution policy and Secure Boot Key databases Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 88 WADE-8210-H110 Key Management (Secure Boot Mode set Custom) Key Management Page allows for manual modification of the content of the Secure Boot variables. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 89 EFI_CERT_X509 (DER encoded) Key Exchange Keys ★Set New Key, Append Key c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256 (bin) 2. Authenticated UEFI Variable Key Source: Default , Custom, Mixed (*) modified from Setup Menu Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 90 EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) Forbidden Signatures ★Set New Key, Append Key c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256 (bin) 2. Authenticated UEFI Variable Key Source: Default , Custom, Mixed (*) modified from Setup Menu Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 91 EFI_SIGNATURE_LIST Authorized TimeStamps b) EFI_CERT_X509 (DER encoded) ★Set New Key, Append Key c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256 (bin) 2. Authenticated UEFI Variable Key Source: Default , Custom, Mixed (*) modified from Setup Menu Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 93 Sets the system boot order USB CD/DVD, USB Flash, USB Floppy, Network, Disabled ★USB Hard Disk , Hard Disk ,CD/DVD, Boot option #3 Sets the system boot order USB CD/DVD, USB Flash, USB Floppy, Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 94 USB Hard Disk, USB CD/DVD, USB Flash, USB Floppy, Network, Disabled ★Network, Hard Disk ,CD/DVD, USB Boot option #7 Sets the system boot order Hard Disk, USB CD/DVD, USB Flash, USB Floppy, Disabled Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 99 WADE-8210-H110 CSM Configuration (Operation System select Manual) CSM configuration: Enable/Disable, Option ROM execution settings, etc. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 100 Controls the execution of UEFI and Legacy Video OpROM only Determines OpROM execution policy for devices other than Network, Storage, or ★Legacy only, Do not launch , UEFI Other PCI devices Video only Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 102 Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 103: Troubleshooting
8 Troubleshooting This chapter provides a few useful tips to quickly get WADE-8210-H110 running with success. As basic hardware installation has been addressed in Chapter 2, this chapter will focus on system integration issues, in terms of BIOS setting, and OS diagnostics.
Page 105 All you need to operate AHCI application for system please follow up setting guide in BIOS setup utility. WADE-8210-H110 can support four SATA interface (SATAIII, 6.0Gb/s) on board. It has two SATA ports (SATA 1 and SATA 2) on board; The SATA interface shall support both 1.5 / 3.0Gb / 6.0Gb operation per the SATA specification.
Page 106: Bios Setting
To make sure that you have a successful start with WADE-8210-H110, it is recommended, when going with the boot-up sequence, to hit ―del‖ or ‖Esc‖ key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.
Page 107: Faq
Information & Support Question: I forgot my password of system BIOS, what am I supposed to do? Answer:You can switch off your power supply then find the CLR_CMOS Button on the WADE-8210-H110 Board. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 109 4. Find the “BIOS “page and download the ROM file and flash utility. 5. Unzip file to bootable USB flash drive which can boot to dos mode then insert in WADE-8210-H110 board. 6. Enter the BIOS setup menu to find the “Boot”...
Page 111 If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink. http://www.portwell.com.tw/support/problem_report.php We will do our best to provide a suggestion or solution for you. Thanks! Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 112 B. Click the Windows Start button, and click Windows7 USB/DVD Download Tool to execute. C. Choosing the ISO file, type the name and path of your Windows ISO file, or click Browse and select the file from the open dialog box. Click Next. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 113 (4) Please type the command to get which type of your Win7 O/S. dism /Get-WimInfo /WimFile:install.wim Please select the correct index number for your Win7 O/S. (Example: We used the Win7 Ultimate N then we must choose “index 5”) Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 114 7. Please copy both two file back to the \source of the root of your USB bootable device. Then you can install the Win7 O/S which has been included the USB3.0 driver by USB bootable device. Copyright © Portwell 2017 WADE-8210-H110 User's Guide...
Page 115: Portwell Software Service
9. Portwell Software Service Portwell Evaluation Tool (PET) The Portwell Evaluation Tool (PET) is an API which Portwell's customers can access the GPIO, I2C, SMBus, etc under Windows and Linux OS. For more information please contact Portwell. Portwell BIOS web Tool (PBT) The Portwell BIOS web Tool (PBT) is a brand new on-line utility which innovated by Portwell.
Page 116: Industry Specifications
WADE-8210-H110 10. Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0 http://www.serialata.org/...
