The TEST light signals that the internal logic is functioning correctly. It must flash at one second intervals indicating that the internal micro-
processor is on and awaiting a command. When the control unit is powered, the warning lights, set on the inputs, are ON when the contacts
on the inputs are closed toward the common:
Normally the red lights on inputs FCA-FCC-STOP-PHOTO-COAST, are ON
Normally the green lights on the control inputs OPEN-CLOSE-START-PEDESTRIAN are OFF
FCA FCC STOP PHOTO OPEN CLOSE START PEDONALE COAST

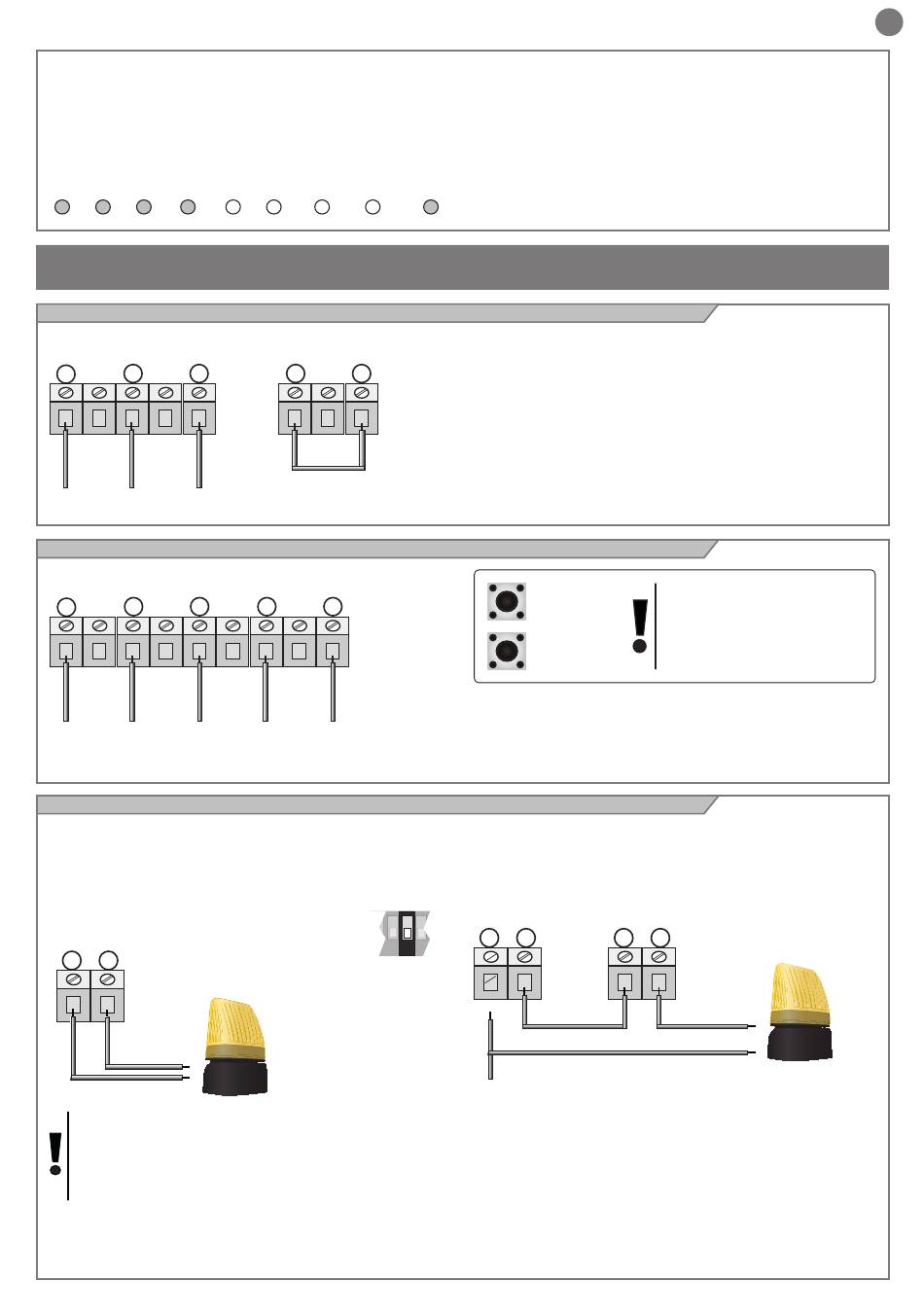

6 - ELECTRICAL CONNECTIONS

6.1 - Connection of the POWER SUPPLY
400 Vac THREE-PHASE
11 12 13
R S T
6.2 - Connection of the MOTOR and PROTECTIVE EARTHING
THREE-PHASE MOTOR
2 3
1
U V W
Connect the protective earthing (PE) to terminal block 5.
6.3 - Connection of the FLASHING LIGHT
You can see how to connect a 230V signal light with electronic card
or 230V signal light without card.
Signal light with electronic card
15 16
WARNING
This connection cannot be done if you need to
connect a mechanic brake.
Par. 2.4
8 9 10
4 5
PE PE
2 3 4 5 6
The control unit power supply line must always be protected with a
magnetothermal switch or a pair of 5A fuses. A differential switch is
recommended but not indispensable if one is already installed on
the plant.
Here are the connections for the inputs 11, 12,13 and the setting up
of the terminal board 8,9 and 10.
CLOSE
command
OPEN
command
Be ready to stop the system using the STOP control! To be sure that
the opening is really "opening", try to block the photocells: if the gate
begins to close, the connection is incorrect and the motor OPEN and
CLOSE wires must be inverted.
If is necessary put in OFF DIP4 as shown in the picture:
Signal light without card
15 16 6
Control board dispose of
2 buttons for opening and
closing of the door.
7
