6.7 - Use of terminal board FTS
If the photo-test is not used, in the terminal board will be used to
control or to avoid other devices (for example light function or
interblock) when the gate is open.

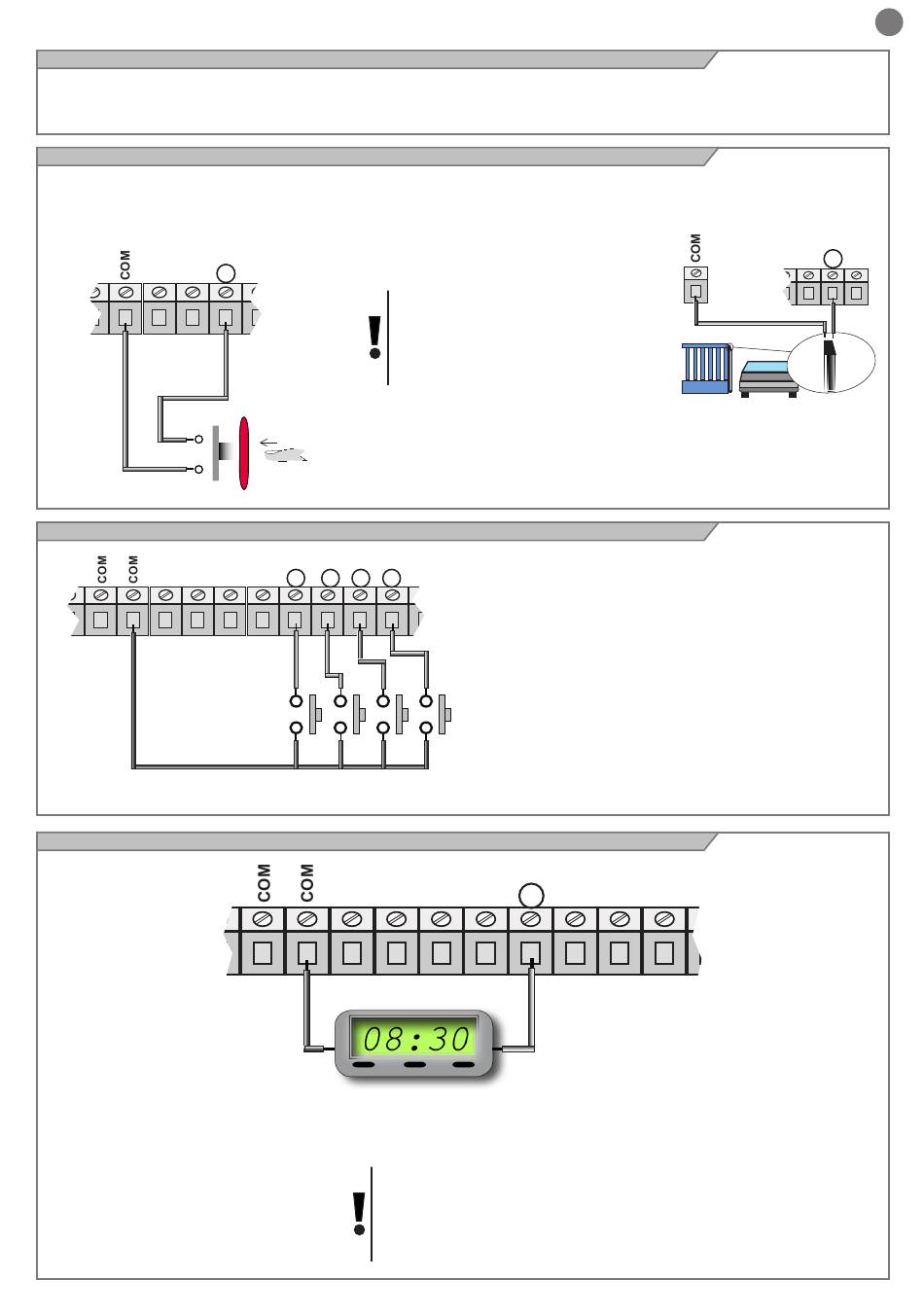

6.8 - Connection of the STOP/ALT control devices
Connection of the STOP control
Push-button: stops and temporarily prevents all control
unit function until it is pressed again.
Switch: keeps the automation blocked until it is reset.
17
18
19
6.9 - Connection of INPUTS
17
18
6.10 - Connection of the TIMER
If you need a timer it is possible to connect it to the terminal board no. 21 and COM. The contact of the timer is normally open and it should
be closed for all the time that the gate is open.
20
If the STOP or ALT inputs
are not used,
they must be jumpered.
(COM-19) (COM-25)
19
20
21
22
23
24
17
18
If an opening command is
connected to terminal 21, it
must be connected in parallel.
This contact is normally open when the gate is closed.
Connection of the ALT control
Stops the automation and activates an inversion of direction for
approximately 1.5 seconds
Connection of the safety devices requires the use of any
push-button or N.C. (normally closed) contact.
When there are several safety devices, they are connected
in series.
The buttons for the turning on of the control unit should be normally
open. If more devices are available the should be serial connected.
In the paragraph 3.1 are described the different functions of each
control.
Terminal:
21 OPEN
22 CLOSE
23 START
24 PARTIAL
19
20
21
22
23 24 25 26
23
24
EN
11
