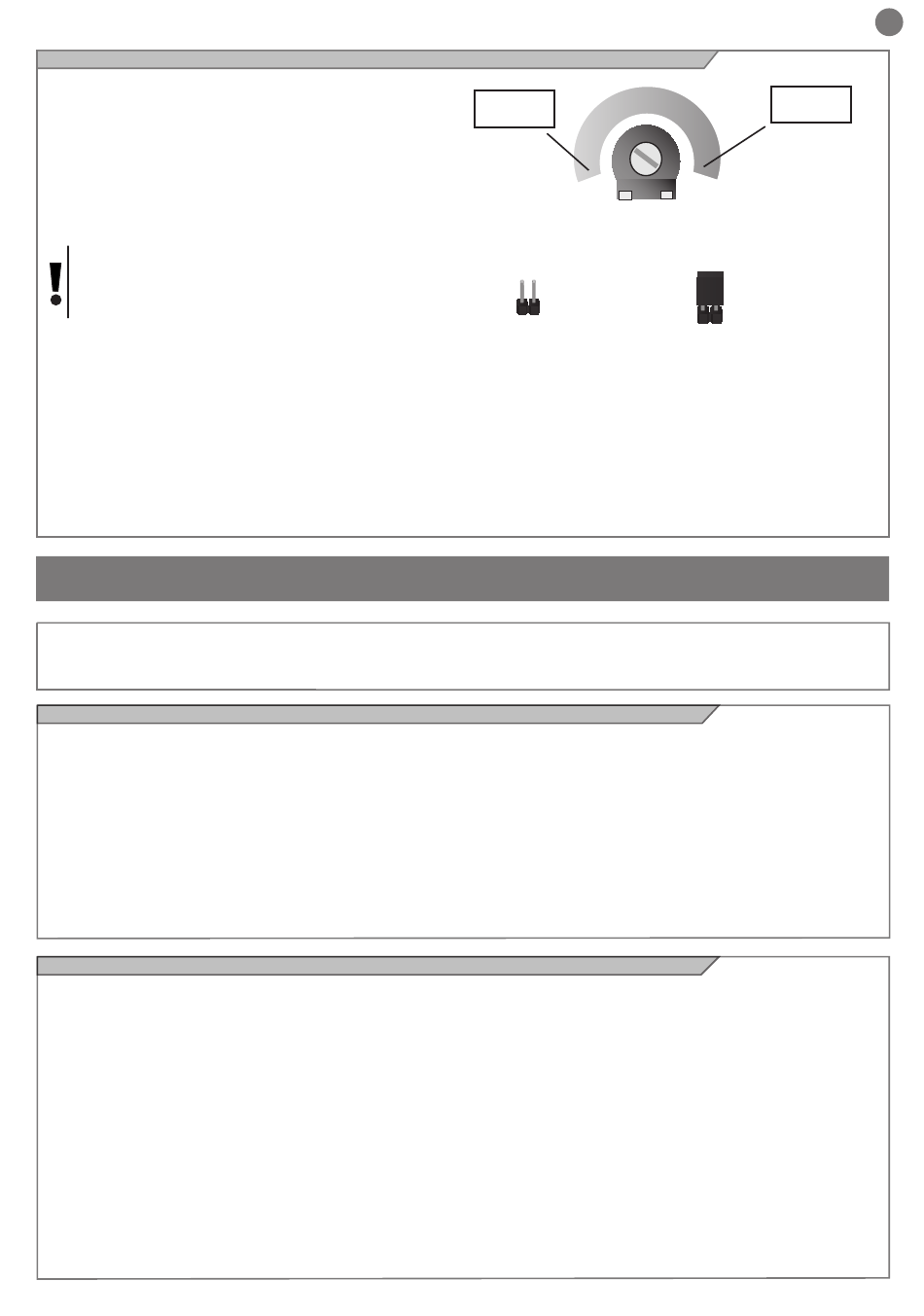

8.6 - Adjustment of the OBSTACLE DETENCTION
The control unit has an obstacle detection. In case that the gate has
an obstacle , the obstacle detection will stop the motor. It is possible
to adjust the sensitive of the obstacle detection with the trimmer.
To increase the sensitivity turn in the clock-wise ( the motor will stop
easily) and in the other side to reduce the sensitivity.
WARNING!! The control will not working for the first 2 seconds.
WARNING!! BEFORE ADJUST A LOW SENSITIVITY
BECAUSE A HIGHER CAN STOP THE MOTOR
(for example in case of low temperature or friction) even if
the run hasn't been stopped.
9 - TESTING AND COMMISSIONING THE AUTOMATION SYSTEM
The system must be tested by a qualified technician, who must
perform the tests required by the relevant standards in relation to the
risks present, to check that the installation complies with the relevant
9.1 - Testing
All system components must be tested following the procedures
described in their respective operator's manuals;
ensure that the recommendations in Chapter 1 - Safety Warnings -
have been complied with;
check that the gate or door is able to move freely once the automation
system has been released and is well balanced, meaning that it will
remain stationery when released in any position;
check that all connected devices (photocells, sensitive edges,
9.2 - Commissioning
Once all (and not just some) of the system devices have passed the
testing procedure, the system can be commissioned;
the system's technical dossier must be produced and kept for 10
years. It must contain the electrical wiring diagram, a drawing
photograph of the system, the analysis of the risks and the solutions
adopted to deal with them, the manufacturer's declaration of conformity
for all connected devices, the operator's manual for every device and the
system maintenance plan;
fix a dataplate with the details of the automation, the name of
person who commissioned it, the serial number and year of construction
and the CE marking on the gate or door;
also fit a sign specifying the procedure for releasing the system by hand;
Low
sensitivity
The control unit dispose of a jumper JP2 which can cancel the
obstacle detectoin and you can set up the jumper as follow:
JP2
Activate the
obstable detection
regulatory requirements, especially the EN12453 standard which
specifies the test methods for gate and door automation systems.
emergency buttons, etc.) are operating correctly by performing gate
or door opening, closing and stop tests using the connected control
devices (transmitters, buttons or switches);
after installation, ensure that mechanism is properly adjusted and
that protection system and any manual release function correctly
perform the impact measurements as required by the EN12453
standard, adjusting the control unit's speed, motor force and
deceleration functions if the measurements do not give the required
results, until the correct setting is obtained.
draw up the declaration of conformity, the instructions and
precautions for use for the end user and the system maintenance
plan and consign them to the end user;
or
ensure that the user has fully understood how to operate the system
in automatic, manual and emergency modes;
the end user must also be informed in writing about any risks and
hazards still present;
WARNING - after detecting an obstacle, the gate or door stops
the
during its opening travel and automatic closure is disabled; to
restart operation, the user must press the control button or use the
transmitter.
EN
High
sensitivity
JP2
Exclude the
obstacle detection
