7.2 - Dead Man Function
If you put the DIP3 the OPEN and CLOSE function changes and
also the input for photo-beams
The controls OPEN and CLOSE can be set to "Dead man" function.
It means that when the control will be relased the motor stops
immediately.
The controls START / PARTIAL have an automatic function, if the
control OPEN and CLOSED are in use, the control unit won't accept
any control START / PARTIAL untile the gate is closed.
7.3 - Installation and management of REMOTE CONTROL
To manage remote controls, install an RXM23Y external receiver or equivalent. Refer to the receiver instruction manual for remote control
management.

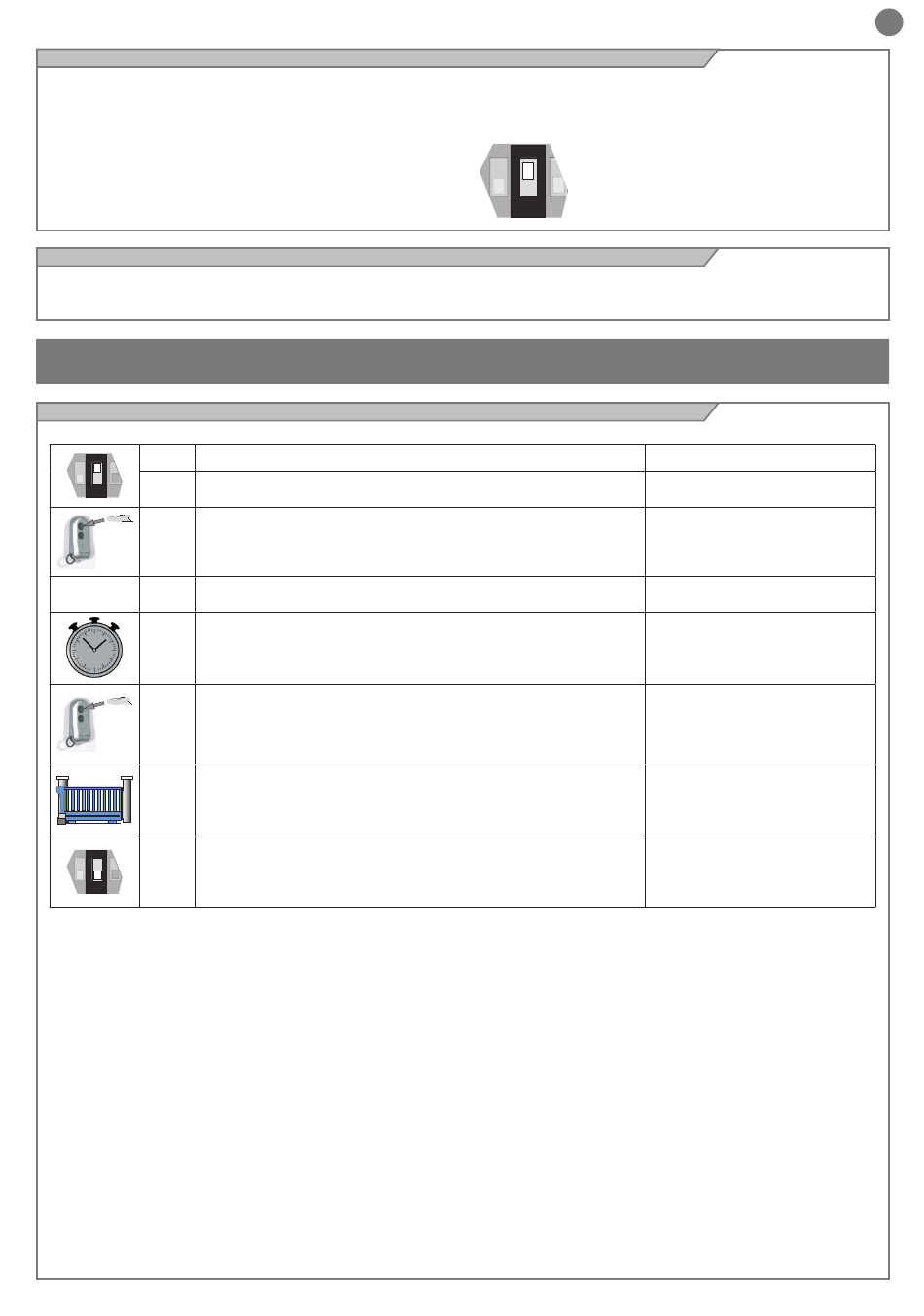

8 - TURNING ON AND PROGRAMMING THE UNIT
8.1 - Learning "START" OPENING COMMAND Times
WARNING!! The gate must be closet.
1
Put the DIP5 in ON
4 5 6
2
Press the control START
3
When the gate reach the opening limit switch ( FCO) the engine stops.
4
Let the time goes for the time that the gate should be open.
5
Press the control START to close the gate.
6
Wait until the gate stops.
7
4 5 6
During the "Dead Man" function all safeties are checled but not the
obstacle detection. The photo-beams input is always checked (when
the gate is open,too). The gate will stop until the contact is closed.
7 2 3 4
The gate is CLOSED
The gate STARTS OPENING
The gate STOPS
PAUSE TIME
The gate CLOSES.
The gate is CLOSED
