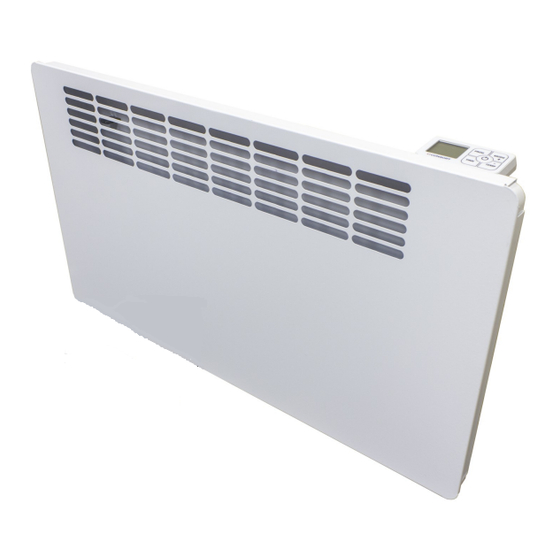

Installation & Control Guide for Panel Convector Heaters
with Electronic Controls and Open Window Detection
Models
PVE050
PVE075
PVE100
PVE150
PVE200
All electrical appliances produced by the Company are guaranteed for one year against faulty
materials or workmanship.
This applies only if the appliance has been used for purposes in
accordance with the instructions provided and has not been connected to an unsuitable
electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person
not authorised by us. This guarantee is offered to you as an extra benefit and does not affect your
legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing.
In the interest of progress the Company reserve the right to vary specifications from time to time
without notice.
66001327 Iss 01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Consort PVE050
Summary of Contents for Consort PVE050
- Page 1 UALITY PACE EATERS Installation & Control Guide for Panel Convector Heaters with Electronic Controls and Open Window Detection Models PVE050 PVE075 PVE100 PVE150 PVE200 All electrical appliances produced by the Company are guaranteed for one year against faulty materials or workmanship.
-
Page 2: Safety And Care
Overview appliance overheats. This will reset automatically once the appliance cools down. Please read this guide carefully and retain Cleaning for future use and maintenance. Always disconnect the heater from the mains This appliance has been designed and before cleaning. The heater should not require any manufactured to the highest international maintenance, but it is strongly advised that it is kept standards. -
Page 3: Installation
Installation Note: The heater MUST be fully secured in ILLIMETRES the vertical position before being switched ATTS on. It must be ‘clicked’ into the locking tabs. See section 12 for more mounting in- PVE050 formation. PVE075 PVE100 1000 PVE150 1500... - Page 4 4. Boost mode 1. Basic Operation Before you can use the PVE, it has to be activated by The boost feature increases the room temperature for 15 pressing any of the TIME, PROG, TEMP or MODE minutes. buttons once. The LCD backlight will turn on. To operate any control button, press within 2 seconds of To amend the set temperature when in BOOST mode, activation.
- Page 5 7. Set 7-day programme An example of one day programme on PVE PROGRAM 1 PROGRAM 2 PROGRAM 5 PROGRAM 6 PROGRAM PROGRAM ºC 19ºC 22ºC 22ºC 16ºC 10ºC 4ºC 06:00 08:00 12:00 14:00 16:00 22:00 Logic diagram for setting programme on PVE Press and hold PROG for 5 seconds to enter the PROG time setting.
- Page 6 8. Open Window Detection 10. Heat symbol on the display Ensuring you don’t waste energy on heating the outside Every time there is a demand for heat, the display will show the heat icon. world, the heater is equipped with optional open / closed window detection.
-
Page 7: Declaration Of Conformity
BSEN301 489.1 & .3 • BSEN300 220.1 & .2 • BSEN60 730.2.9 • BSEN 60335.1 (2012 ) • BS EN 60335.2.30 (2009) • PVE050, PVE075, PVE100, PVE150 and UMBER ESCRIPTION PPLIANCE PVE200 Panel heaters A C R ESPONSIBLE ERSON EYNOLDS OSITION...
