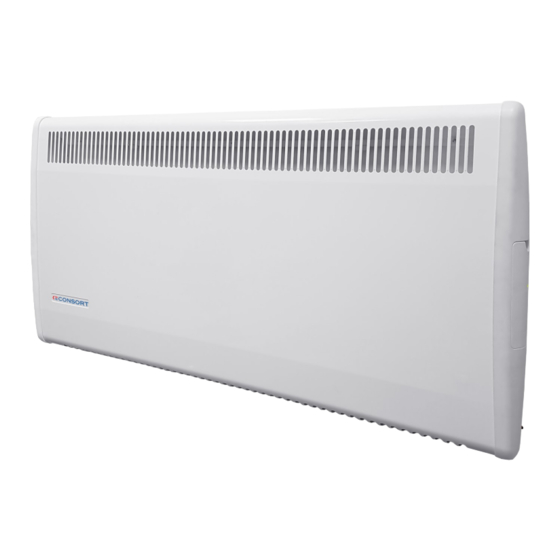

Installation & Control Guide for Low Surface Temperature
Panel Heaters with Electronic Controls and WIFI connection
All electrical appliances produced by the Company are guaranteed for one year against faulty
materials or workmanship.
accordance with the instructions provided and has not been connected to an unsuitable
electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person
not authorized by us. This guarantee is offered to you as an extra benefit and does not affect your
legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing.
In the interest of progress the Company reserve the right to vary specifications from time to time
without notice.
S
UALITY
PACE
Models
PLSTI050EWIFI
PLSTI075EWIFI
PLSTI100EWIFI
PLSTI150EWIFI
This applies only if the appliance has been used for purposes in
H
EATERS
66001185 Iss 01
Advertisement
Table of Contents
Related Manuals for Consort PLSTI050EWIFI
Summary of Contents for Consort PLSTI050EWIFI

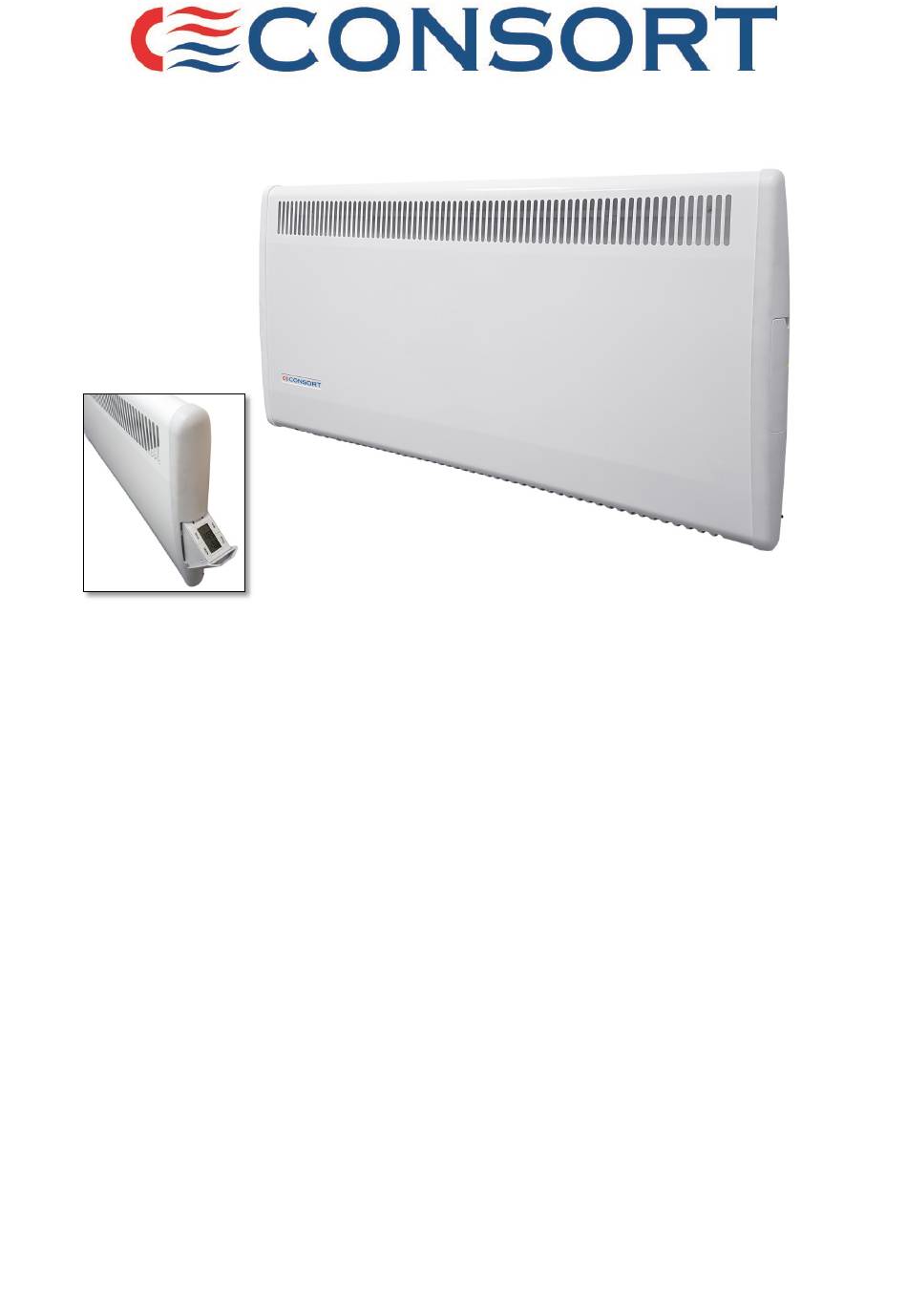

- Page 1 PACE EATERS Installation & Control Guide for Low Surface Temperature Panel Heaters with Electronic Controls and WIFI connection Models PLSTI050EWIFI PLSTI075EWIFI PLSTI100EWIFI PLSTI150EWIFI All electrical appliances produced by the Company are guaranteed for one year against faulty materials or workmanship.
- Page 2 General Safety Thermally Operated Cut-Out Our Low Surface Temperature heaters have The appliance is fitted with a thermally operated cut-out (TOC). This is a safety device, which switches the heater off been designed and built to the NHS if, for any reason, the appliance overheats. The TOC can requirement for safe surface temperatures only be re-set after the appliance has cooled down.
- Page 3 Installation Mounting bracket This unit must be installed using the mounting bracket and chains provided. The chains are used to prevent the unit from being dropped when the securing screws are loos- ened. This means the securing screws can simply be loosened to view behind the heat- er.
- Page 4 Time Prog SET TIME SET PROGRAM PRESS AND HOLD PRESS AND HOLD FOR 5 SECONDS FOR 5 SECONDS MODE SELECTION EMPERATURE SET Mode BOOST, MANUAL, Temp WHEN DISPLAY SHOWS SETBACK AND ROOM TEMPERATURE, PROGRAM PRESS TO ADJUST 1. Basic Operation 5.
- Page 5 Setup instructions problem. Press and hold PROG for 5 seconds to enter the Pairing the heater to the Consort Connect app. program setup menu. Ensure the smartphone or tablet is connected to The day will be flashing, this is the select day 2.4GHz WIFI network and the Bluetooth is enabled.
- Page 6 11. Open Window Detection 14. Setup menu Ensuring you don’t waste energy on heating the outside Press and hold TEMP and MODE together for 5 world, the heater is equipped with optional open / seconds. closed window detection. The heater recognises sudden The display will enter the setup menu.
- Page 7 Basic control of an individual heater The 7-day program can be set using the app instead of When you open the Consort Connect app, select the the electronic timer. To access the program page, select heater you would like to control. This will bring you to the icon.
- Page 8 To use it, follow the steps listed below. Open the Consort Connect app and select the To wall mount, the wall bracket supplied must be used. ’Smart’ option on the bottom of the screen.
