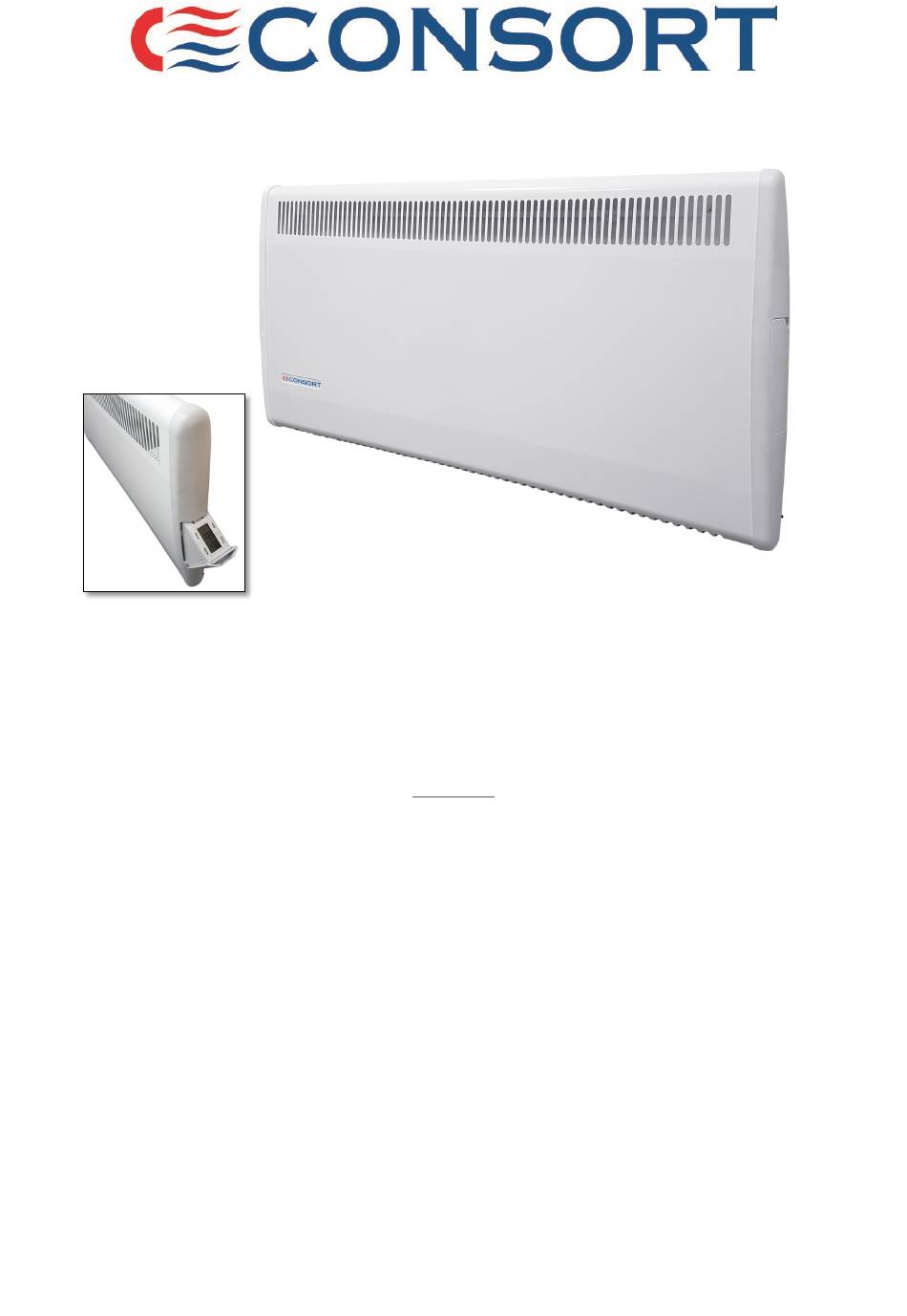

Installation & Control Guide for Panel Convector Heaters
with Electronic Controls and WIFI connection
PLE050MWIFI
PLE125MWIFI
PLE050WIFI
PLE125WIFI
All electrical appliances produced by the Company are guaranteed for one year against faulty
materials or workmanship.
accordance with the instructions provided and has not been connected to an unsuitable
electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person
not authorized by us. This guarantee is offered to you as an extra benefit and does not affect your
legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing.
In the interest of progress the Company reserve the right to vary specifications from time to time
without notice.
S
UALITY
PACE
Models
PLE075MWIFI
PLE150MWIFI
PLE075WIFI
PLE150WIFI
This applies only if the appliance has been used for purposes in
H
EATERS
PLE100MWIFI
PLE200MWIFI
PLE100WIFI
PLE200WIFI
66001142 Iss 01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Consort PLE050MWIFI
Summary of Contents for Consort PLE050MWIFI
- Page 1 UALITY PACE EATERS Installation & Control Guide for Panel Convector Heaters with Electronic Controls and WIFI connection Models PLE050MWIFI PLE075MWIFI PLE100MWIFI PLE125MWIFI PLE150MWIFI PLE200MWIFI PLE050WIFI PLE075WIFI PLE100WIFI PLE125WIFI PLE150WIFI PLE200WIFI All electrical appliances produced by the Company are guaranteed for one year against faulty materials or workmanship.
- Page 2 Overview into a single network name, and assign the band automatically. A mobile phone could be automatically Please read this guide carefully and retain for connected to the 5GHz network, and this will cause pairing future use and maintenance. issues. Routers usually have a setting that gives each band to have a different network name, which is configurable This appliance has been designed and through the router’s web interface.
-
Page 3: Installation
Installation Fig. 1 195mm See Note 16 for Mounting ILLIMETRES ATTS PLE050WIFI/MWIFI PLE075WIFI/MWIFI PLE100WIFI/MWIFI 1000 PLE125WIFI/MWIFI 1250 PLE150WIFI/MWIFI 1500 PLE200WIFI/MWIFI 2000 The heater MUST be fully secured in the vertical position before being switched on. It must be ‘clicked’ into the locking tabs. See section 15 for more mounting information. 66001142 Iss 01... -
Page 4: Temp Mode
Time Prog SET TIME SET PROGRAM PRESS AND HOLD PRESS AND HOLD FOR 5 SECONDS FOR 5 SECONDS MODE SELECTION EMPERATURE SET Mode BOOST, MANUAL, Temp WHEN DISPLAY SHOWS SETBACK AND ROOM TEMPERATURE, PROGRAM PRESS TO ADJUST 1. Basic Operation The 15 minute period can be increased up to 4 hours by using the PROG button. - Page 5 Setup instructions problem. Press and hold PROG for 5 seconds to enter the Pairing the heater to the Consort Connect app. program setup menu. Ensure the smartphone or tablet is connected to The day will be flashing, this is the select day 2.4GHz WIFI network and the Bluetooth is enabled.
- Page 6 10. Open Window Detection 13. Heat symbol on the display Ensuring you don’t waste energy on heating the outside Every time there is a demand for heat, the display will show the heat icon. world, the heater is equipped with optional open / closed window detection.
- Page 7 Basic control of an individual heater time schedules immediately. It is When you open the Consort Connect app, select the recommended to leave the heaters in manual heater you would like to control. This will bring you to the mode with occupancy sensor enabled for the main page for controlling the heater.
-
Page 8: Customer Helpline
Repeat these steps for all time periods so that the heater screen. runs as required. USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Email: technical@consortepl.com...
