Summary of Contents for Avalue Technology OFP-21W38
Page 1

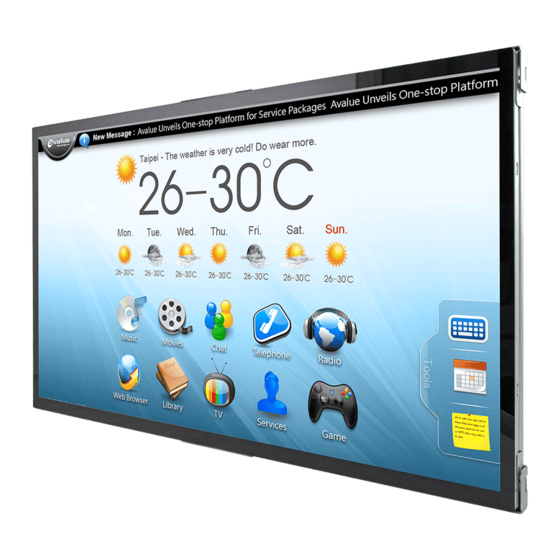

OFP-21W38 21" Open Frame Panel PC Quick Reference Guide Ed – 14 October, 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017O218A0R...
Page 2
(2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFP-21W38 Quick Reference Guide...
Page 3
RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFP-21W38 Quick Reference Guide...
Page 4
“CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFP-21W38 Quick Reference Guide...
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFP-21W38 Open Frame Panel PC 4 x VESA Screw ...
Touch Screen sense ST-215C18A-1.1T Touch Controller EETI External I/O 1 x RS232(default)/422/485, Serial Port 1 x RS232/422/485(optional), 3 x RS232 (optional) 3 x USB3.1 Gen2 USB Port 1 x USB 3.1 Gen1 2 x USB 2.0 (optional) OFP-21W38 Quick Reference Guide...
Page 10
3 Sweep:1 Oct/ per one minute. (logarithmic) 4 Test Axis : X,Y and Z axis 5 Test time :30 min. each axis 6 System condition : Non-Operating mode 7. Reference IEC 60068-2-6 Testing procedures Package Vibration Test: 10 OFP-21W38 Quick Reference Guide...
Page 11
40°C @ 95% Relative Humidity, Non-condensing Humidity Storage -20°C ~ 60°C (-4°F ~ 140°F) Temperature Power Max. load 65.36W with intel core i7-1195G7E/4GB/64GB(M.2 SSD)/64BG(2.5” SSD), 24V DC-in Consumption Note: Specifications are subject to change without notice. OFP-21W38 Quick Reference Guide 11...
DP1/2 2 x DP connector Do not connect any power 2 pins Phoenix connector default for system Power Switch source to this connector to reset function (option for power on/off) avoid damage of motherboard 12 OFP-21W38 Quick Reference Guide...
OFP-21W38 1.6 Panel Mounting Panel mount is the solution for mounting OFP into the opening of wall (or cabinet). The dimension of opening is as below: (Opening dimension) (Panel thickness) (Installation surface) (Unit: mm) 14 OFP-21W38 Quick Reference Guide...
Page 15
Quick Reference Guide Step1. Insert and fasten 10 pcs Hexagon Studs on each side of the OFP-21W38 Panel Bracket. Hexagon Stud OFP-21W38 Item Part Name Quantity OFP-21W38 Quick Reference Guide 15...
Page 16
OFP-21W38 Step2. Assemble the 2pcs Bracket-RL on the left and right sides of the OFP-21W38 bracket by fastening 4 pcs screws on each side. Screw Bracket-RL Item Part Name Quantity 16 OFP-21W38 Quick Reference Guide...
Page 17
Quick Reference Guide Step3. Assemble the Front Bracket to OFP-21W38 and fasten 10 pcs screws on the corresponding Hexagon Studs. Front Bracket Screw Item Part Name Quantity OFP-21W38 Quick Reference Guide 17...
Page 18
OFP-21W38 Step4. Assemble the 6pcs Panel kit Brackets on the Front Bracket and fasten the 16 pcs screws to the corresponding holes. Screw Panel kit Bracket Item Part Name Quantity 18 OFP-21W38 Quick Reference Guide...
Page 19
Quick Reference Guide (outside the wall (or cabinet) opening) Step5. Embed the OFP-21W38 semi-finished product into the wall (or cabinet) opening. Wall Item Part Name Quantity OFP-21W38 Quick Reference Guide 19...
Page 20
Step6. Fasten the Panel mount screw*12 to the Panel mount kit bracket*12 (as shown in Figure 6-1), and then attach them to the Panel Kit Bracket*6 fixing slots. Figure 6-1 Panel mount Screw Panel Mount Kit Bracket Panel Kit Bracket Item Part Name Quantity 20 OFP-21W38 Quick Reference Guide...
Page 22
Step7. Fasten the Panel mount screw*12 against the wall, so that the entire module can be secured by the Panel mount screws and Panel mount kit brackets. Panel mount Screw Wall Item Part Name Quantity 22 OFP-21W38 Quick Reference Guide...
Page 23
Quick Reference Guide (The diagram is demonstrated by OFT-10W01, but the concept “the entire module can be secured by fastening the Panel mount screws against the wall” is the same) OFP-21W38 Quick Reference Guide 23...
Page 24
OFP-21W38 Step8. Paste the 2 pcs U Plates on the Front Bracket to complete installation. U Plate Front Bracket Item Part Name Quantity 24 OFP-21W38 Quick Reference Guide...
Page 25
Quick Reference Guide Step9. Paste the Decoration Plate on the U Plate to complete installation. Decoration Plate U Plate Item Part Name Quantity OFP-21W38 Quick Reference Guide 25...
Quick Reference Guide 1.7 Wall Mounting Wall mount is the solution for mounting OFP into the wall. Size of the opening: (Opening dimension) (Wall box installation dimension) (Installation surface) (Unit: mm) OFP-21W38 Quick Reference Guide 27...
Page 29
Step1. Install the 21” Wall Box and fix it on the wall, and use suitable screws to lock the wall box (the screws can be purchased according to actual needs) Wall box Item Part Name Quantity OFP-21W38 Quick Reference Guide 29...
Page 30
OFP-21W38 Step2. Assemble the 2pcs Bracket-RL on the left and right sides of the OFP-21W38 bracket by fastening 4 pcs screws on each side Screw Bracket-RL OFP-21W38 Item Part Name Quantity 30 OFP-21W38 Quick Reference Guide...
Page 31
Quick Reference Guide Step3. Fasten 10 pcs Hexagon Studs on each side of the OFP-21W38 Bracket. Hexagon Stud BCX11_156_ASSY Item Part Name Quantity OFP-21W38 Quick Reference Guide 31...
Page 32
OFP-21W38 Step4-1. Assemble the Front bracket to OFP-21W38, and fasten 14 pcs screws to the 10 corresponding Hexagon Studs locations and 4 Bracket R/L locations. Step4-2. Fasten the 3 pcs wall mount kit to the top of the Front bracket with 6pcs screws Step4-3.
Page 35
Quick Reference Guide Step5. Fasten the Ground wire with 2 screws on the ground screw holes of Front bracket and Wall box. Ground wire Screw Front bracket Wall box Item Part Name Quantity OFP-21W38 Quick Reference Guide 35...
Page 36
OFP-21W38 Step6. Wrap the Kensington lock (option) around the hole in the Front bracket and attach the lock to the keyhole in the Wall box. Kensington lock Front bracket Wall box Item Part Name Quantity 36 OFP-21W38 Quick Reference Guide...
Page 37
Quick Reference Guide Step6-1. Store the Ground wire and Kensington lock in the Wall box and embed the OFP-21W38 semi-finished product into the wall (Wall Box). Step6-2. Paste the Decoration Plate on the Front bracket to complete installation. PC bezel...
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EMX-TGLP included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw OFP-21W38 Quick Reference Guide 39...
In RS-232 Mode Signal PIN PIN Signal NDCD# NDSR# NRXD NRTS# NTXD NCTS# NDTR# NRI# In RS-422 Mode Signal PIN PIN Signal TxD1- TxD1+ RxD1+ RxD1- In RS-485 Mode Signal PIN PIN Signal DATA1- DATA1+ 40 OFP-21W38 Quick Reference Guide...
Page 44
SATA Power connector 1 4 x 1 wafer, pitch 2.54mm USIM card slot USIM1 CPU_FAN1 CPU fan connector 4 x 1 wafer, pitch 2.54mm By OEM request. Due to poor PCle connector compatibility concern, remove PCIEX4_1 this connector. 44 OFP-21W38 Quick Reference Guide...
OFP-21W38 2.4.15 SATA Power connector 1 (SPWR1) Signal +V5S_SATA +V12S_SATA 2.4.16 Power connector (PWR1) Signal Signal +VIN +VIN 52 OFP-21W38 Quick Reference Guide...
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 60 OFP-21W38 Quick Reference Guide...
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. OFP-21W38 Quick Reference Guide 61...
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 62 OFP-21W38 Quick Reference Guide...
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. OFP-21W38 Quick Reference Guide 63...
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 64 OFP-21W38 Quick Reference Guide...
Otherwise Integrated CNVi Mode Auto Detection solution (CNVi) will be enabled; [Disable Integrated] disables Integrated Solution. NOTE: When CNVi is present, the GPIO pins that are used for radio 3.6.2.2 CPU Configuration OFP-21W38 Quick Reference Guide 65...
When enabled, a VMM can utilize the additional Disabled Virtualization hardware capabilities provided by Vanderpool Enabled[Default], Technology Technology. All[Default], Number of cores to enable in each processor Active Processor Cores package. 3.6.2.3 Power & Performance 3.6.2.3.1 CPU - Power Management Control 66 OFP-21W38 Quick Reference Guide...
CPU to go to C states when it's not 100% utilized. Disabled Enable/Disable C1E. When enabled, CPU will switch Enhanced C-states Enabled[Default], to minimum speed when all cores enter C-State. 3.6.2.4 PCH-FW Configuration 3.6.2.4.1 Firmware Update Configuration OFP-21W38 Quick Reference Guide 67...
Item Options Description Enables or Disables BIOS support for security Disabled device. O.S. will not show Security Device. Security Device Support Enabled[Default], TCG EFI protocol and INT1A interface will not be available. 3.6.2.6 ACPI Settings 68 OFP-21W38 Quick Reference Guide...
Set Parameters of Serial Port 2 (COMB). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). OFP-21W38 Quick Reference Guide 69...
3.6.2.7.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.7.2 Serial Port 2 Configuration 70 OFP-21W38 Quick Reference Guide...
UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.7.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.7.4 Serial Port 4 Configuration OFP-21W38 Quick Reference Guide 71...
Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.7.5 Serial Port 5 Configuration Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). 3.6.2.8 EC 8528 H/W monitor 72 OFP-21W38 Quick Reference Guide...
Fixed Time hr::min::sec specified. Select DynamicTime, Dynamic Time System will wake on the current time + Increase minutes(s). 3.6.2.10 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled OFP-21W38 Quick Reference Guide 73...
3.6.2.11 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. Item Options Description 1 sec The time-out value for Control, Bulk, and Interrupt USB transfer time-out 5 sec transfers. 10 sec 74 OFP-21W38 Quick Reference Guide...
Mass Storage Devices Forced FDD Hard Disk drives with no media will be emulated according CD-ROM to a drive type. 3.6.2.12 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] OFP-21W38 Quick Reference Guide 75...
Enable/Disable SATA Port 1 DevSlp. For DevSlp to work, both hard drive and SATA Disabled port need to support DevSlp function, SATA Port 1 DevSlp Enabled[Default], otherwise an unexpected behaviour might happen. Please check board design before enabling it. OFP-21W38 Quick Reference Guide 83...
= HDA will be unconditionally disabled Enabled = Enabled[Default], HDA will be unconditionally enabled. 3.6.3.3 Board & Panel Configuration Item Option Description Active Internal Disabled Active Panel LVDS(eDP->Ch7511-to-LVDS). [Enabled] Enabled[Default] Load vbt with EDP(7511) [Disabled] load 84 OFP-21W38 Quick Reference Guide...
Page 85
Disabled[Default], 30 sec 40 sec 50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Enabled/Disabled USB Standby Power USB Standby Power Enabled[Default], during S3/S4/S5 Amplifier Gain 2W[Default], Amplifier Gain OFP-21W38 Quick Reference Guide 85...
OFP-21W38 Disabled[Default], SHOW DMI INFO SHOW DMI INFO Enabled 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 86 OFP-21W38 Quick Reference Guide...
Secure Boot mode options: Standard or Custom. Standard[Default] In Custom mode, Secure Boot Policy variables Secure Boot Mode Custom can be configured by a physically present user without full authentication 3.6.5 Boot OFP-21W38 Quick Reference Guide 87...
Select the Keyboard NumLock state Disabled[Default] Enables or disables Quiet Boot option Quiet Boot Enabled Boot Option #1 Set the system boot order. Boot Option #2 Set the system boot order. 3.6.6 Save and exit 88 OFP-21W38 Quick Reference Guide...
Reset system setup without saving any changes. 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. OFP-21W38 Quick Reference Guide 89...
OFP-21W38 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 90 OFP-21W38 Quick Reference Guide...
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. OFP-21W38 Quick Reference Guide 91...
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Start. Step 1. Click Begin installation. Step 4. Click Reboot now. Step 2. Click Next to accept license agreement. 92 OFP-21W38 Quick Reference Guide...
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 4. Click Finish to complete setup. Step 1. Click Next to continue setup. Step 2. Click Next. OFP-21W38 Quick Reference Guide 93...
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click Next to Install. Step 2. Click Finish to complete setup. 94 OFP-21W38 Quick Reference Guide...
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Yes. Step 2. Click Next. Step 5. Click Install. OFP-21W38 Quick Reference Guide 95...
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 1. Click Next to continue installation. Step 2. Click Next. OFP-21W38 Quick Reference Guide 97...
C:\ and execute the file Step 1. Copy file: Step 4. it will generate Avalue folder. “AscendingSortNetworkAdapterByMac.zip” to C:\ Step 5. Step 2. Unzip file: Click and enter C:\Avalue\EMX-TGLP folder , “AscendingSortNetworkAdapterByMac.zip” execute administratoramode “ExecuteAscendingSortNetworkAdaptersX64.bat”. 98 OFP-21W38 Quick Reference Guide...
Page 99
Restart. Step 7. Ethernet1=>INTEL I219LM Ethernet2=>INTEL I225IT Ethernet3=>INTEL I210 Ethernet4=>INTEL I210 Note: If customer would like to patch LAN order sequence, please refer to Avalue website for EMX-TGLP Sort Network Adapter By Mac Address. OFP-21W38 Quick Reference Guide 99...
OFP-21W38 5. Development Resource Here you can find development resource for OFP-21W38 Datasheet LCD Datasheet(eDP) Touch Screen Datasheet Adapter Datasheet CE/FCC test Report (Product Design Verification Report) Here you can find information for Software development How to flash Android image file...
