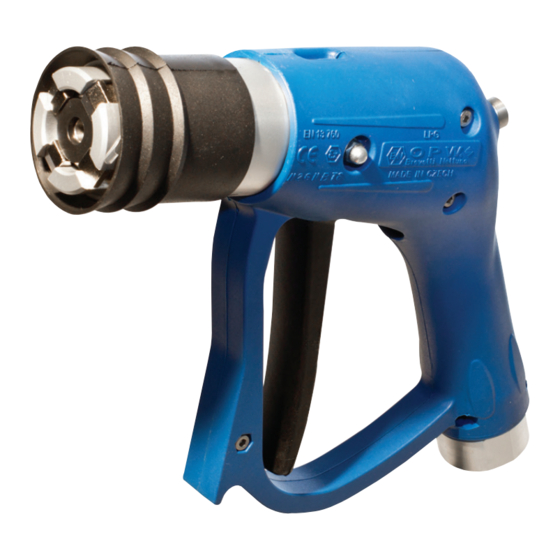

LPG FUELING NOZZLES BY OPW ™
INSTALLATION AND MAINTENANCE INSTRUCTION FOR QUALIFIED TECHNICIANS
OT, OTA & BNA SERIES NOZZLES
GENERAL ........................................................................................................................................................................... Page 2
SAFETY .............................................................................................................................................................................. Page 2
INSTALLATION ................................................................................................................................................................. Page 3
OPERATION ...................................................................................................................................................................... Page 4
MAINTENANCE ................................................................................................................................................................ Page 5
SPARE PARTS .................................................................................................................................................................... Page 6
WARRANTY ....................................................................................................................................................................... Page 7
REVISION HISTORY.......................................................................................................................................................... Page 7
Complies to standards: ECER67, EN13463, EN13760, 94/9/CE/ATEX
For use with OPW fueling nozzles OT300 models, OTA-300 models and BNA-300 models
Italian style coupling and OT321 1"G x 3/4"G adaptor
SITE NAME:
ADDRESS:
NOZZLE SERIAL NUMBER:
INSTALLATION CONTRACTOR:
THIS MANUAL MUST BE LEFT WITH FACILITY MANAGEMENT
Please visit OPW's website: www.opwglobal.com for further information
KPTI011-EN rev 201 -0 -1
1
Advertisement
Table of Contents
Related Manuals for Dover OPW OT Series
Summary of Contents for Dover OPW OT Series
-
Page 1: Table Of Contents
KPTI011-EN rev 201 -0 -1 LPG FUELING NOZZLES BY OPW ™ INSTALLATION AND MAINTENANCE INSTRUCTION FOR QUALIFIED TECHNICIANS OT, OTA & BNA SERIES NOZZLES GENERAL ................................... Page 2 SAFETY ....................................Page 2 INSTALLATION ................................. Page 3 OPERATION ..................................Page 4 MAINTENANCE ................................ -
Page 2: General
GENERAL/SAFETY KPTI011-EN rev 201 -0 -1 1. GENERAL The LPG fueling nozzles are designed to be used for filling LPG vehicles in an operating temperature range of -40°C to 85°C (-40°F to 185°F). Nozzle type Receptacles type Lock release type OT300 models Italian type dish coupler Button on side of lever... -
Page 3: Installation
INSTALLATION KPTI011-EN rev 201 -0 -1 3. INSTALLATION The inlet and seal for these self-service nozzles are as follows: Nozzle Inlet OT300 models OTA-300 models 1” Gas (1”-11 BSPP) In compliance with ISO 228-1 BNA-300 models All O-rings are suitable for use in LPG environments at stated operating temperature. Adaptor Inlet Outlet... -
Page 4: Operation
INSTALLATION/OPERATION KPTI011-EN rev 201 -0 -1 7. After installation, test the unit for leaks. The lever should be cycled a few times. Pressurize and test connection using a suit- able leak detection. Test pressure should include low pressure, under 5 bar (75 psi) and up to the maximum service pressure of 24 bar (350 psi). -
Page 5: Maintenance
OPERATION/MAINTENANCE KPTI011-EN rev 201 -0 -1 13. After lock latch is released, push or allow lever to move forward. 14. After the latch is released the nozzle can be pulled straight back and out of dish coupler. Nozzle can be returned back to restore position. -
Page 6: Spare Parts
SPARE PARTS KPTI011-EN rev 201 -0 -1 6. SPARE PARTS For OT/OTA nozzles (For OTA only) For BNA nozzles Please visit OPW’s website: www.opwglobal.com for further information... -
Page 7: Warranty
WARRANTY/REVISION HISTORY KPTI011-EN rev 201 -0 -1 7. PRODUCT WARRANTY OPW warrants that products sold by it are free from defects in materials and workmanship for a period of one (1) year from the date of shipment by OPW. As the exclusive remedy under this limited warranty, OPW, will at its sole discretion, repair, replace or issue credit for future orders for any product that may prove defective within the one year period. - Page 8 KPTI011-EN rev 201 -0 -1 Please visit OPW’s website: www.opwglobal.com for further information Please visit OPW’s website: www.opwglobal.co t he her i n fo atio t io...
