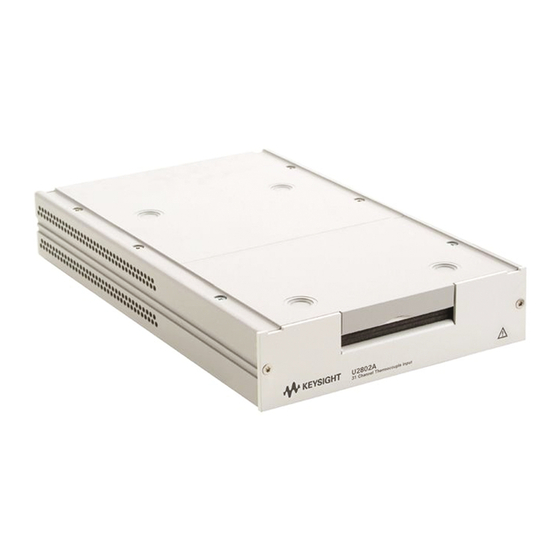

- Page 1 Keysight U2802A 31-Channel Thermocouple Input Device Quick Start Guide...
- Page 4 FAR 27.401 or DFAR 227.7103-5 (c), as applicable in any Do not proceed beyond a WARNING technical data. notice until the indicated conditions are fully understood and met. Keysight U2802A Quick Start Guide...
-
Page 5: Safety Symbols
Equipment protected throughout by double insulation or reinforced Caution, risk of electric shock insulation Caution, hot surface Caution, risk of danger (See note.) In position of a bi-stable push control Out position of a bi-stable push control Keysight U2802A Quick Start Guide... -
Page 6: Safety Information
– Do not operate the device with the removable cover removed or loosened. – Do not connect any cables and terminal block prior to performing self-test process. – Use only the power adapter supplied by the manufacturer to avoid any unexpected hazards. Keysight U2802A Quick Start Guide... - Page 7 – If the device is used in a manner not specified by the manufacturer, the protection provided by the device may be impaired. – The U2802A can only be used with U2355A or U2356A DAQs and used with the SCSI cables provided.
-
Page 8: Regulatory Markings
This product complies with the (2002/ The RCM mark is a registered 96/EC) marking equipment. The affixed trademark of the Australian product label indicates that you must Communications and Media Authority. not disgard this electrical/electronic product in domestic household waste. Keysight U2802A Quick Start Guide... -
Page 9: Table Of Contents
........28 H. Connect Your U2802A to DAQ . - Page 10 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U2802A Quick Start Guide...
- Page 11 List of Figures Figure 1-1 U2802A installation flowchart ....19 Keysight U2802A Quick Start Guide...
- Page 12 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight U2802A Quick Start Guide...
-
Page 13: Introduction To Keysight U2802A
(DAQ) device (± 10 V). Keysight U2802A thermocouple is to be used in conjunction with the U2355A and U2356A model DAQ to enable a wide range of sensor input measurements. -
Page 14: Standard Purchase Items Checklist
Standard Purchase Items Checklist Inspect and verify that you have all the following items upon standard purchase of U2802A 31-channel thermocouple input device. If there are missing items, contact the nearest Keysight Sales Office. ✔ Keysight U2802A 31-channel thermocouple input device ✔... -
Page 15: Product Overview
Product Overview Product Outlook Top View Connector 1 Connector 2 Detachable Cover Front View Railing Guide Strain Release Assembly U2802A 31-Channel Thermocouple Input Footer Keysight U2802A Quick Start Guide... - Page 16 Side View Ventilation Holes Bottom View Keysight U2802A Quick Start Guide...
-
Page 17: General Specifications
– 2 x 68-pin female SCSI connector – 2 x 34-pin screw terminal block – 1 x 24 pin screw terminal block DIMENSIONS (WxDxH) – 159.7 mm x 254.2 mm x 40.5 mm WEIGHT – 1.036 KG WARRANTY – Three years Keysight U2802A Quick Start Guide... -
Page 18: Installations And Configurations
Installations and Configurations The U2802A is used in conjunction with the U2355A and U2356A DAQ. If you are using the U2300A Series with the Keysight Measurement Manager, follow the step-by-step instructions as shown in the following flowchart. – If you do not wish to specifically use the U2300A Series with the Keysight... - Page 19 D. Install the DAQ Hard ware Driver E. Install the Keysight Measurement Manager F. Connect Your DAQ Device to the PC G. Hard ware Verification H. Connect Your U2802A to DAQ I. Launch Your Keysight Measurement Manager Figure 1-1 U2802A installation flowchart...
-
Page 20: Check Your System Requirements
Toolkit 2.1 Runtime version , Keysight T&M Toolkit Redistributable Package 2.1 patch , Microsoft .NET Framework version 1.1 and 2.0 [1] Available in Keysight Automation-Ready CD. [2] Bundled with Keysight Measurement Manager application software installer. Keysight U2802A Quick Start Guide... -
Page 21: Check Your Pre-Installed Io Libraries Suite
1 Right-click IO Control icon on your taskbar notification area and the context menu will appear as shown below. Select About Keysight IO Control. 2 Keysight IO Control window will appear and the version of installed IO Libraries Suite will be displayed as shown below. Keysight U2802A Quick Start Guide... - Page 22 Driver. iii. If Keysight IO Libraries Suite is not installed If you do not have IO Libraries Suite installed on your PC, go to C. Install the Keysight IO Libraries Suite Version 14.2 or Higher. Keysight U2802A Quick Start Guide...
-
Page 23: Install The Keysight Io Libraries Suite Version 14.2 Or Higher
The Keysight IO Libraries Suite 14.2 is available in the Keysight Automation-Ready CD that comes with the standard purchase of Keysight U2300A Series USB Multifunction Data Acquisition Devices or U2802A 31-Channel Thermocouple Input. – If you do not have the Keysight Automation-Ready CD, obtain the Keysight IO NOTE Libraries Suite 14.2 or higher at http://www.keysight.com/find/iolib. -
Page 24: Install The Daq Hardware Driver
3 If the installation menu does not appear after a few seconds, go to Start > Run and type <drive>:\Application\Modular Instruments Measurement Manager\setup.exe, where drive is your CD-ROM drive. 4 Click OK to begin installation. Keysight U2802A Quick Start Guide... - Page 25 7 Once the above installation is completed, installation of the Keysight Measurement Manager software will proceed as normal 8 The Keysight Measurement Manager InstallShield Wizard dialog box will appear as shown below. Click Next to begin. Keysight U2802A Quick Start Guide...
- Page 26 License Terms for reference. Click Next to proceed. 10 Fill in the Customer Information form, as shown below, accordingly and click Next. 11 Click Next to install to the folder specified or click Change to install to a different folder. Keysight U2802A Quick Start Guide...
- Page 27 LICENSE TERMS. IF YOU DO NOT AGREE TO ALL OF THESE TERMS, YOU MAY RETURN ANY UNOPENED LICENSED MATERIALS FOR A FULL REFUND. IF THE LICENSED MATERIALS ARE BUNDLED OR PRE-LOADED WITH ANOTHER PRODUCT, YOU MAY RETURN THE ENTIRE UNUSED PRODUCT FOR A FULL REFUND. Keysight U2802A Quick Start Guide...
-
Page 28: Connect Your Daq Device To The Pc
NOTE User’s Guide for “Connect Your DAQ Device to PC” procedure. The bundled power supply splitter in U2802A is used to allow powering both the U2802 and U2355/56A DAQ with a single DC power adapter which has been supplied with the DAQ. -
Page 29: Launch Your Keysight Measurement Manager
1 Double-click the Keysight Measurement Manager software icon on your desktop or go to Start > All Programs > Keysight > Measurement Manager > Keysight Measurement Manager to launch the software. 2 The Keysight Measurement Manager welcome screen will appear as shown below. Keysight U2802A Quick Start Guide... - Page 30 To start the application, select a DAQ device and click OK to establish the connection. For more information on how to use the Keysight Measurement Manager, refer to NOTE the Keysight Measurement Manager Help File. Keysight U2802A Quick Start Guide...
- Page 31 This information is subject to change without notice. Always refer to the Keysight website for the latest revision. © Keysight Technologies 2008-2017 Edition 3, July 1, 2017 Printed in Malaysia *U2802-90024* U2802-90024 www.keysight.com...
