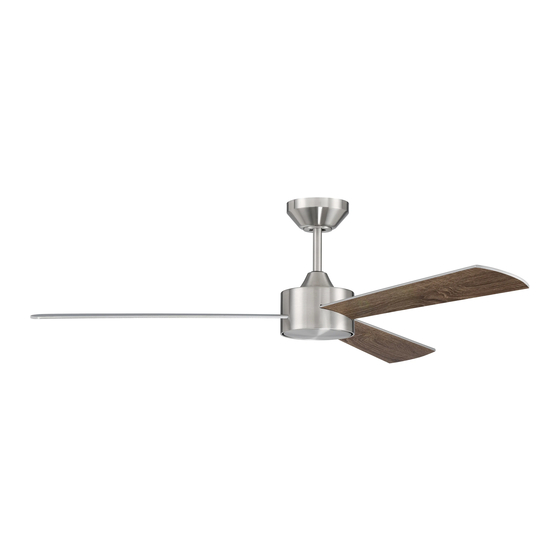

Provision
Installation Guide
For Model:
PRV52
WARNING:
DC Motor will not
operate until blades
are installed
4007498
net weight of fan: 9,04 lb (4,1 kg)
READ THESE INSTRUCTIONS AND

Table of Contents:

Wiring. pg. 8
Warranty. pg. 14
page 1
SAVE THEM FOR FUTURE USE
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Provision PRV52 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade Provision PRV52

Summary of Contents for Craftmade Provision PRV52

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Provision Installation Guide Table of Contents: For Model: Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 PRV52 Parts Inventory. pg. 4 Installation Preparation. pg. 5 Hanging Bracket Installation. pg. 5 Fan Assembly.
  • Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan ON and OFF.

  • Page 3: Safety Tips

    * Consult the dealer or an experienced radio/TV technician for help. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 4: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.

  • Page 5: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) clearance of 7 feet (2.13m) from the floor and (2.13m) 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 12ft - 20ft (3.66m - 6.1m)

  • Page 6: Fan Assembly. Pgs

    5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin hanging ball and clip. Lower hanging ball and remove stop pin. Slide hanging ball off of the downrod. [Refer to clip diagram 1.] diagram 1...
  • Page 7 5. Fan Assembly. (cont.) safety cable loop With the hanging bracket secured to the outlet wood ceiling box and able to support the fan, you are now joist ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in wood screw hanging bracket and let hanging ball rest on the and washer...

  • Page 8: Wiring

    6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure switch is turned to the OFF position. white supply wire CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or Bare) is ground (green black supply wire or bare)

  • Page 9: Blade Assembly

    8. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If screws are overtightened, blades may crack and break. (view from underside) Time Saver: Washers for blade attachment motor housing screws can be set on each screw prior to installing blades.

  • Page 10: Automated Learning Process./Activating Code

    10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other REMOTE CONTROL (back) programmable receiver or fan. Remove battery cover on back side of remote control transmitter.

  • Page 11: Remote Control Operation

    11. Remote Control Operation REMOTE CONTROL I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control fan direction LIGHTING button--4: Use to control down-light and up-light (not applicable for this fan) IMPORTANT : The Automated Learning Process takes approximately 5 minutes to complete.

  • Page 12: Smart Ceiling Fan Wi-Fi Control

    12. Smart Ceiling Fan Wi-Fi Control. (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.

  • Page 13: Testing Your Fan

    13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control. If the remote control do (does) not operate all of the fan functions, refer to "Troubleshooting"...

  • Page 14: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure fan is wired properly. Return fan, shipping prepaid, to Craftmade. We will repair 3. Learning process between fan and remote or ship you a replacement fan, and we will pay the return shipping cost.
