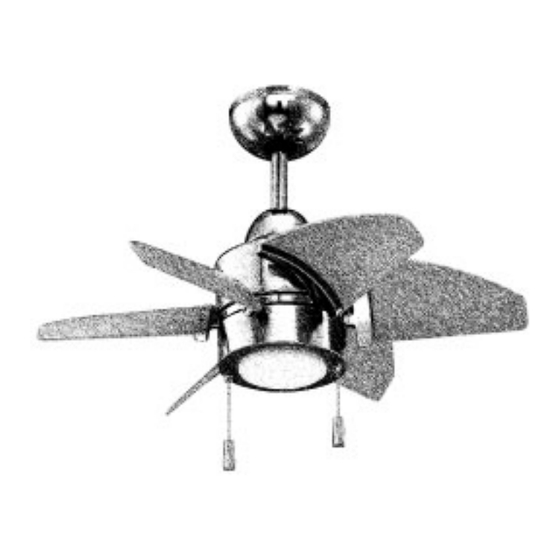

Propel II
Installation Guide
For Model:
PPT24
4007498
LISTED FOR
DAMP LOCATION
net weight of fan: 11.60 lb (5.26 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pg. 7
Canopy Assembly. pg. 8
Blade Assembly. pg. 8
Light Kit Assembly. pg. 9
Testing Your Fan. pg. 10
Troubleshooting. pg. 11
Warranty. pg. 11
page 1
PRINTED IN CHINA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Craftmade Propel II
Summary of Contents for Craftmade Propel II
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Propel II Installation Guide For Model: PPT24 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly. -
Page 2: Safety Tips
Light kit is dimmable to 10%. Distributed by: Craftmade, 3901 S 20 Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches the hanging location allows the blades a clearance of (76cm) 7 feet (2.13m) 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 8ft. -
Page 5: Fan Assembly. Pgs
5. Fan Assembly. set screw stop pin Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin hanging ball and clip. Lower hanging ball and remove stop pin. Then slide hanging ball off downrod. [Refer to diagram 1.] clip diagram 1... - Page 6 5. Fan Assembly. (cont.) wood ceiling joist With the hanging bracket secured to the outlet box safety cable loop and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
-
Page 7: Wiring
6. Wiring. white supply wire ground WARNING: Turn off circuit breakers to current (green or bare) black supply wire fixture from breaker panel and be sure switch is turned to the OFF position. from wire CAUTION: Be sure outlet box is properly ceiling connector black... -
Page 8: Canopy Assembly
7. Canopy Assembly. hanging Locate 2 screws on underside of hanging bracket bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and canopy push up. -
Page 9: Light Kit Assembly
9. Light Kit Assembly. motor housing Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. Align slotted holes in center of fitter plate with loosened screws in motor plate, allowing motor plate male plug from motor housing to come fitter plate through hole in middle of fitter plate. -
Page 10: Testing Your Fan
10. Testing Your Fan. It is recommended that you test fan before motor housing finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain labeled FAN. Start at the OFF position (no blade movement). -
Page 11: Troubleshooting
Troubleshooting. Warranty. WARNING: Failure to disconnect power supply CRAFTMADE LIMITED LIFETIME WARRANTY: CRAFTMADE warrants this fan for use as intended prior to troubleshooting any wiring issues may under the following provision: CRAFTMADE will result in serious injury. replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate Problem: Fan fails to operate.
