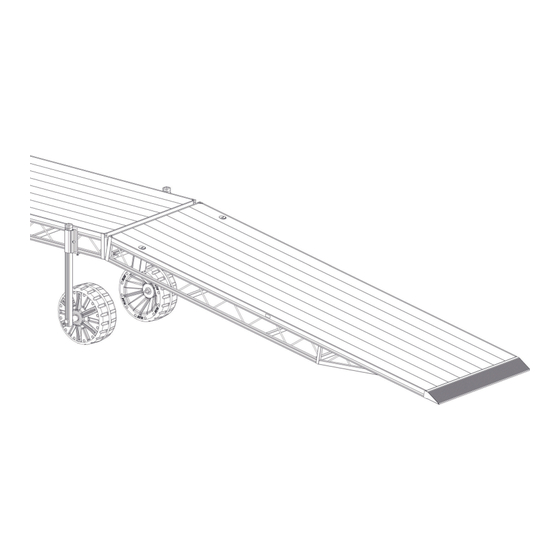

- Page 1 ASSEMBLY INSTRUCTIONS SHOREWAY QUICK PIVOT QUICK ATTACH ROLL-IN DOCKS For more information, go to the owner support tab on the FLOE website *DOCK SECTION & SHORE END WHEEL KIT NOT INCLUDED TOOLS REQUIRED •(2) 9/16” SOCKETS/WRENCHES •TORQUE WRENCH...
- Page 2 QUICK ATTACH SHOREWAY QUICK PIVOT NUMBER PART NUMBER QTY. DESCRIPTION 110-09100-00 ASS’Y, QA ROLL-IN SHOREWAY QUICK PIVOT 001-26729-00 PIN, QUICK RELEASE W/ RING GRIP 2-3/4” LONG 001-70114-00 HHCS, 3/8-16 X 2-3/4” 18-8 SS 001-71017-00 FLAT WASHER, 3/8” SAE 18-8 SS 001-76349-00 NUT, 3/8-16 ALUM.
- Page 3 INSTALLATION INSTALL THE QUICK PIVOT ON THE END OF THE DOCK/SHOREWAY WITHOUT SUPPORTS AS SHOWN (EXAMPLE: IF THE DOCK SECTION THAT THE SHOREWAY IS CONNECTING TO HAS A WHEEL KIT ON THE END WHERE THE ATTACHING SHOREWAY IS TO BE, BOLT QUICK PIVOT TO SHOREWAY) (FIGURE 1.1).
- Page 4 REFER TO THE FIGURES BELOW FOR POSITIONING OF THE QUICK PIVOT. IF THE SHOREWAY IS ANGLED DOWN, MAKE SURE THE END THAT IS INSERTED INTO QUICK PIVOT IS TO THE INNER PORTION OF THE QUICK PIVOT. IF THE SUPPORTS ARE ON THE SHOREWAY, REVERSE THE ORIENTATION OF THE QUICK PIVOTS.
- Page 5 REFER TO THE FIGURES BELOW FOR POSITIONING OF THE QUICK PIVOT. IF THE SHOREWAY IS ANGLED UP, MAKE SURE THE END THAT IS INSERTED INTO QUICK PIVOT IS TO THE OUTER POR- TION OF THE QUICK LOOP. IF THE SUPPORTS ARE ON THE SHOREWAY, REVERSE THE ORIENTATION OF THE QUICK PIVOTS.
- Page 6 NOTES...
- Page 7 NOTES...
- Page 8 FLOE INTERNATIONAL, INC. 48473 STATE HIGHWAY 65 • McGREGOR, MN 55760 www.fl oeintl.com All material copyright © 2022 FLOE International, Inc. Specifi cations subject to change without notice. P/N 610-08100-00 10/13/22...
