Dräger Medical CF 800 Technical Documentation Manual

For continuous flow cpap therarpy
Hide thumbs

Advertisement

Quick Links

Download this manual

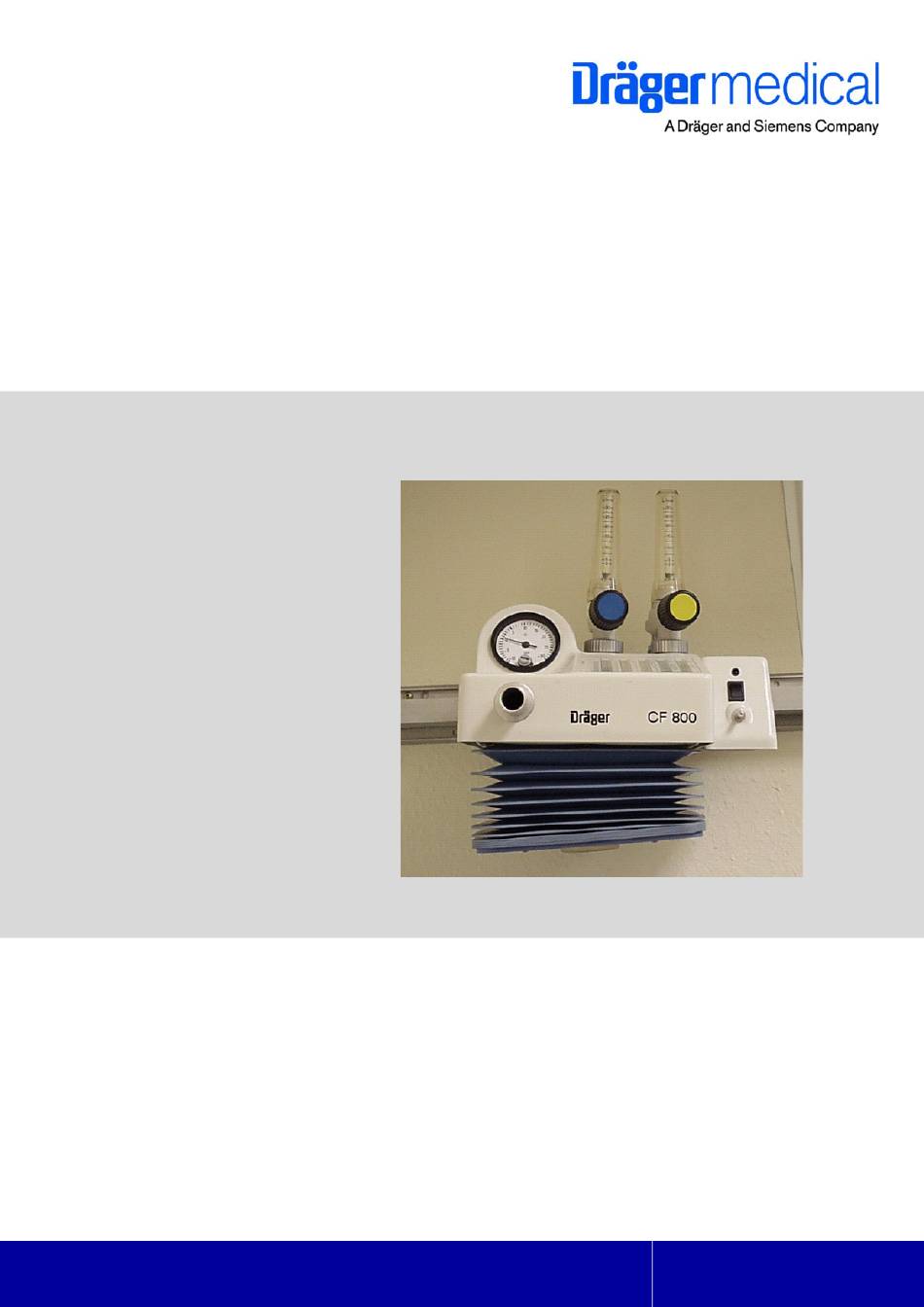

Technical Documentation
CF 800
for Continuous Flow CPAP Therarpy
Revision 2.0
5682
9036076
Because you care
Emergency Care • Perioperative Care • Critical Care • Perinatal Care • Home Care

Advertisement

loading
Need help?

Need help?

Do you have a question about the CF 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dräger Medical CF 800

Summary of Contents for Dräger Medical CF 800

  • Page 1 Technical Documentation CF 800 for Continuous Flow CPAP Therarpy Revision 2.0 5682 9036076 Because you care Emergency Care • Perioperative Care • Critical Care • Perinatal Care • Home Care...

  • Page 3: Table Of Contents

    Contents General Notes Symbols and Definitions ......................4 Function Description General Intended use Monitoring Annex Parts catalog Test List...
  • Page 4 Contents...
  • Page 5 General...

  • Page 7: General

    CF 800 General Notes This Technical Documentation conforms to the IEC 60601-1 standard. Read each step in every procedure thoroughly before beginning any test. Always use the proper tools and specified test equipment. If you deviate from the instructions and/or recommendations in this Technical Documentation, the equipment may operate improperly or unsafely, or the equipment could be damaged.

  • Page 8: Symbols And Definitions

    General CF 800 Symbols and Definitions This symbol indicates a warning. This symbol indicates tips and useful information. This symbol is used to alert against unsafe practices when handling electrostatic sensitive devices (ESD). Definitions according to German standard DIN 31051:...

  • Page 9: Function Description

    Function Description...

  • Page 11: General

    CF 800 Functional Description General Air and O2 passes via the filter 1 and 2 into the corresponding flowmeters with metering valve 3 and 4. With the aid of the reference list the required O2 concentration is dajusted (with the proportion of the flow amount O2: air).

  • Page 12: Intended Use

    Intended use CF800 is a device for the application of respiratory therapeutical measures with continuously positive airway pressure.The device schould only be applied on patients with spontaneous breathing.The CPAP system CF 800 is a compact unit consisting of: – Aquapor for the heating and humidifiering of the breathing air –...
  • Page 13 CF 800 Functional Description Compliance of the reser- 400 mL/mbar voir Max. pressure variations +/- 2 mbar at flow > 1.5 x volume per minute Safety valve limits the airway pressure to max. 30 mbar Emergency air valve opens at a low pressure of 0.4 mbar, makes it...
  • Page 14 Functional Description CF 800 5682...

  • Page 15: Annex

    Annex Parts catalog Test List...
  • Page 17 Parts catalog CF 800 Revision: 2005-06-08 11:19:33 5682.000 Because you care Emergency Care - Perioperative Care - Critical Care - Perinatal Care - Home Care...
  • Page 19 CF 800 1.000 8409400 CF 800 (CPAP DEVICE) 1.000 8410130 CF 800 P (PAED. CPAP DEVICE) 1.000 Items that are shown in the illustration but are not listed below the illustration are not available as spare parts Revision: 2005-06-08 11:19:33 5682.000...
  • Page 20 Parts catalog Accessories/Consumables Item Qty. Part No. Description Qty. Remark unit 8409400 CF 800 (CPAP DEVICE) 1.000 8409645 ONE-WAY PATIENT CONNECTION 1.000 part 2.1; 2.2.3; 2.3.3; 2.4.3 and 2.5.3 8407571 HOSE SET, DISPOSABLE 1.000 2.2.3 8290274 ANGLE SOCKET ISO 1.000 2.3.3...
  • Page 21 Parts catalog Accessories/Consumables Item Qty. Part No. Description Qty. Remark unit 10.3 8402868 BACTERIA FILTER 1.000 10.4 1190520 HOSE 4X1,5-SI 50 SH A NF 1.000 10.5 8400904 TAPER ADAPTER 1.000 8405000 MEDICAMENT NEBULIZER (PNEU) 1.000 12.1 8405029 PATIENT PART (AQUAPOR) 1.000 12.2 8403345...
  • Page 22 Parts catalog Concerned Devices Item Qty. Part No. Description Qty. Remark unit 8414700 Aquapor EL, Humidifier 1.000 Items that are shown in the illustration but are not listed below the illustration are not available as spare parts Revision: 2005-06-08 11:19:33 5682.000...
  • Page 23 Parts catalog Accessories Aquapor EL Item Qty. Part No. Description Qty. Remark unit 8414699 Heating Top 1.000 8414700 Aquapor EL, Humidifier 1.000 8404739 TROUGH 1.000 8405029 PATIENT PART (AQUAPOR) 1.000 8404738 FLOAT 1.000 8404741 LIP SEAL 1.000 8406135 REP.SET COVER (AQUAPOR) 1.000 1190520 HOSE 4X1,5-SI 50 SH A NF...
  • Page 24 Parts catalog Hose Set Adults Item Qty. Part No. Description Qty. Remark unit 8414699 Heating Top 1.000 8405029 PATIENT PART (AQUAPOR) 1.000 8-10 8403345 SET OF SPARE BRACKETS 1.000 8405371 TEMPERATURE SENSOR 1.000 2165627 BREATHING HOSE E 60CM 3.000 15-26 8412092 ADULT HOSE SET, AQUAPOR 1.000 8404985...
  • Page 25 Parts catalog Hose Set Adults Item Qty. Part No. Description Qty. Remark unit 8402041 CORRUGATED HOSE 1.000 8403685 SET 12 STAND. CONE A PLASTIC 12.000 different types from size 6 to 12 8403076 ADAPTER E 1.000 8402918 SET OF 5 CAPS (8401644) 5.000 Items that are shown in the illustration but are not listed below the illustration are not available as spare parts Revision: 2005-06-08 11:19:33...
  • Page 26 Hose Set Children Aquapor Parts catalog Item Qty. Part No. Description Qty. Remark unit 8414699 Heating Top 1.000 8405029 PATIENT PART (AQUAPOR) 1.000 8-10 8403345 SET OF SPARE BRACKETS 1.000 2165856 BREATHING HOSE K 22/10 0,4M 2.000 27-36 8412344 PAED HOSE SET, AQUAPOR 1.000 2165848 BREATHING HOSE K 10/10 0,6M...
  • Page 27 Flowmeter Air Parts catalog Item Qty. Part No. Description Qty. Remark unit 1-11 8409452 FLOWMETER 30L/MIN, 5BAR 1.000 Items that are shown in the illustration but are not listed below the illustration are not available as spare parts 5682.000 Revision: 2005-06-08 11:19:33...
  • Page 28 Flowmeter O2 Parts catalog Item Qty. Part No. Description Qty. Remark unit 8409445 O2 FLOWMETER 30L/MIN, 5BAR 1.000 Items that are shown in the illustration but are not listed below the illustration are not available as spare parts 5682.000 Revision: 2005-06-08 11:19:33...
  • Page 29 Accessories/Consumables ALCALI-BATTERY,9 V 1335812 ANGLE SOCKET ISO 8290274 AQUAPOR SUPPORT FOR RAIL 8409450 BACTERIA FILTER 8402868 CF 800 (CPAP DEVICE) 8409400 CORRUGATED HOSE 8402041 HINGED ARM 240-DEGR. 8409609 HOSE 4X1,5-SI 50 SH A NF 1190520 HOSE CLAMP FOR HINGED ARM...
  • Page 30 CF 800 Parts catalog Assembly Description Part No. Concerned Devices Aquapor EL, Humidifier 8414700 Flowmeter Air FLOWMETER 30L/MIN, 5BAR 8409452 Flowmeter O2 O2 FLOWMETER 30L/MIN, 5BAR 8409445 Heating Top Heating Top 8414699 Hose Set Adults ADAPTER E 8403076 ADULT HOSE SET, AQUAPOR...
  • Page 31 Power cable DK, 3 m, 10 A 1844342 Power cable Great Britian 3m black 1844369 POWERCORD CH 3M 1844377 SUPPLY MAIN, 3M 1824481 Products Concerned CF 800 8414300 CF 800 (CPAP DEVICE) 8409400 CF 800 P (PAED. CPAP DEVICE) 8410130 5682.000 Revision: 2005-06...
  • Page 33 Test List CF 800 File no.: Serial no.: 5682 ————————— Installation site: Edition: ————————— 05.00 This Test List does not replace inspection and servicing by the manufacturer. Page 1 5682 CF 800...
  • Page 34 • Check the following elements for proper functioning, tightness, and condition: − Water separator − Y-piece − Hoses (see Instructions for Use manual) This Test List does not replace inspection and servicing by the manufacturer. Page 2 5682 CF 800...
  • Page 35 AIR readings Fit the flowmeters. Drug nebulizer supply • Connect the drug nebulizer port to a flowmeter. ± Reading 3.3 L/min 0.3 L/min This Test List does not replace inspection and servicing by the manufacturer. Page 3 5682 CF 800...
  • Page 36 • Close the flow-control valves. • Generate a negative pressure using the test lung. The emergency air valve should open at 0 to -0.5 mbar. This Test List does not replace inspection and servicing by the manufacturer. Page 4 5682 CF 800...
  • Page 37 Date: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Name: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ This Test List does not replace inspection and servicing by the manufacturer. Page 5 5682 CF 800...
  • Page 40 Manufacturer: Dräger Medical AG & Co. KG Moislinger Allee 53 – 55 D-23542 Lübeck Germany Phone: (++49) (0) 1805-3723437 Fax: (++49) 451/882 - 3779 Subject to change without notice Will not be replaced in the event of modifications. © Copyright by Dräger Medical AG & Co. KG, Lübeck, Germany. The warranty and liability conditions of the general terms and conditions for business transactions of Dräger Medical AG &...
