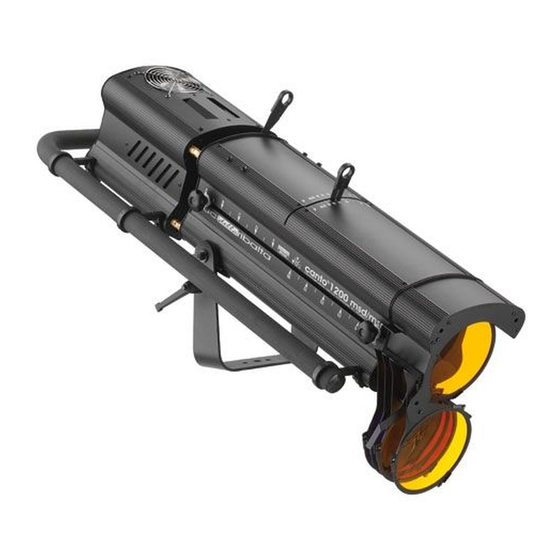

- Page 1 LDR Canto Followspot Service Manual for: Canto 250HR Canto 575, 700 and 1200msd/msr Canto 2000msr FF Canto 1200TH and 2000TH Issue 0612 Distribuited by: AMLUX s.r.l. 46042 Castel Goffredo (MN) - info@amlux.it - www.amlux.it...
- Page 2 Failing to do so might result in poor performance after servicing. 4. LDR declines any responsibility in case a wrong part is ordered. If you are not sure about the part you need please contact the LDR sales staff first for confirmation All rights reserved.
- Page 3 Canto 575msr + Canto 700msr at 230V and 250V G80578001 for Canto 575msr + Canto 700msr at 100V and 120V G8085700 for Canto 1200TH 230V + Canto 250HR G80857001 for Canto 1200TH at 120V G80858000 for Canto 1200msr at 230V and 250V...
- Page 4 LDR Canto Service Manual Section 1: Rear optical assembly Item: S80577016 Reflector + Aspherical lens holder Models: all models, all voltages Except for Canto 2000 msr FF Item: S80908016 Reflector + Aspherical lens holder Models: Canto 2000 msr FF Item: R80SP0068 Glass reflector ø68mm R40...
- Page 5 LDR Canto Service Manual Section 1: Rear optical assembly Item: R80MM5775 Spacer reflector/aspherical lens F/F M4 L.42mm Models: Canto 250HR + Canto 575, 700, 1200TH all voltages Item: R80577015 Aspherical lens holder Models: all models, all voltages except for Canto 2000 msr FF...
- Page 6 LDR Canto Service Manual Section 1: Rear optical assembly Item: S80577049 Aspherical lens blocking spring Models: all models at 100V and 120V Canto 2000TH 230V Item: R80577050 Closing ring for aspherical lens blocking spring Models: all models at 100V and 120V...
- Page 7 LDR Canto Service Manual Section 1: Rear optical assembly Item: S80577018 Condenser lens blocking ring Models: all models, all voltages except for Canto 2000 msr FF Item: S80852015 Condenser lens blocking ring Models: Canto 2000 msr FF Distribuited by: AMLUX s.r.l.
- Page 8 LDR Canto range servicing manual Section 2: front optical assembly The front optical group for Canto can be obtained as separate sub-assemblies without lenses. Lens- holders assemblies are the same throughout the whole Canto range. Lenses must be ordered separately depending on the model of Canto.
- Page 9 LDR Canto range servicing manual Section 2: front optical assembly Item: R80852031 Lens holder ø127mm - rear zoom assembly Models: all models, all voltages Item: R80LE4127 PCX lens ø127mm, R262 +2D Models: all models, all voltages except for Item: L80LE4127 PCX lens R262 +2D, tempered...
- Page 10 LDR Canto range servicing manual Section 2: front optical assembly Item: R80852034 Lens holder ø150mm - front zoom assembly Models: all models, all voltages Item: R80LE4150 PCX lens ø150mm, R262 +2D Models: all models, all voltages Item: R80852035 Lens blocking arc for ø150mm, front zoom...
- Page 11 LDR Canto Service Manual Section 3: Dowser assembly The dowser assembly for Canto, as below, can be obtained under the folowing part number G80FO5029 complete dowser assembly for Canto Distribuited by: AMLUX s.r.l. 46042 Castel Goffredo (MN) - info@amlux.it - www.amlux.it...
- Page 12 LDR Canto Service Manual Section 3: Dowser assembly Item: R80577024 Dowser mounting plate Models: all models, all voltages Item: R80MM5772 Dowser assembly aluminium sleeve Models: all models all voltages Item: S80FO5029 Dowser Models: all models, all voltages Item: R80577058 Dowser lever...
- Page 13 LDR Canto Service Manual Section 4: Ignition and ventilation Item: R80ME5783 On-off switch contact Models: all models, all voltages Item: R80ME5784 On off switch base Models: all models all voltages Item: R80ME5785 On-off switch Models: all models, all voltages Item: R80VE5770 Fan...
