istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de manejo
mode d'emploi
gebruiksaanwijzing

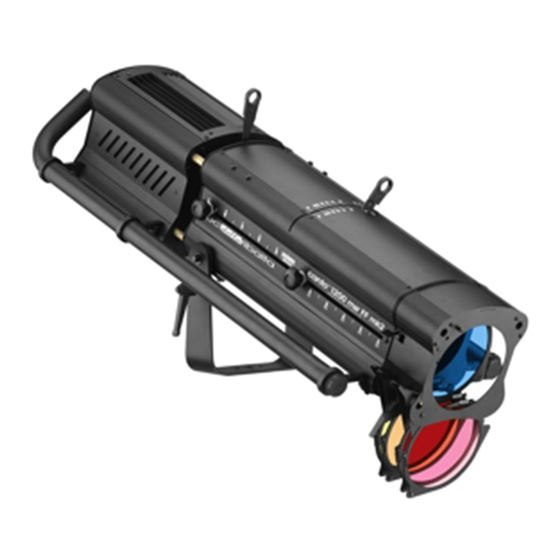

Canto 1200msr FF 230V mk2
10857580
Canto 1200msr FF 230V mk2
K10857580
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Related Manuals for LDR Canto 1200msr FF 230V mk2
Summary of Contents for LDR Canto 1200msr FF 230V mk2
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Canto 1200msr FF 230V mk2 10857580 Canto 1200msr FF 230V mk2 K10857580 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 ENGLISH – TABLE OF CONTENTS Important safety norms …………………………………………………………………….. page 2 1. Check packing content…………………………………………………………………. page 4 2. Mounting the spigot…………………………………………………..…….... page 4 3. Mounting the colour changer …………………………………………..…………… page 4 4. Mounting the iris diaphragm …………………………………………….………….. page 5 5. Shutter blades ………………………………………………………………………….…… page 5 6. Adjusting the yoke ……………………………………………………………………..…. page 5 7. Important notice before the installation/installation…………………….. page 6 8. Wiring ………….……………………………………………………………………………….. page 6 9. Voltage ………………………………………..…….………………………………………… page 7 10. Frequency …………………………………………………………………………………….. page 7 11. Fuse ………………………………………………………………………………………………. page 7 12. Mounting or replacing the lamp ………………………………………………….. ... -
Page 3: Important Safety Norms
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 ENGLISH Thanks for having chosen Luci della Ribalta srl. We hope our products and services meet your requirements, but should this not be the case, we kindly ask you to contact us directly to help us supply you and all our customers with better and better quality. The product you purchased has been manufactured with maximum care and selected components, but should you, for reasons beyond our control, have received it damaged, we kindly ask you to contact the dealer who ... - Page 4 LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 Replace the lamp, the reflector and the lenses if damaged or deformed by heat. Make sure the lamp is cold before attempting to remove it. To perform a correct installation of the lamp, please refer to the lamp manufacturer's instructions included in the lamp box and to the relevant chapters in this manual. Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and ...
-
Page 5: Check Packing Content
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 1. CHECK PACKING CONTENT Upon opening the packaging, please make sure it contains the following: A. In case you bought just the followspot – item #10857580 Canto 1200msr FF 230V MK2 1. luminaire: a. Followspot net weight kg 22.3 b. Iris diaphragm c. ø 28mm/1.12in spigot with M12 self locking nut and plain washer net weight kg 1.0 2. PSU: a. 230V separate electronic ballast unit net weight kg 7,5 B. In case you bought the complete kit – item #K10857580 packed in a flight‐case: a. Follow‐spot ... -
Page 6: Mounting The Iris Diaphragm
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 instructions supplied with the colour changer. Position the colour changer unit on the front plate of the follow spot, making sure that the colour levers are positioned on the right‐hand side of the follow spot when viewed from behind and hang it to the previously positioned screws. Release the colour filters of the colour changer in order to have access to the screws and tighten them. Ensure the colour changer unit is secure, and all three screws are tight. 4. MOUNTING THE IRIS DIAPHRAGM The iris diaphragm supplied with the followspot has 20 leaves to size the beam from a maximum aperture of 68mm/ 2.67in to a minimum of 5mm/0.19in. A black‐out iris diaphragm is available to special order. The iris diaphragm comes factory‐mounted already but should you for any reason need to fit or replace the iris diaphragm then Using a Phillips screw‐driver remove the two cross‐head screws from the sides of the iris plate. Slide the diaphragm in the gate area. Tighten the screws. Important notice: do not leave the iris closed for over 5 minutes while the lamp is on Use the front dowser to “cut off” the light should you require to have the lamp on with no beam projecting on the stage. FAILURE TO COMPLY WITH THE ABOVE NOTICE MAY CAUSE THE IRIS AND THE FOLLOWSPOT TO SUFFER MAJOR HEAT DAMAGES AND WILL INVALIDATE THE PRODUCT WARRANTY ... -
Page 7: Important Notice Before The Installation/Installation
This fixture is meant for tripod‐mount installation only. No hanging is allowed In case you need the followspot to be hung please contact your dealer or LDR as a special version for hanging is available on demand Before installing this fixture check its weight on the product label and the weight of each ... -
Page 8: Voltage
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Hot: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐... -
Page 9: Lamping The Followspot
Remove the panel. Remove the lamp (if operating a replacement) by holding the ceramic base and turning it until the lamp is dislodged Place the new lamp in by holding the ceramic base and turning it until the base is locked in position. A “click” should be heard. Re‐position the lamp holder panel by turning clockwise the two ¼ turn fasteners LDR declines any responsibility on poor performance of the unit or damages to the inner components in case the lamp has not been installed properly or a non compatible lamp is used 13. LAMPING THE FOLLOWSPOT Plug the follow spot to the electronic PSU and make sure the connector is safely clamped in Please note that each followspot has been factory tested with relevant PSU. Both units are recognized by a serial number on the outer box, on the units and on the front cover of the instruction manual. Make sure you match each followspot to the relevant PSU. ... -
Page 10: Lamp Alignment
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 Wait for a few seconds until the red light turns green Turn the on/off selector at the back of the luminaire to turn the lamp on WARNING: Failure to comply with the above ignition procedure may cause the followspot not to ignite or not to operate properly CAUTION: BEFORE OPENING THE FIXTURE, WAIT FOR 10 MIN AFTER THE LAMP HAS BEEN SWITCHED OFF 14. LAMP ALIGNMENT For an optimum performance of the followspot, lamp alignment must be checked and performed each time a new lamp is fitted or an old lamp is replaced. Please proceed as follows: Switch on the unit and project the beam on a flat surface (a wall, for example) at a short distance (0,5m / 3/6 ft approximately). Completely de‐focus the zoom so that you can see the lamp or its filaments projected on the surface. Close the dowser to a slightly bigger size than the height of the lamp. You should obtain a ... -
Page 11: Cleaning And Maintenance
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 The variable beam is modified by adjusting the front and rear zoom lenses in relation to each other. The front lens defines the beam spread, the rear lens defines the focus degree of ‘softness’ or ‘hardness’ of the beam edge or shutters. Gently turn the knobs anti‐clockwise until you have reached the desired size/focus of the beam in relation to the distance you are projecting at. Turn the knobs clockwise and tightly close them so that the lenses are held in position at any tilt angle Beam‐sizing: the size of the beam is controlled using the supplied iris diaphragm Beam‐shaping: 4 accessory shutter blades (see chapter 5. of this manual) can be fitted to shape the beam Beam‐dimming and black‐out: this followspot is fitted with an adjustable mechanical dimmer (dowser) to dim and finally black‐out the light. The black‐out mechanical dimmer is located ... -
Page 12: Spare Parts
LDR Canto 1200msr FF 230V MK2 User’s manual – 2.0 General maintenance * Clean all reflective parts such as reflectors, mirrors and lenses opening the product, if necessary. * Check the lamp and the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. Cleaning of optical components Lamphouse lenses: Open the lens compartment door by removing the two M4 cross head screws on the top of the lamphouse tube. Remove the lens/mirror assembled block by removing the two M5 cross head screws. Clean the lens/mirror with a soft cloth. Zoom lenses: Slide the front zoom door positioned on the bottom of the lens tube and clean with a soft cloth. 17. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order ... - Page 13 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 14 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 10857580 Canto 1200msr FF 230V mk2 Prodotto difettoso K10857580 Canto 1200msr FF 230V mk2 kit Faulty product Defekte s Produkt Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 15 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
