Sensear SP1R Quick Start Manual

WEARING THE HEADSET

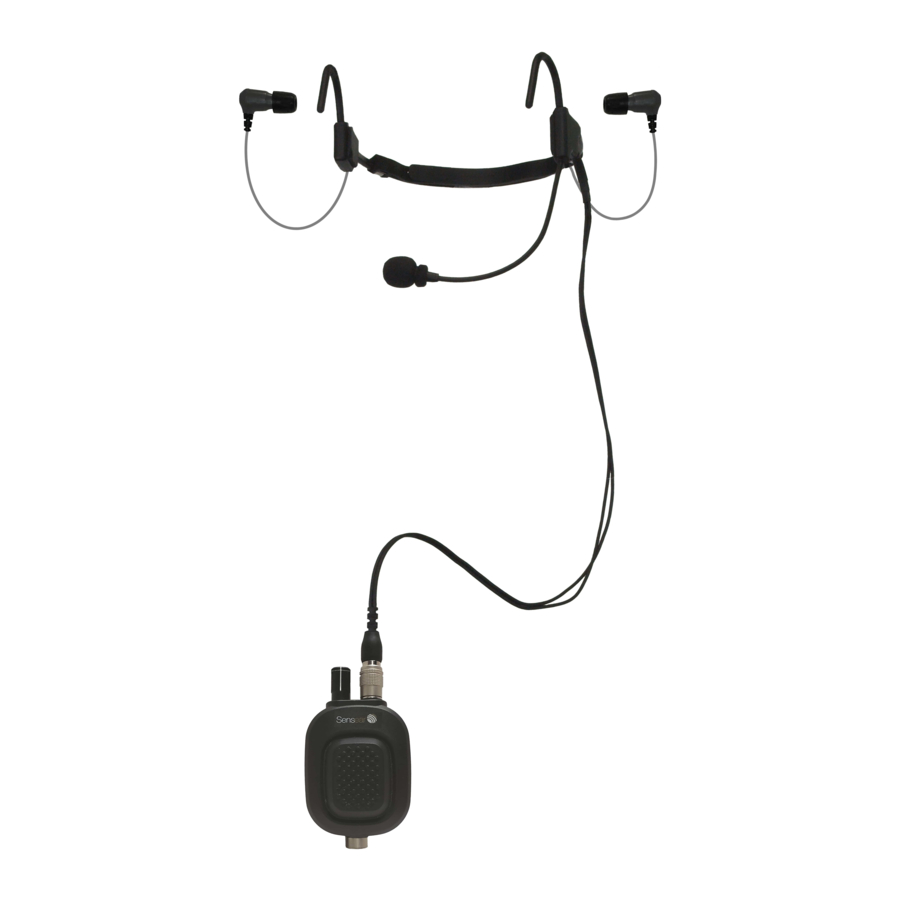

The SP1R is a state-of-the-art hearing protection communication
system that allows you to retain 360° situational awareness with our
patented processing technology while being in full contact with
all your communication devices. There is an intrinsically safe variant
of the product that meets international standards for use in explosive
gas environments.
The headset draws power from the two-way radio. It must be
connected by the appropriate SRCK7xxx radio cable to utilize both the
situational awareness and two-way radio communications. SRCK7xxx
part numbers vary depending on the radio connector and are sold
separately. For language translated manuals and further information,
please refer to the website.
Boom mic.
headset with
earplugs
OR
SP1R
unit +PTT
two-way
radio
Earplugs with
in-ear mic.
SP1R
unit+ PTT
two-way
radio
FITTING THE EARPLUGS
1. Place disposable 2. Roll foam tip to a
compressed, crease
foam tip between
thumb and forefinger. free cylinder
4. Roll the foam tip
5. Ensure the foam tip
again between the
remains a compressed,
thumb and forefinger.
crease free cylinder on
the ear bud.
7. Hold the ear bud in 8. Check to ensure the
place for 30 seconds ear buds are correctly
while the foam tip inserted.
expands.
3. Push the foam tip all
the way onto the ear
bud spout.
6. Using your opposite
hand, pull your ear
upward and outward.
Insert the ear bud
deeply into the ear.
9. A poor fit will be
visible by the ear buds
being far away from the
ear. No part of the
foam tip should be
visible. Repeat the
process until a good fit
is achieved.
DOC00091 - Rev.02
