SP1R
MANUAL
ENGLISH
DOC00091 Rev.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP1R and is the answer not in the manual?

Questions and answers

Related Manuals for Sensear SP1R

Summary of Contents for Sensear SP1R

  • Page 1 SP1R MANUAL ENGLISH DOC00091 Rev.02...

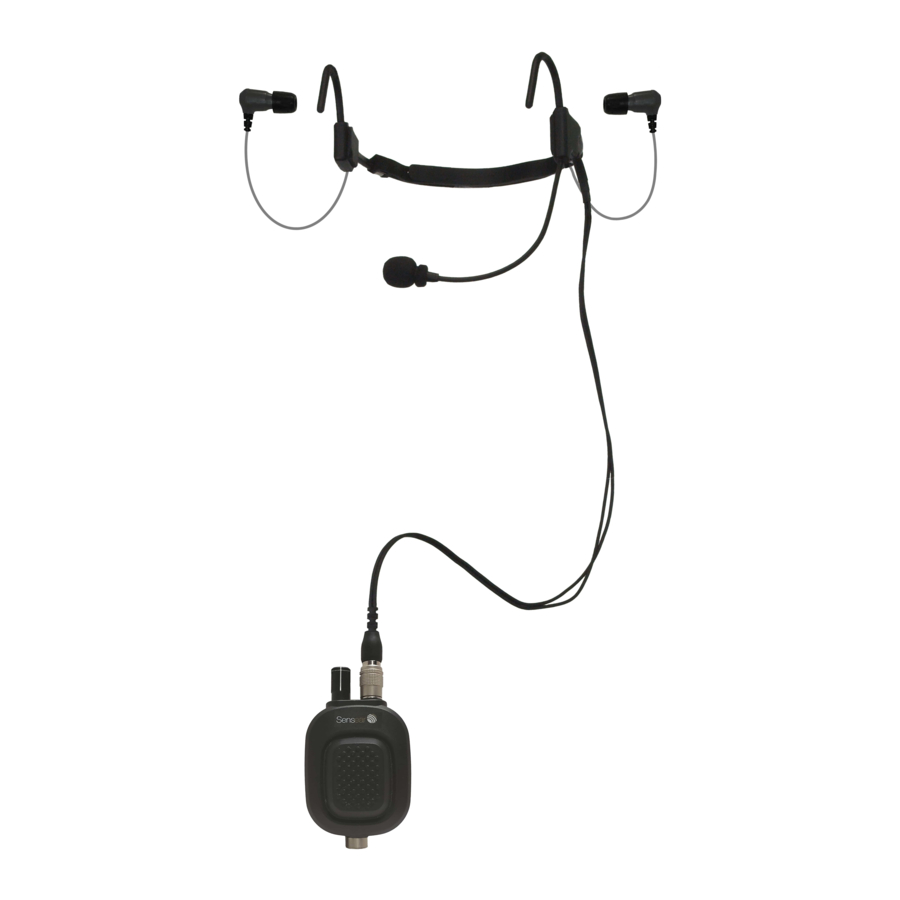

  • Page 3 For language translated manuals and further information, please refer to the website. The SP1R is designed to be worn with the main housing attaching to the belt of pant seam, and the inline PTT attaching to the shirt/upper garment.
  • Page 4 (SP1RM02, SM1RMIS02) (SP1RE02, SM1REIS02) Hirose quick release connector SENS mode ON/OFF/Volume Control knob Hirose quick release connector SP1R base unit Hirose quick and PTT release connector Two-Way Radio cable SRCK7xxx Two-Way Radio (Not included) DOC00091 SP1R Manual rev 02...
  • Page 5 FITTING THE EARPLUGS The SP1R comes with a detachable earpiece assembly designed for ease of serviceability and hygiene for users who share the base unit. For further information and to order additional earpiece assemblies, please contact your supplier or visit www.sensear.com.

  • Page 6: Operating The Headset

    Connect the SRCK7xxx cable to the two-way radio. Turn the two-way radio on. The headset will power up. An audible “Sensear, sounds good to me” will be heard through the headset. POWER OFF: Option 1. Turn the two-way radio off from the two-way radio.
  • Page 7 To enable VOX on the SP1R, press the SP1R’s PTT before putting the two-way radio into VOX mode. To disable VOX, you can either turn VOX off on the two- way radio or press the SP1R’s PTT once, depending on which two-way radio model you use.

  • Page 8: Accessories And Spare Parts

    FETLG010 Foam ear tip – large (14mm) – 10 pair Further information may be obtained from your Sensear representative, via the Sensear website, or by emailing or writing to the address on this User Manual. DOC00091 SP1R Manual rev 02...
  • Page 9 INTRINSICALLY SAFE CERTIFICATION The SP1R-IS meets the following standards for use in hazardous gas environments: • TIA-4950-A Rev. May 13, 2014 Requirements for Battery-Powered, Portable Land Mobile Radio Applications in Class I, II, III, Division 1 Hazardous (Classified) Locations CSA C22.2 No. 157-92 (R2012) + UPD1 + UPD2 •...
  • Page 10 ENTITY PARAMETERS The entity parameters for the SP1R-IS when used with the two-way radio cables (SP1R-IS Interface Cable SRCK7xxx0001) Vmax = 8.4 V Ci = 70 uf Li = 4.84 uH SRCK7xxx0001 – Cable with Heavy Duty inline PTT SRCK7xxx0001 is the interface cable to connect SP1R-IS with any radio that utilizes a 7.6 V typical mobile radio battery pack.
  • Page 11 SENSEAR will at its absolute discretion repair or replace the Product where a defect in material or workmanship occurs, at no charge to the end user for parts or labor. SENSEAR reserves the right to replace the Product with the same or equivalent part or Product rather than repair it. Where a part or Product is replaced, the part or Product becomes the property of SENSEAR.

  • Page 13: Technical Information

    SP1R TECHNICAL INFORMATION Rev: 6/30/22 For most recent technical information, visit sensear.com/support/technical-information...

  • Page 14: Fcc Compliance Statement

    Increase the separation between the equipment and receive. • Connect the equipment into an outlet on a circuit different • from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help DOC00091 SP1R Manual rev 02...

  • Page 15: Declaration Of Conformity

    DECLARATION OF CONFORMITY For most recent Declaration of Conformity, please visit sensear.com/support/declaration-of-conformity DOC00091 SP1R Manual rev 02...

  • Page 16: Specifications

    Housing Material PC/ABS +TPE RoHS Compliant NRR AND SLC80 The SP1R has been certified to international hearing protection standards including EN352-2, EN352-7, ANSI S3.19-1974, ANSI 12.6- 2008 and AS/NZS 1270-2002. The following passive attenuation ratings were observed: PASSIVE ATTENUATION (ANSI S3.19 -1974) SP1Rmeasured in accordance with ANSI S3.19 -1974.
  • Page 17 PASSIVE ATTENUATION (ANSI S12.6 - 2008) SP1R measured in accordance with ANSI S12.6 – 2008 (Method B) Foam tips (SML, MED, LRG) Frequency (Hz) 1000 2000 4000 8000 Mean 32.0 29.2 32.3 32.5 37.0 40.8 42.6 attenuation(dB) Standard deviation 29 to 39 dB...
  • Page 18 Mean attenuation 34.1 32.2 37.2 35.1 37.5 37.1 40.7 – Standard deviation(dB) The SP1R has level dependent facilities and the criterion levels as defined in EN352-7 are displayed below Model (dBA) Foam tips 115.4 118.0 118.1 DOC00091 SP1R Manual rev 02...

  • Page 19: Copyright Notice

    While Sensear Pty. Ltd. makes every effort to ensure that the information in this document is correct at the time of publication, users and potential users should first check with Sensear Pty.
  • Page 20 Waste (Disposal) of your Electronic and Electric Equipment European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive The European Union’s WEEE directive requires that products sold into EU countries must have the crossed-out trash bin label on the product (or the package in some cases). As defined by the WEEE directive, this cross- out trash bin label means that customers and end-users in EU countries should not dispose of electronic and electrical equipment or accessories in household waste.
  • Page 21 La direttiva de la Unione Europea (EU) sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE) Ladirettiva RAEE della Unione Europea richiede che i prodotti venduti nei paesi della UE devono essere marcati conil simbolo di un contenitore di spazzatura mobile barrato sul prodotto (oincasi eccezionali sull'imballaggio).
  • Page 22 Printed in Australia...
