Summary of Contents for Sensear SM1P

  • Page 1 MANUAL ENGLISH...
  • Page 2 INTRODUCTION The SM1P is a state of the art hearing protection communication system that allows you to retain situational awareness whilst remaining in full contact with your team via Short Range technology, as well as two-way radio or cellular device via ®...

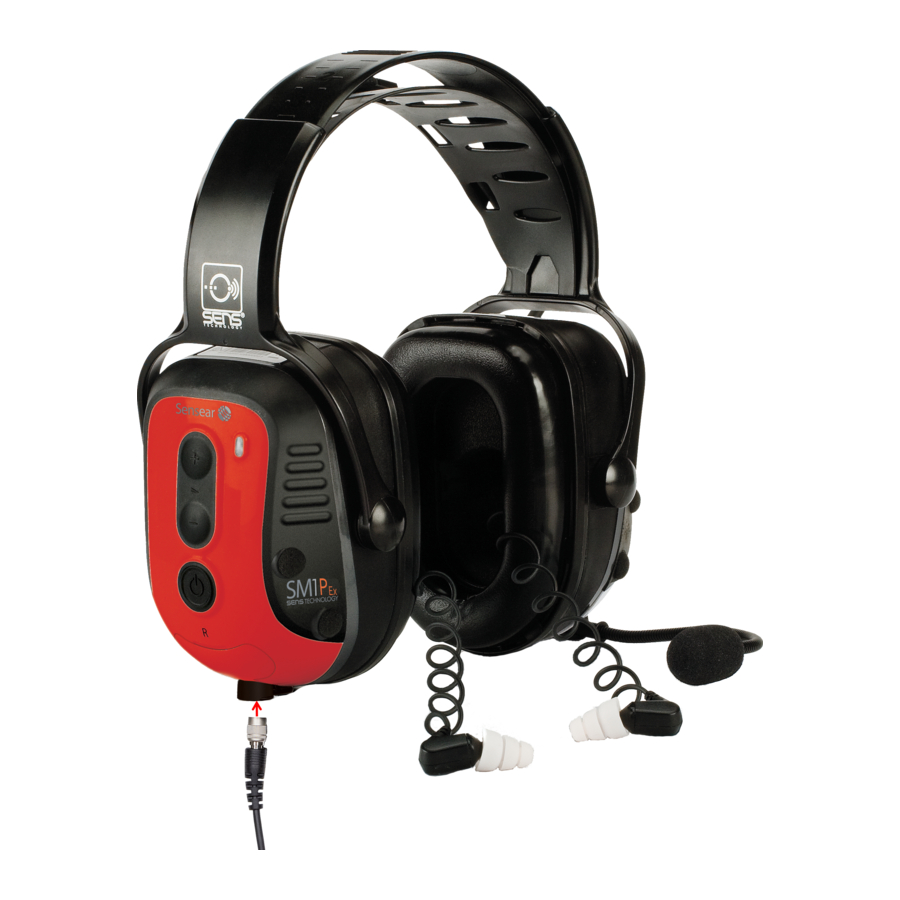

  • Page 3 HEADSET ANATOMY DOC00078 SM1P Manual rev 01.3...
  • Page 4 1.13 Inline PTT button Two-way radio connector (note, these will vary depending 1.14 on your two-way radio) 1.15 SRCK61XX cable assembly 1.16 To the two-way radio 1.17 LED light (one on each side of headset) DOC00078 SM1P Manual rev 01.3...

  • Page 5: Wearing The Headset

    WEARING THE HEADSET FIGURE 2 Description Headset Boom microphone Inline PTT Two-way radio DOC00078 SM1P Manual rev 01.3...

  • Page 6: Fitting The Headset

    WEARING THE HEADSET The SM1P headset is designed to be worn with the headset sealing around the ears. Specific examples of how to fit the headset around the ears are covered in the next three pages. The fit does alter slightly depending on what style of brace is used - headband, behind the neck or mounted to a helmet directly.
  • Page 7 3.2 The ear muff cushions should seal firmly against the head. 3.3 For best results, remove all hair from under the ear cushion. Noise reduction will be adversely affected by anything that breaks the seal of the ear muff ear cushions. DOC00078 SM1P Manual rev 01.3...
  • Page 8 4.2 Ensure no hair is inside the muff ear cushions. Fit the ear muffs over the ears ensuring a tight fit around the ears. 4.4 Ensure the muff completely surrounds the ears. Press down on the headband to obtain a snug and comfortable fit. DOC00078 SM1P Manual rev 01.3...
  • Page 9 Three adhesive mounts and ties are included to secure the ear muff cable to the helmet. The mounts should be evenly spaced around the rear outside of the helmet. Fit the tie through the mount. The cable should feed through each tie and secured in place. DOC00078 SM1P Manual rev 01.3...

  • Page 10: Operating The Headset

    Sensear app. QUIET MODE: By pressing the power button, this toggles ‘Quiet mode’. Quiet mode only allows two-way radio communications to pass through the headset. mode Green LED, blink twice every 4 seconds DOC00078 SM1P Manual rev 01.3...
  • Page 11  When the headset is powered on, the two-way radio PTT may not activate the two-way radio COMMUNICATING OVER SHORT-RANGE: (short press) together to toggle Short Range on / off. When on: Short Range PTT DOC00078 SM1P Manual rev 01.3...
  • Page 12 Hold Volume Up button While holding Volume Up, Press & release Power button Will hear “short range FM region” Release Volume Up button. Cycle between “short range FM region” and “short range FM frequency” (short) DOC00078 SM1P Manual rev 01.3...
  • Page 13 Change bank: (long) up = increment bank, down = decrement bank Note, frequency range is 88.1MHz to 107.9MHz (97.0 MHz for region 3). Exit Short Range setup: press and hold Power button to shutdown headset DOC00078 SM1P Manual rev 01.3...
  • Page 14 Call hung up on the far end ® : To transmit, use the radio’s PTT. For Two-way radio Bluetooth ® some select device, MFB will perform as a Bluetooth PTT (if short range off). Contact Sensear representative for compatible devices. DOC00078 SM1P Manual rev 01.3...

  • Page 15: Accessories And Spare Parts

    Replacement cushions may be pushed into the clips around the baseplate. The headset should be stored at room temperature (between 15°C/59°F and 25°C/77°F). ACCESSORIES AND SPARE PARTS The following accessories and spare parts may be ordered separately: DOC00078 SM1P Manual rev 01.3...
  • Page 16 SMBM0001 Replacement boom microphone SMAP0001 Cooling Pads Further information may be obtained from your Sensear representative, via the Sensear web site, or by emailing or writing to the address on this User Manual. CHARGING The Sensear SM1P headset is supplied with an AC adapter that operates globally when fitted with the appropriate electrical regional adapter.

  • Page 17: Declaration Of Conformity

    Over 24 hours of battery life when fully charged.  Up to 7 hours for complete recharge. DECLARATION OF CONFORMITY We, the undersigned, Company Sensear Pty Ltd Address 199 Great Eastern Highway, Belmont, WA, 6104 Country Australia Telephone +61 8 9277 7332 DOC00078 SM1P Manual rev 01.3...
  • Page 18 Number Fax Number +61 8 9277 7338 http://www.sensear.com Email info@sensear.com Declare that: Model SM1P in accordance with the following directives:  89/686/EEC  2014/53/EU  2006/95/EC  2004/108/EC  2006/42/EC Has been designed and manufactured to the following specifications: ...
