Summary of Contents for Sensear sp1r

  • Page 1 SP1R Manual...
  • Page 2 For language translated manuals and further information please visit www.sensear.com. The SP1R is designed to be worn with the main housing attaching to the belt or pant seam, and the Inline PTT attaching to the shirt / upper garment.
  • Page 3 FITTING THE EARBUDS The SP1R comes with a detachable earpiece assembly designed for ease of serviceability and hygiene for users who share the base unit. For further information and to order additional earpiece assemblies, please contact your supplier or visit www.sensear.com Place disposable foam tip between thumb and forefinger.
  • Page 4 This allows for easy muting of Sensear’s situational awareness feature when, and if, this is preferred by the user. COMMUNICATING OVER TWO-WAY RADIO • Press and hold the built-in PTT button located on the SP1R unit. • Release the inline PTT button to cease transmission.

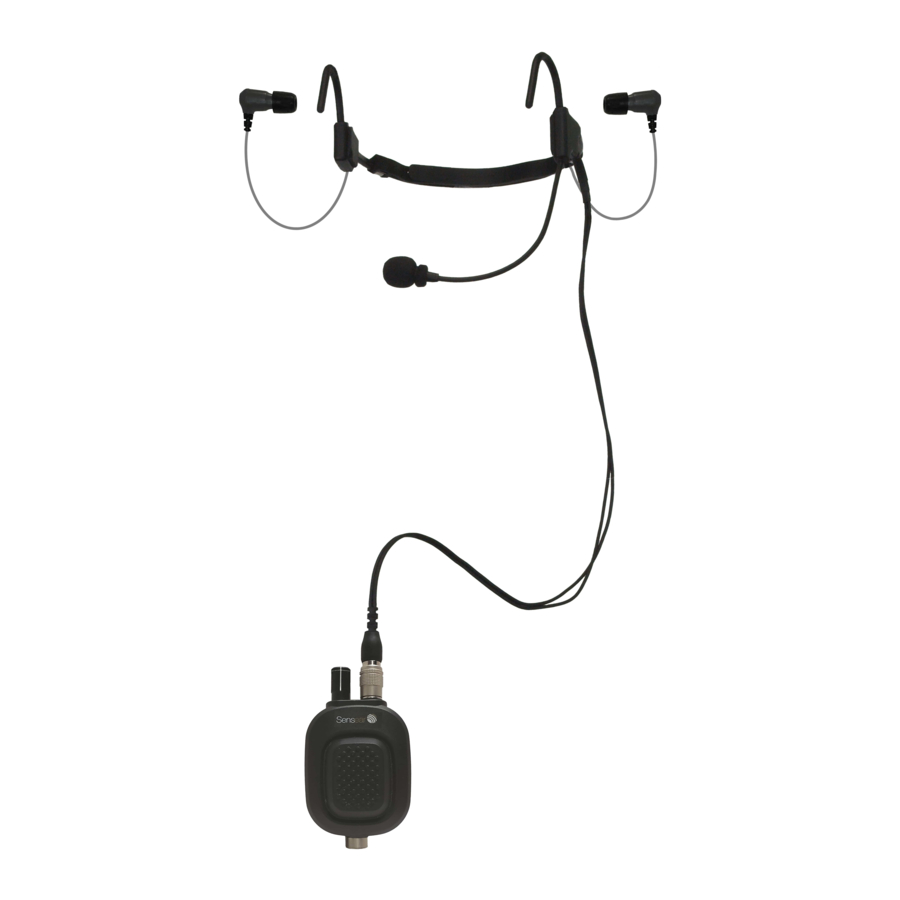

  • Page 5 Boom mic headset with earplugs (SPBMHS02) Earplug headset with in-ear mic (SPEBHS02) Hirose quick release connector Hirose quick release connector SENS mode ON/OFF/Volume Control knob smartPlugR02 base unit and PTT Hirose quick release connector Two-Way Radio cable SRK7XXX…. Two-Way Radio (Not included)

  • Page 6: Maintenance And Storage

    Foam ear tip – medium (12mm) – 10 pair FETMD010 Foam ear tip – large (14mm) – 10 pair FETLG010 Further information may be obtained from your Sensear representative, via the Sensear web site, or by emailing or writing to the address on this User Manual.
  • Page 7 Telephone No. +61 8 92777 7332 http://www.sensear.com Email admin@sensear.com Declare that: Model SP1R in accordance with the following directives: • 2011/65/EU • 89/686/EEC Has been designed and manufactured to the following specifications: • EN 352-2:2002 Hearing Protectors – Safety requirements and Testing –...
  • Page 8 SENSEAR will at its absolute discretion repair or replace the Product where a defect in material or workmanship occurs, at no charge to the end user for parts or labour. SENSEAR reserves the right to replace the Product with the same or equivalent part or Product rather than repair it. Where a part or Product is replaced, the part or Product becomes the property of SENSEAR.
  • Page 9 SP1R HEADSET INFORMATION ENGLISH...

  • Page 10: Fcc Compliance Statement

    FORWARD Product Safety and RF Exposure Compliance: This product is designed to be used in isolation or in conjunction with a two-way radio. Before using this product with a two-way radio, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with the two-way radio.

  • Page 11: Specifications

    Housing Material PC/ABS + TPE RoHS Compliant NRR AND SLC80 The SP1R has been certified to International hearing protection standards including EN352-2, EN352-7, ANSI S3.19-1974, ANSI 12.6-2008 and AS/NZS 1270-2002. The following passive attenuation ratings were observed: PASSIVE ATTENUATION (ANSI S3.19 -1974) SP1R measured in accordance with ANSI S3.19 -1974.
  • Page 12 PASSIVE ATTENUATION (ANSI S12.6 - 2008) SP1R measured in accordance with ANSI S12.6 – 2008 (Method B) Foam tips (sml, med, lrg) Frequency (Hz) 1000 2000 4000 8000 Mean 32.0 29.2 32.3 32.5 37.0 40.8 42.6 attenuation (dB) Standard 29 to 39 dB...
  • Page 13 (dB) Standard deviation (dB) Mean attenuation 34.1 32.2 37.2 35.1 37.5 37.1 40.7 – Standard deviation(dB) The SP1R has level dependent facilities and the criterion levels as defined in EN352-7 are displayed below Model (dBA) Foam tips 115.4 118.0 118.1...

  • Page 14: Copyright Notice

    Whilst Sensear Pty. Ltd. makes every effort to ensure that the information in this document is correct at the time of publication, users and potential users should first check with Sensear Pty.
  • Page 15 Waste (Disposal) of your Electronic and Electric Equipment European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive The European Union’s WEEE directive requires that products sold into EU countries must have the crossed out trashbin label on the product (or the package in some cases). As defined by the WEEE directive, this cross-out trashbin label means that customers and end-users in EU countries should not dispose of electronic and electrical equipment or accessories in household waste.
  • Page 16 La direttiva de la Unione Europea (EU) sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE) La direttiva RAEE della Unione Europea richiede che i prodotti venduti nei paesi della UE debbano essere marcati con il simbolo di un contenitore di spazzatura mobile barrato sul prodotto (o in casi eccezionali sull’imballaggio). Il simbolo di un contenitore di spazzatura mobile barrato, conforme alla direttiva RAEE, significa chi i clienti e i detentori finali nei paesi della UE, non dovrebbero smaltire gli apparecchi o gli accessori elettronici ed elettrici con i normali rifiuti domestici.
