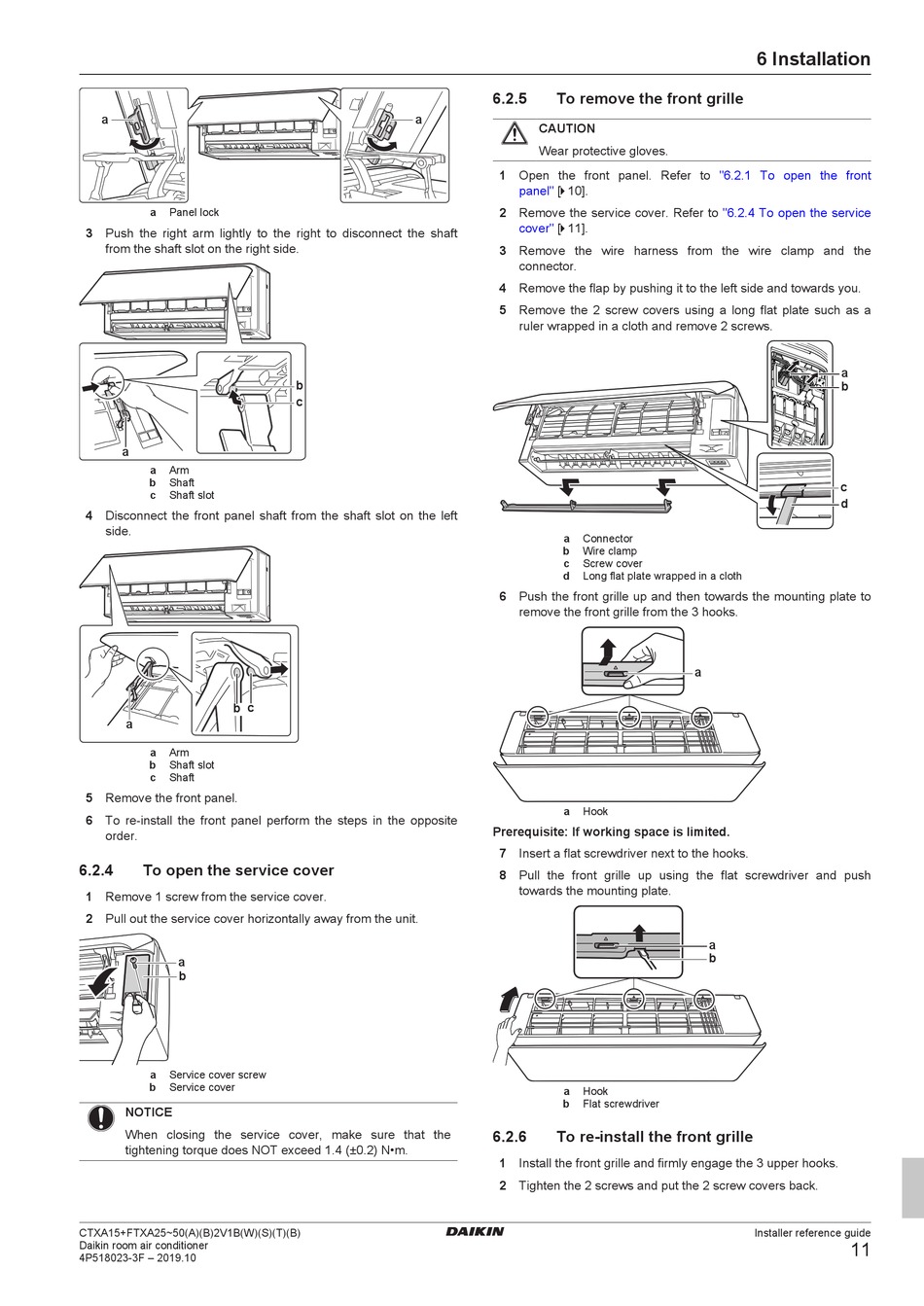

a
a Panel lock
3 Push the right arm lightly to the right to disconnect the shaft
from the shaft slot on the right side.
a
a Arm
b Shaft
c Shaft slot
4 Disconnect the front panel shaft from the shaft slot on the left
side.
c
b
a
a Arm
b Shaft slot
c Shaft
5 Remove the front panel.
6 To re-install the front panel perform the steps in the opposite
order.
6.2.4

To open the service cover

1 Remove 1 screw from the service cover.
2 Pull out the service cover horizontally away from the unit.
a
b
a Service cover screw
b Service cover
NOTICE
When closing the service cover, make sure that the
tightening torque does NOT exceed 1.4 (±0.2) N•m.
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
Daikin room air conditioner
4P518023-3F – 2019.10
a
b
c
6.2.5

To remove the front grille

CAUTION
Wear protective gloves.
1 Open the front panel. Refer to
panel" [ 4 10].
2 Remove the service cover. Refer to
cover" [ 4 11].
3 Remove the wire harness from the wire clamp and the
connector.
4 Remove the flap by pushing it to the left side and towards you.
5 Remove the 2 screw covers using a long flat plate such as a
ruler wrapped in a cloth and remove 2 screws.
a Connector
b Wire clamp
c Screw cover
d Long flat plate wrapped in a cloth
6 Push the front grille up and then towards the mounting plate to
remove the front grille from the 3 hooks.
a Hook
Prerequisite: If working space is limited.
7 Insert a flat screwdriver next to the hooks.
8 Pull the front grille up using the flat screwdriver and push
towards the mounting plate.
a Hook
b Flat screwdriver
6.2.6

To re-install the front grille

1 Install the front grille and firmly engage the 3 upper hooks.
2 Tighten the 2 screws and put the 2 screw covers back.
6 Installation
"6.2.1 To open the front
"6.2.4 To open the service
a
b
c
d
a
a
b
