Daikin ARKC12RV2S Service Manual page 7

Si001560EB

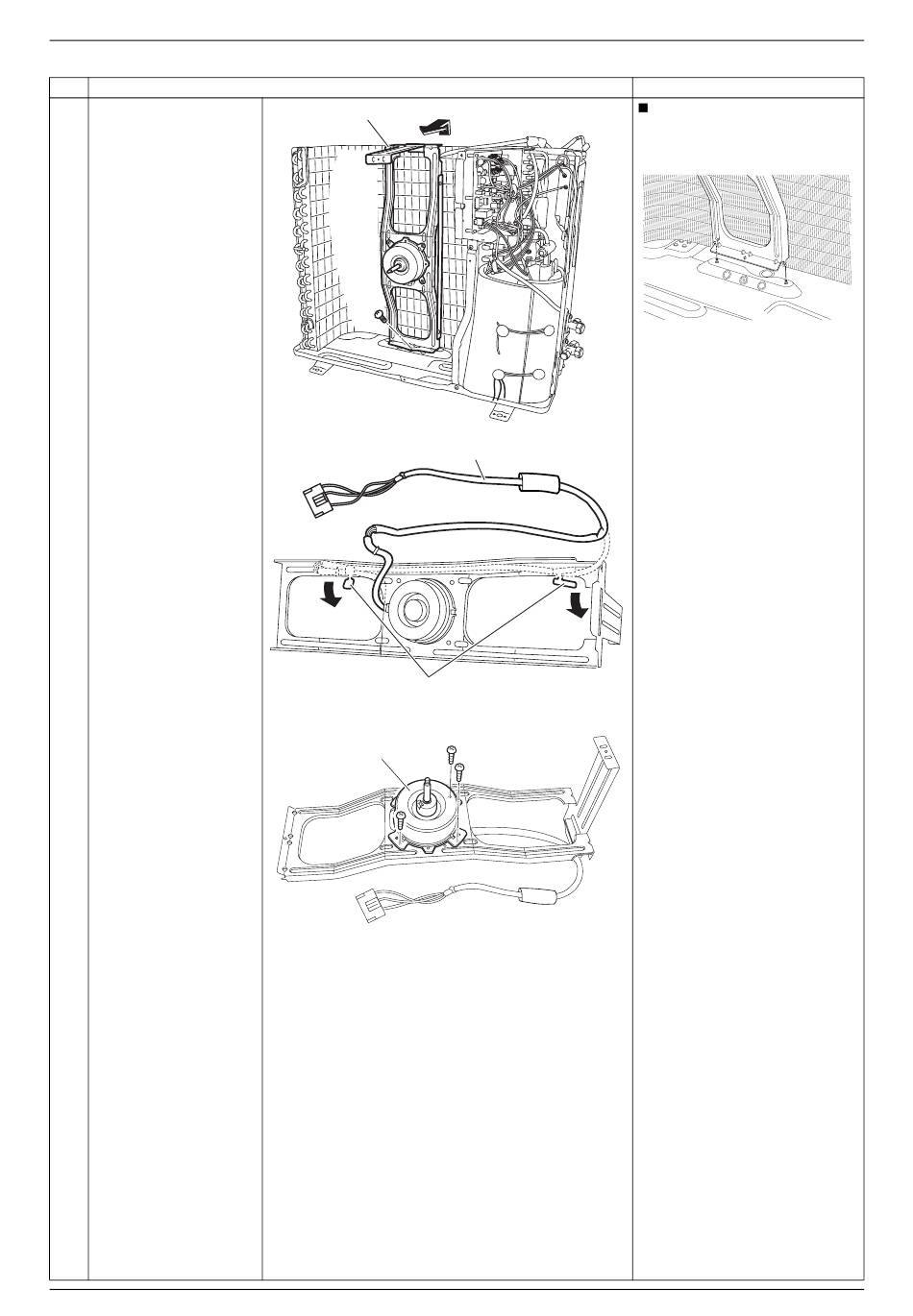

Step
4 Remove the screw, and
then the fan motor
fixing frame.
5 Unfasten the 2 hooks
on the fan motor fixing
frame and release the
fan motor lead wire.
6 Remove the 3 screws,
and then the fan motor.
Removal Procedure
Procedure
Fan motor fixing frame
Fan motor lead wire
Hook
Fan motor
Outdoor Fan / Fan Motor
Points
When reassembling, fit the 2
lower hooks into the bottom
frame.
(R22387)
(R22388)
(R22389)
(R10460)
5
