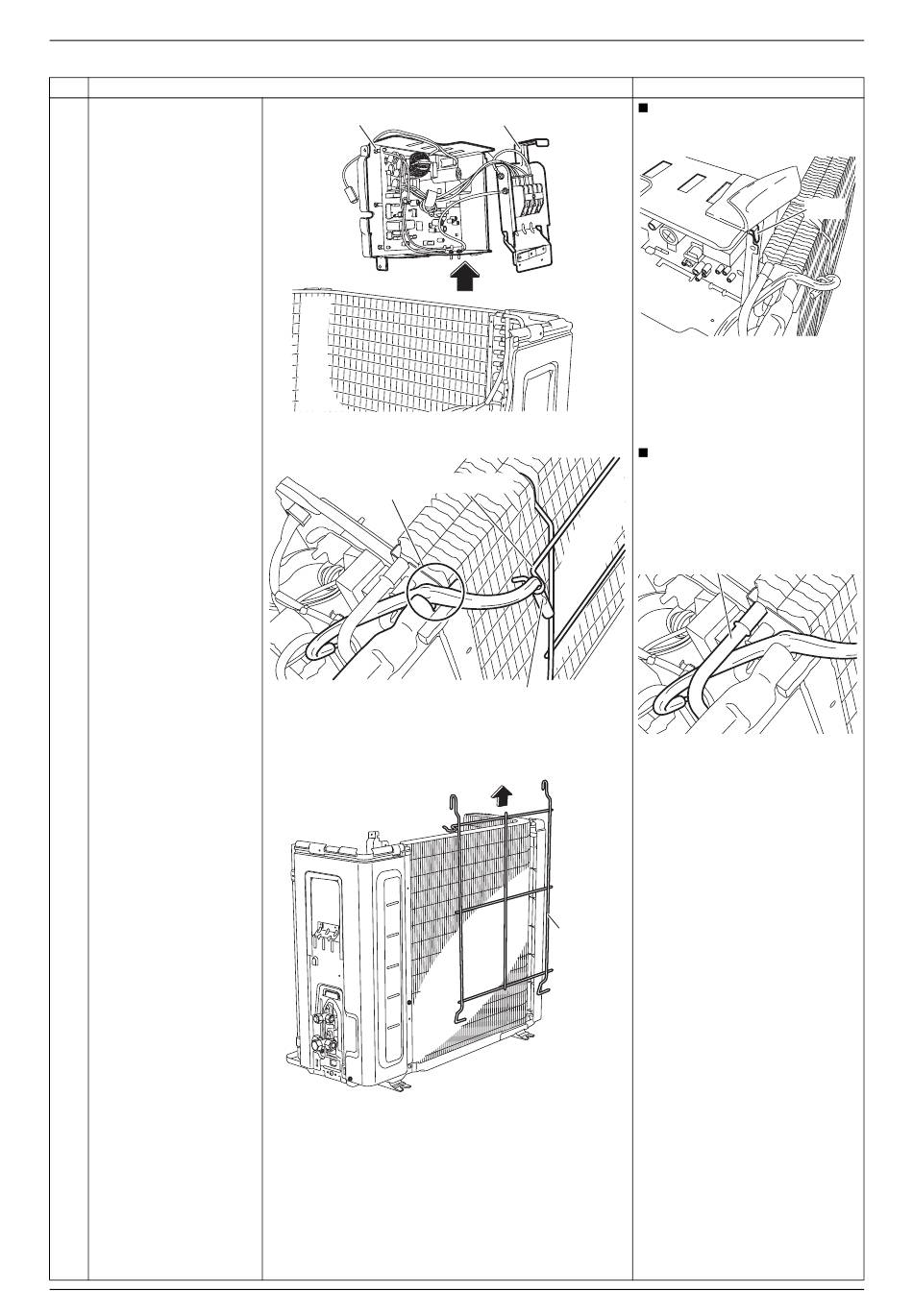

Step
11 Lift up and remove the
electrical box together
with the terminal board
mounting plate.
12 Remove the outdoor
temperature thermistor
from the protection net
and from the slit.
13 Lift up and remove the
protection net.
Removal Procedure
Procedure
Electrical box Terminal board mounting plate
Protection net
Slit
Outdoor temperature
thermistor
Points
When reassembling, make
sure to fit the rear hook.
(R22399)
When reassembling, make
sure to pass the outdoor
temperature thermistor
under the top part of the heat
exchanger first.
Top part of the heat exchanger
(R23996)
Protection
net
(R21314)
Electrical Box
Hook
(R22400)
(R22402)
