Daikin ARKC12RV2S Service Manual page 18

Electronic Expansion Valve Coil / Four Way Valve
Step
2 Remove the screw, and
then the four way valve
coil.
3 Remove the terminal
cover.
4 Remove the protection
bushing.
5 Disconnect the
compressor lead wires
and the overload
protector.

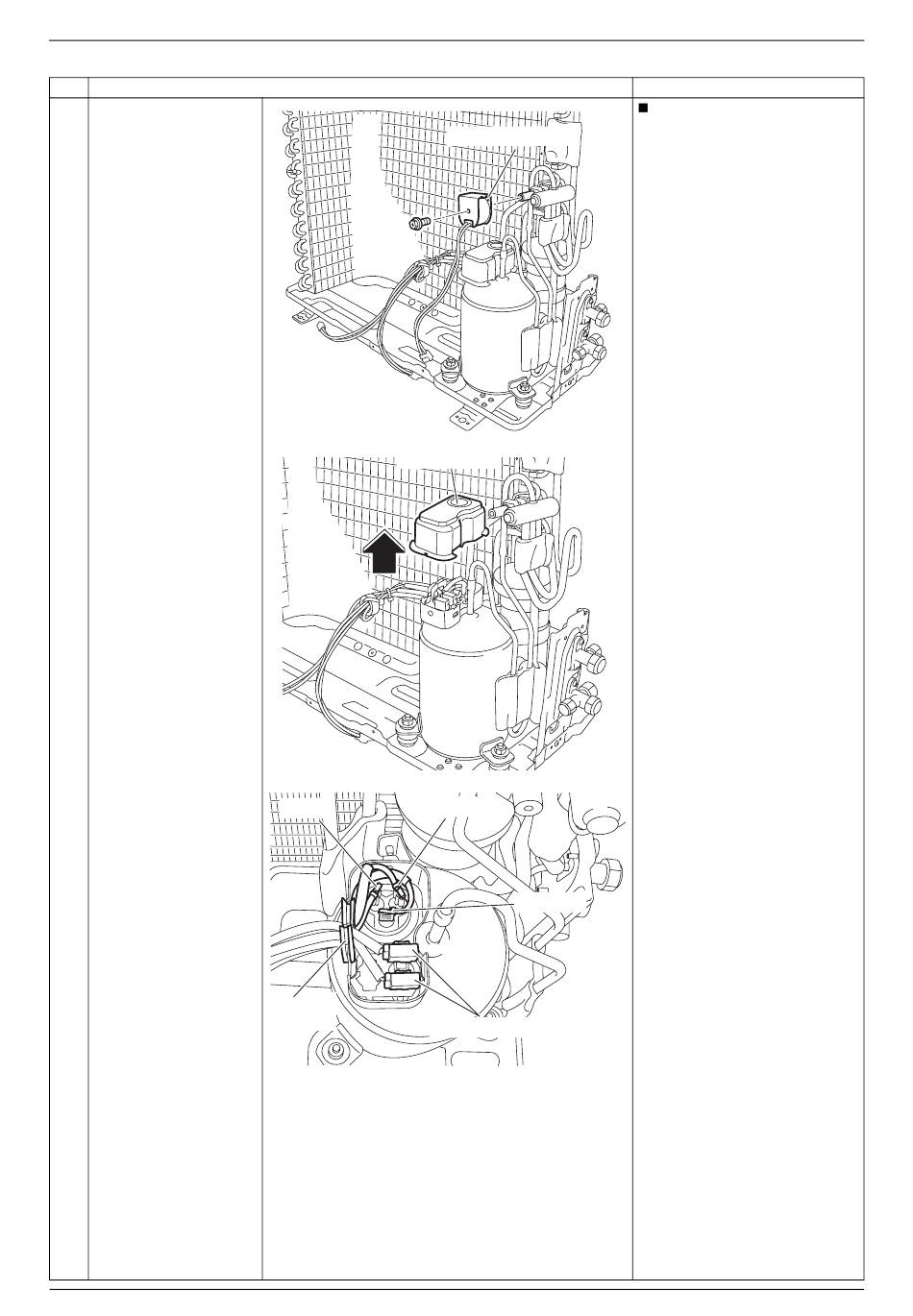

16
Procedure
Terminal cover
W ( blue)
U (red)
Protection
bushing
Overload protector
Four way valve coil
(R22419)
(R22420)
V (yellow)
(R22421)
Si001560EB
Points
The cooling only models
have no four way valve.
Removal Procedure
