Daikin ARKC12RV2S Service Manual page 10

Electrical Box

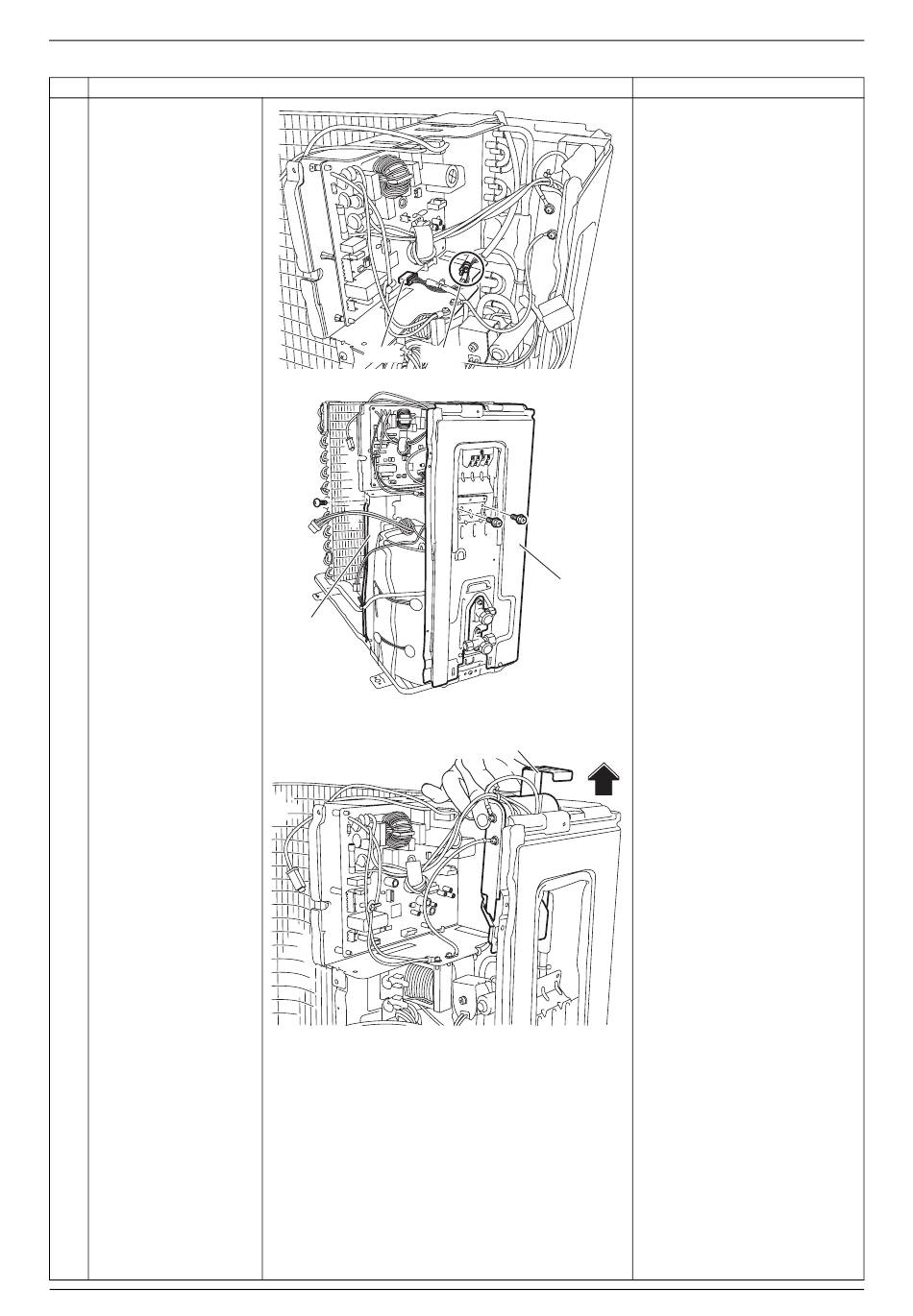

Step
8 Disconnect the
connector [S90] and
remove the clamp.
9 Remove the 2 screws
on the right side panel,
and then the screw on
the partition plate.
10 Lift up the terminal
board mounting plate
from the right side
panel.
8
Procedure
[S90]
Clamp
Partition
plate
Terminal board mounting plate
[S90]: thermistors
(R22396)
Right side
panel
(R22397)
(R22398)
Si001560EB
Points
Removal Procedure
