Daikin ARKC12RV2S Service Manual page 21

Si001560EB
Step
2 Remove the protection
bushing.
3 Disconnect the
compressor lead wires
and the overload
protector.
4 Remove the putties.
5 Heat up the brazed part
of the discharge side
pipe and disconnect it.
6 Heat up the brazed part
of the suction side pipe
and disconnect it.
7 Remove the 3 nuts.
8 Lift up the compressor
and remove it.

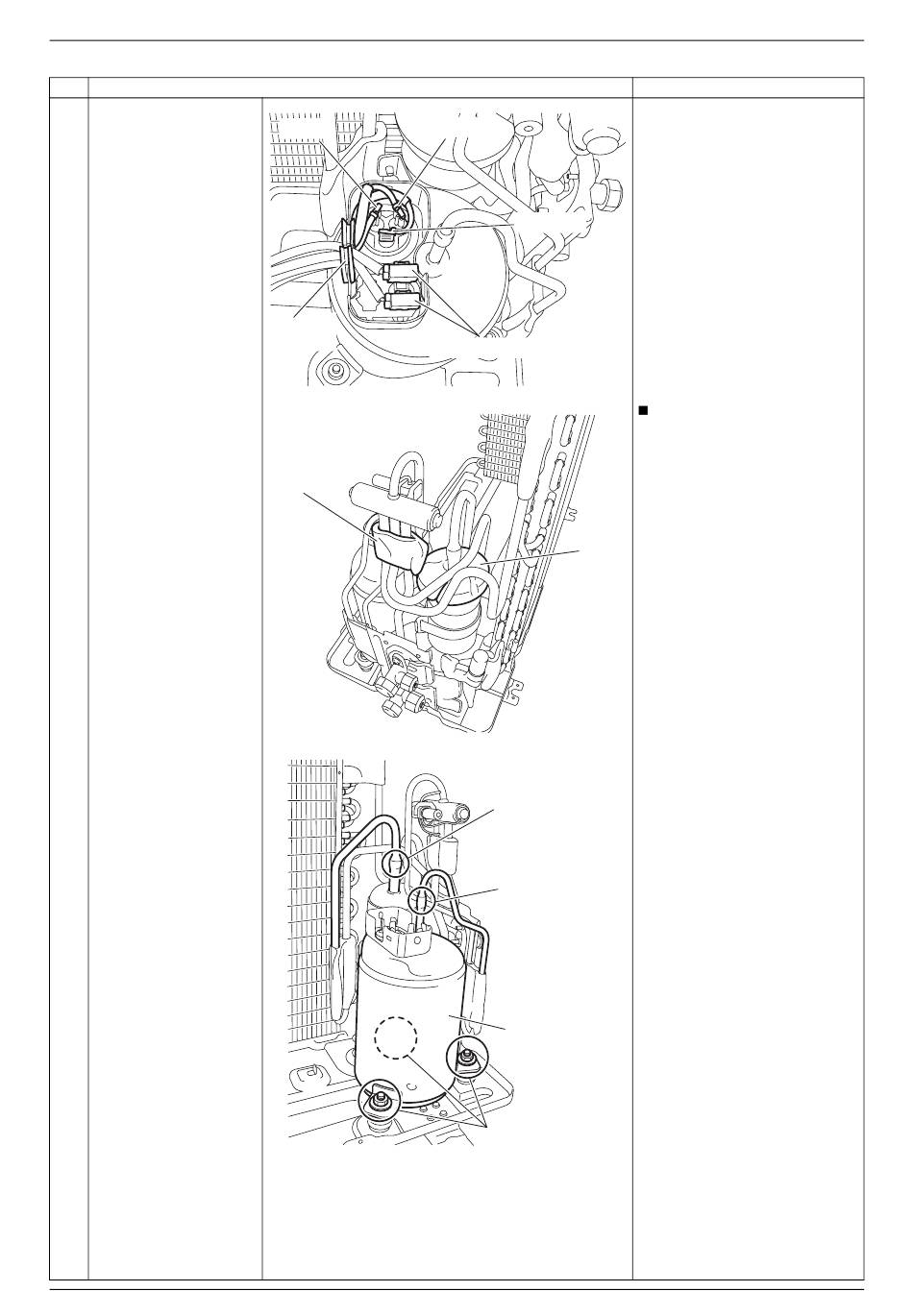

Removal Procedure
Procedure
W ( blue)
U (red)
Protection
bushing
Overload protector
Putty
V (yellow)
(R22421)
The position of the putties
varies depending on the
model.
Putty
(R22422)
Brazed part of the
suction side pipe
Brazed part of the
discharge side pipe
Compressor
Nut
(R22425)
Compressor
Points
19
