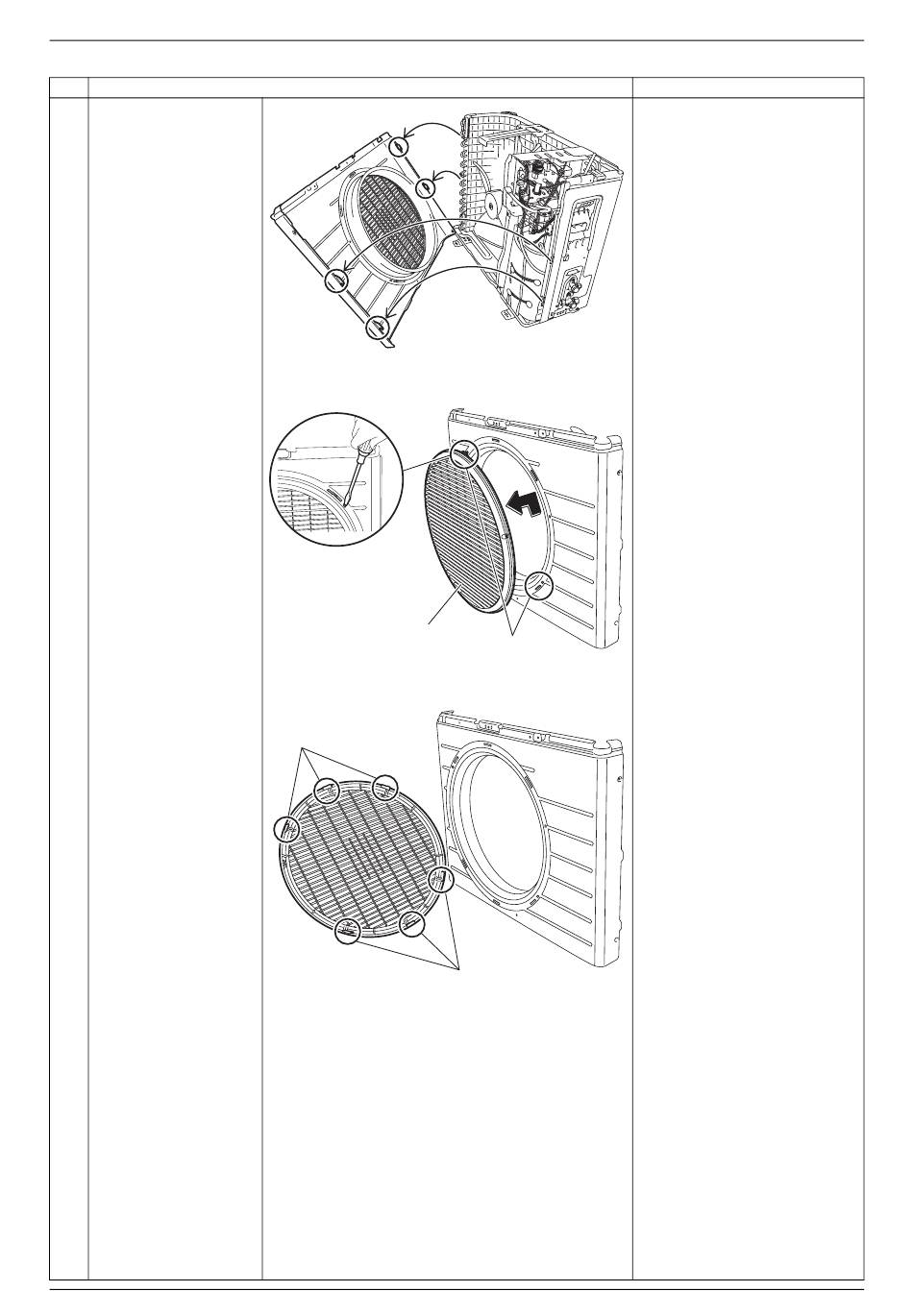

Step
5
Lift up the right side of
the front panel and
unfasten the 2 hooks.
6
Unfasten the 2 left side
hooks and remove the
front panel.
7
Press the 2 projections
from the rear side and
rotate the discharge
grille.
8
Unfasten the 6 hooks
and remove the
discharge grille.
Removal Procedure
Procedure
Rear side
Discharge grille
Hook
Hook
(R22382)
Projection
(rear side)
(R22383)
(R22384)
Outer Panels
Points
