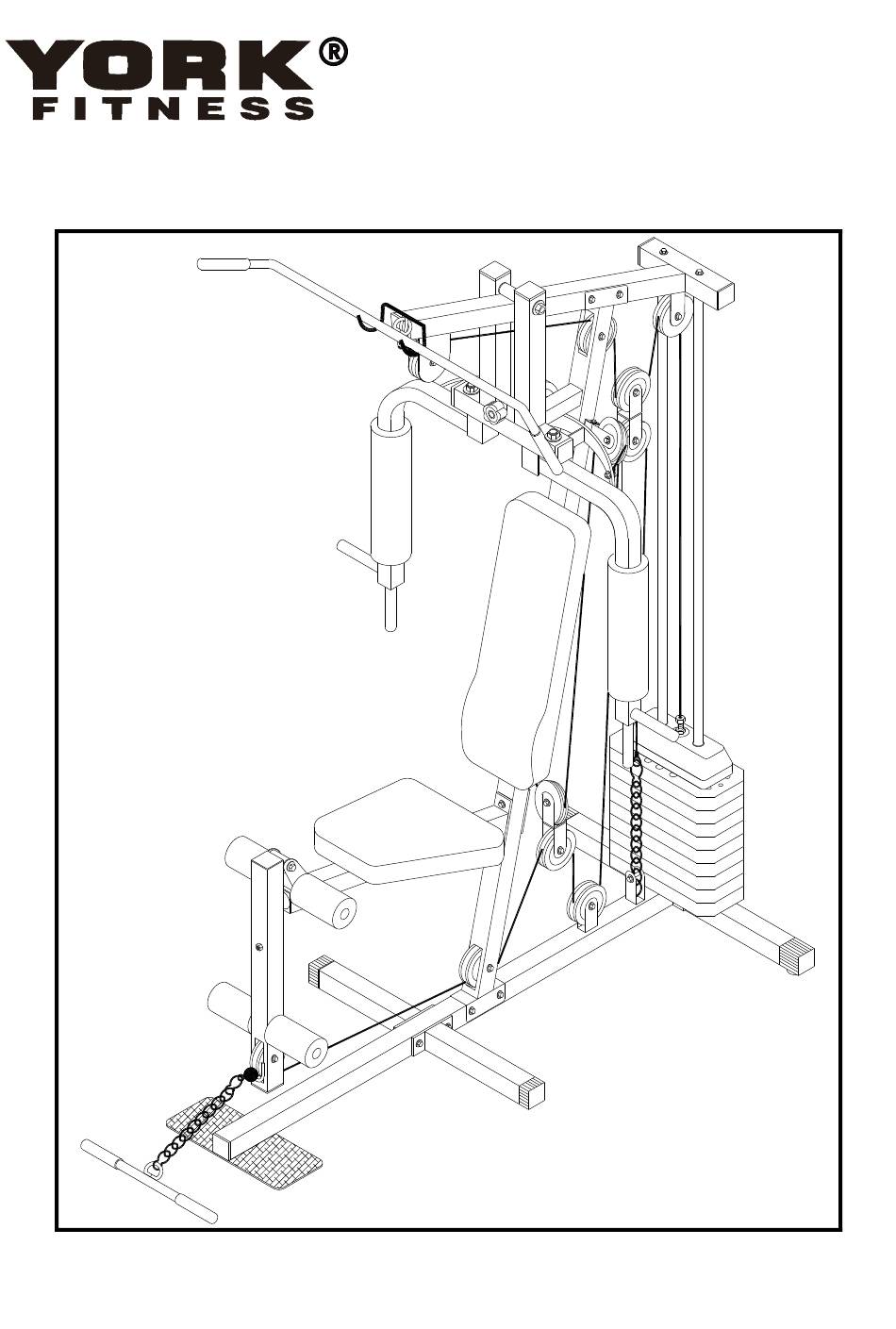

  • Page 1 Ti-Co O WN E R ”S M A N UA L...

  • Page 3: Part List

    PART LIST PART NO: DESCTIPTION Q’TY MAIN BASE GUIDE ROD LEFT BASE RIGHT BASE SELECTOR SHAFT TOP PLATE WEIGHT STACK RUBBER DOUNT VERTICAL BEAM TOP CROSS BEAM SEAT ASSEMBLY UNIT LEG EXTENSION/ARM CURL BAR PRESS BAR LEFT PEC DECK ARM RIGHT PEC DECK ARM PRESS PIN SEAT...
  • Page 4 PART LIST PART NO: DESCTIPTION Q’TY 50MM SQUARE END CAP RUBBER END CAP HANDLE PIPE PIN FOR WEIGHT SATCK 38MM SQUARE END CAP PRESS BAR SHAFT QUICK PIN M10*45mm HEX BOLT M12*80mm HEX BOLT M10*75mm HEX BOLT M8*40mm HEX BOLT M10*70mm HEX BOLT M10*25mm...
  • Page 5 STEP 01 1. PLACE RUBBER CAP (42) INTO BOTH ENDS OF LEFT BASE (03) 2. INSERT GUIDE RODS (02) ONTO LEFT BASE (03) USE BOLT (54) WITH WASHER (68). 3. ATTACH MAIN BASE (01) ONTO LEFT BASE (03) USE BOLT (50) WITH WASHER (68) AND NUTS (63).
  • Page 6 STEP 02 ATTACH THE RUBBER DOUNT (09) INTO THE GUIDE ROD (02). SLIDE THE WEIGHT PLATE (08) AND TOP PLATE (06) OVER GUIDE ROD (02). GROOVE FOR SELECTOR PIN ON WEIGHT PLATES SHOULD FACE DOWN INSTALL 1”ROUND BUSHING (38) INTO THE SELECTOR SHAFT (05). WITH PIN (47) THEN ATTACH THE SELECTOR SHAFT (05) INTO THE TOP PLATE (06).
  • Page 7 STEP 03 1. PLACE 2" SQUARE CAP (41) INTO BOTH ENDS OF TOP CROSS BEAM (12). 2. ATTACH TOP CROSS BEAM (12) ONTO THE VERTICLE BEAM (10) USE BOLT (53) WITH WASHER (68) AND NUTS (63). FROM TOP SIDE AND CONNECT THE GUIDE RODS (02) TO THE TOP CROSS BEAM (12) USE BOLT (54) WITH WASHER (68) AS SHOWN.
  • Page 8 STEP 04 1. PLACE 50MM SQUARE CAP (41) INTO BOTH ENDS OF LEG EXTENSION /ARM CURL BAR (14). 2. ATTACH SEAT ASSEMBLY (13) TO VERTICLE BEAM (10), WITH BOLTS (50), NUTS (63), AND WASHERS (68) AS SHOWN. 3. ATTACH LEG EXTENSION /ARM CURL BAR (14) TO SEAT ASSEMBLY (13). 4.
  • Page 9 STEP 05 1. PLACE 50MM SQUARE CAP (41) INTO BOTH ENDS OF PRESS BAR (15). 2. INSTALL OIL BUSHING (71) INTO THE PRESS BAR (15) AS SHOWN. STEP 06 1. ATTACH PRESS BAR (15) TO TOP CROSS BEAM (12) WITH PRESS BAR SHAFT (46) AND OIL BUSHING (71) WASHER (65) BOLT (61) AS SHOWN.
  • Page 10 PLEASE ENSURE THE CABLE (26) CAN BE ROTATING FREELY AFTER INSTALLED. PLEASE FOLLOW THE ASSEMBLING INSTRUCTION WITH THE CABLE (26) , M10 HEX BOLT (62) , M10 NUT (51) , M10 WASHER (68) ANDM10 NYLON NUT (63) ARE PLACED IN CORRECT POSITION AS THE DRAWING SHOWN , FAILURE TO DO SO WILL RESULT IN THE CABLE AND CABLE EYELET COMING OFF.
  • Page 11 -10-...

  • Page 12: Cable Assembly

    CABLE ASSEMBLY 1.START WITH THE TOP LONG CABLE 2535mm (24) START BY THREADING THE END OF THE CABLE WITHOUT THE BALL OVER. PULLEY NO.1, OVER PULLEY NO.2, DOWN AND AROUND PULLEY NO.3 IN FLOATING PULLEY LOCK, UP AND OVER PULLEY NO.4 AND DOWN AND ATTACH TO WEIGHT STACK WITH M12 BOLT &...
  • Page 13 ARM CURL PART LIST DESCRIPTION PART NO: Q’TY M8*20MM HEX BOLT W ASHER ARM CURL CUSHION ARM CURL SUPPORT FRAME 50*38MM PLASTIC SQUARE BUSHING KNOB BOLT PLACE PLASTIC SQUARE BUSHING (79) INTO LEG EXTENSION/ARM CURL BAR (14) AS SHOWN. ATTACH ARM CURL CUSHION (77) TO ARM CURL SUPPORT FRAME (78) USING WASHER (69) HEX BOLT (59) AS SHOWN.
