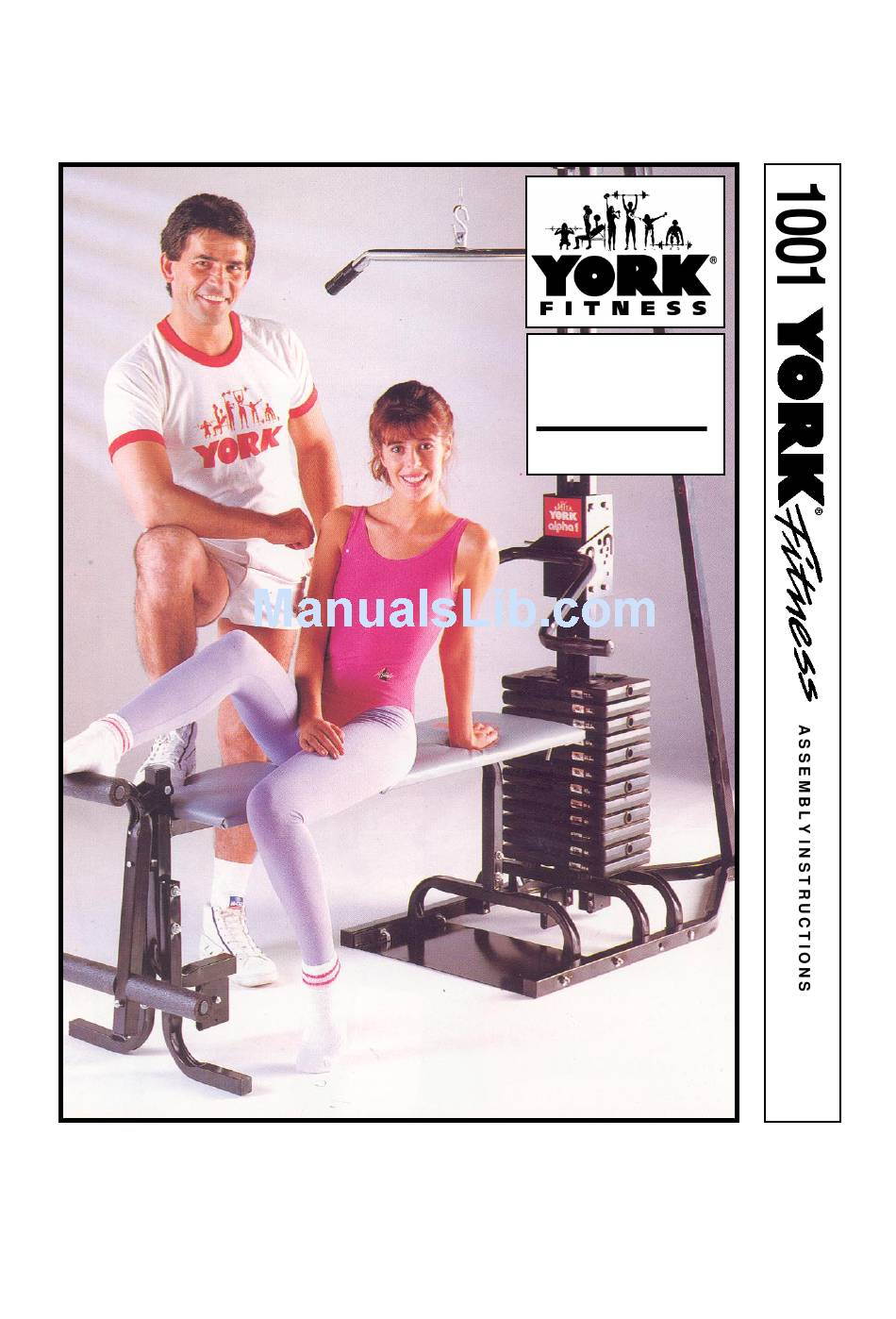

- Page 1 1001 Home - Gym MODEL # 5020 46/99 PAGE 1 46/99...
-
Page 2: Parts View
MODEL # 5020 ASSEMBLY INSTRUCTIONS 33B021 1001 33B022 Home - Gym 22241 PAGE 2 46/99... -
Page 3: Assembly
SECTION 1 Attach finger tight two x Pt.2203 to Pt.2205 using: NOTE: MAXIMUM WEIGHT STACK LIMIT 65KGS. (DO NOT two x 3/8" x 4 1/2" hex head bolts ADD EXTRA WEIGHTS) MAXIMUM WEIGHT OF USER = 100KG Before assembly, read each section carefully. If these two x 3/8"... - Page 4 SECTION 2 Now open Box 3 which contains the following parts: Locate Bag 81 and check contents as listed: BAG 81 BOX 3 Part No. Qty. Description Part No. Qty. Description 27A51 1" x 6" Foam Grip 32B39 Bag 29 Cables 41B011 1"...
- Page 5 SECTION 3 Install one black cap in the top of Part 2220. Take the end of BAG 29 (Cables) Pt.2220 with only one hole and attach between Pts.2228 using Qty. Description one 3/8" x 5" bolt and one 3/8" nyloc nut. B = Short Cable 42"...
-
Page 6: How To Lock Gym
WARNINGS 1001 PLEASE READ THIS SHEET CAREFULLY BEFORE STARTING TO USE THE ENCLOSED EXERCISE EQUIPMENT. Always consult your doctor before undertaking any exercise program. Ensure that all nuts and bolts are fully tight before using any exercise equipment. Always wear suitable clothing and footwear e.g. tracksuit and training Home - Gym shoes.
