User Manual

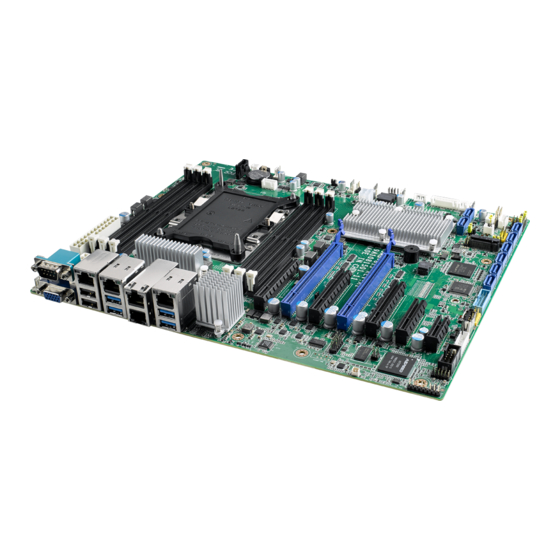

ASMB-975 Series
Dual LGA 3647-P0 Intel Xeon®
Server Board with 12 DDR4, 4
PCIe x16, 14 SATA3, 8 USB3.0,
Dual 10GbE, IPMI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASMB-975 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech ASMB-975 Series

Summary of Contents for Advantech ASMB-975 Series

  • Page 1 User Manual ASMB-975 Series Dual LGA 3647-P0 Intel Xeon® Server Board with 12 DDR4, 4 PCIe x16, 14 SATA3, 8 USB3.0, Dual 10GbE, IPMI...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
  • Page 4 Initial Inspection Before installing motherboard, please make sure that the following materials have been shipped:  1 x ASMB-975 Server Board  1 x ASMB-975 Startup Manual  1 x Driver CD  2 x Serial ATA HDD data cables ...

  • Page 5: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 Features ....................2 Specifications .................... 3 Table 1.1: Specifications ............. 3 Board Layout, Jumpers and Connectors........... 5 Figure 1.1 Board Layout .............. 5 Figure 1.2 Rear I/O of full SKU ............ 5 Table 1.2: Onboard LAN LED Color Definition ......6 Table 1.3: Onboard LAN LED Color Definition ......
  • Page 6 Chapter BIOS..........31 Introduction ..................... 32 BIOS Setup ..................... 33 3.2.1 Main Menu .................. 33 3.2.2 Advanced BIOS Features Setup..........34 3.2.3 Platform Configuration ..............53 3.2.4 Socket Configuration ..............63 3.2.5 Server Management ..............82 3.2.6 Security..................85 3.2.7 Boot ....................
  • Page 7 SYSFAN0~SYSFAN4) ................108 Table B.6: Fan Power Connector..........108 Power LED (JFP3) ................108 Table B.7: Power LED ............. 108 External Speaker Connector (JFP2) ............. 109 Table B.8: External Speaker Connector ........109 Reset Connector (JFP1) ............... 109 Table B.9: Reset Connector............. 109 B.10 HDD LED Connector (JFP1) ..............
  • Page 8 ASMB-975 User Manual viii...

  • Page 9: Chapter 1 Overview

    Chapter Overview...

  • Page 10: Introduction

    Introduction The ASMB-975 serverboard is the most advanced Intel Xeon Processor Scalable Family series board for server-grade IPC applications that require high-performance computing power & multi-expansion slots. This serverboard supports Intel Xeon Pro- cessor Scalable Family series processor and DDR4 2133/2400/2666 MHz memory up to 384 GB.

  • Page 11: Specifications

    Specifications Table 1.1: Specifications Processor  Dual Intel LGA3647-P0 Xeon processor sockets  Supports Intel Processor Scalable Family, up to 28 cores  Supports the TDP of processor up to 205 W System Memory  Xeon processor supports DDR4 memory bus ...
  • Page 12 Table 1.1: Specifications Power Connector 1 x 24-pin SSI EPS 12V power connector (Input 12V, 5V, 3.3V, System Power 5Vsb) 2 x 8-pin SSI EPS 12V power connector for CPU & Memory power CPU Power (12V) PCIe slot power 1 x 8-pin power connector for PCIe slot 12V input Expansion Slots ...

  • Page 13: Board Layout, Jumpers And Connectors

    Board Layout, Jumpers and Connectors Connectors on the ASMB-975 are linked to external devices such as hard disk drives. In addition, ASMB-975 has a number of jumpers that are used to configure the system for specific applications. The tables below list the functions of each jumper and connector. Later sections in this chapter give instructions for setting jumpers.

  • Page 14: Table 1.2: Onboard Lan Led Color Definition

    Table 1.2: Onboard LAN LED Color Definition 10/100/1000 Mbps LAN Mbps LAN Link/Activity LED Scheme LAN1 & LAN2 (1G) Left LED Right LED Link Green 10 Mbps Active Blinking green Link Amber Green 100 Mbps Active Amber Blinking green Link Green Green 1000 Mbps...

  • Page 15: Table 1.5: Connectors

    Keep CMOS data/ Clear CMOS data/ disable ME update/ Enable ME update/ Table 1.5: Connectors Label Function ATX12V1 SSI EPS 12V auxiliary power connector (for CPU0) and memory ATX12V2 SSI EPS 12V auxiliary power connector (for CPU1) and memory ATXPWR1 SSI EPS 24-pin main power connector (for system) For optional battery kit BIOS_SKT1...

  • Page 16: Table 1.6: Onboard Led

    Table 1.5: Connectors SLOT1 PCIE x 4 slot of CPU1 SLOT2 PCIE x 16 slot of CPU0 SLOT3 PCIE x 4 slot of CPU1 SLOT4 PCIE x 16 slot of CPU1 SLOT5 PCIE x 4 slot of CPU0 SLOT6 PCIE x 16 slot of CPU1 SLOT7 PCIE x 4 slot of CPU0 SLOT8...

  • Page 17: Block Diagram

    Block Diagram ECC DDR4 2133/2400 ECC DDR4 2133/2400 Channel 0 Channel 0 ECC DDR4 2133/2400 ECC DDR4 2133/2400 Channel 1 Channel 1 UPI PORT0 : 10.4GT/s Intel LGA 3647-P0 Intel LGA 3647-P0 ECC DDR4 2133/2400 ECC DDR4 2133/2400 Channel 2 Channel 2 Xeon®...

  • Page 18: Memory Installation Procedures

    Memory Installation Procedures Single CPU Installed (CPU0) Quantity of memory installed DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMME1 DIMMF1 DIMMG1 DIMMH1 DIMMI1 DIMMJ1 DIMMK1 DIMML1 Dual CPU Installed (CPU0 & CPU1) Quantity of memory installed DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMME1 DIMMF1 DIMMG1 DIMMH1 DIMMI1 DIMMJ1...

  • Page 19: Processor Installation

    Processor Installation The ASMB-975 is designed for Intel Xeon processor scalable family. Step 1 Remove dust cover. Step 2 Install CPU on CPU clip and align pin 1 mark. ASMB-975 User Manual...
  • Page 20 Step 3 Install the CPU clip assembly on the heatsink as a processor + heatsink module. Step 4 Put the processor heatsink module into the motherboard bolster plate by using a T-30 screw driver (follow heatsink label direction 1-2-3-4). ASMB-975 User Manual...

  • Page 21: Chapter 2 Connections

    Chapter Connections...

  • Page 22: Introduction

    Introduction You can access most of the connectors from the top of the board as it is being installed in the chassis. If you have a number of cards installed, you may need to par- tially remove a card to make all the connections. USB Ports (USB1~11) The two USB 3.0 ports on the rear plate and four USB3.0 on-board ports could reach transmission rates up to 5Gbps, besides the two USB2.0 on-board ports and one...

  • Page 23: Lan Ports (Lan1_2, Lan3_4)

    LAN Ports (LAN1_2, LAN3_4) The ASMB-975T2 is equipped with two 10GbE ports and two up to 1000 Mbps Ether- net LANs. They are all with RJ-45 jacks and supported by all major network operating systems. One of GbE and one of 10GbE are shared with IPMI for system manage- ment.

  • Page 24: Serial Ports (Com1~2)

    Serial Ports (COM1~2) The ASMB-975 offers one serial port on the rear plate and one 2.54mm pitch 9-pin header onboard. VGA1_COM1 COM2 COM2 PS2 Keyboard and Mouse Connectors (KBMS2) The 6-pin KBMS2 connector is for additional keyboard & mouse device usage. KBMS1 KBMS2 ASMB-975 User Manual...

  • Page 25: Cpu Fan Connector (Cpufan0~1)

    CPU Fan Connector (CPUFAN0~1) If a fan is used, this connector supports cooling fans that draw up to 1.5A (18W). CPUFAN1 CPUFAN0 Table 2.1: CPU FAN Pin Definition CPUFAN0 CPUFAN1 +12V +12V CPU0_TACH CPU1_TACH CPU0_PWM CPU1_PWM ASMB-975 User Manual...

  • Page 26: System Fan Connector (Sysfan0~7)

    System Fan Connector (SYSFAN0~7) SYSFAN6 SYSFAN5 SYSFAN7 SYSFAN4 SYSFAN0 SYSFAN1 SYSFAN3 SYSFAN2 Table 2.2: SYS FAN Pin Definition SYSFAN SYSFAN SYSFAN SYSFAN SYSFAN SYSFAN SYSFAN SYSFAN +12V +12V +12V +12V +12V +12V +12V +12V FAN0_ FAN1_ FAN2_ FAN3_ FAN4_ FAN5_ FAN6_ FAN7_ TACH...

  • Page 27: Front Panel Connector (Jfp1)

    Front Panel Connector (JFP1) There are several external switches and LEDs to monitor and control the ASMB-975. JFP1_JFP2 JFP3 2.9.1 Power LED (JFP3) JFP3 pin 1 and pin 3 are for the power LED. Refer to Appendix B for detailed infor- mation on the pin assignments.

  • Page 28: Hdd Led Connector (Jfp1 Pins 2 & 5)

    2.9.3 HDD LED Connector (JFP1 Pins 2 & 5) You can connect an LED to connector JFP1 to indicate when the HDD is active. 2.9.4 Reset Connector (JFP1 Pins 9 & 12) Many computer cases offer the convenience of a reset button. 9 12 2.9.5 Case Open (JCASE1)

  • Page 29: Sata Sgpio (Sgpio1)

    2.10 SATA SGPIO (SGPIO1) SGPIO2 SGPIO1 SCLOCK_PCH SLOAD_PCH SDATAOUT0_PCH SDATAOUT1_PCH ASMB-975 User Manual...

  • Page 30: Front Panel Lan Indicator Connector (Lanled1)

    2.11 Front Panel LAN Indicator Connector (LANLED1) LANLED1 LAN1_LED_ACT# LAN2_LED_ACT# +V3.3_AUX +V3.3_AUX LAN3_LED_ACT# LAN4_LED_ACT# +V3.3_AUX +V3.3_AUX 2.12 SATA and M.2 Connector (SATA0~7,SSATA0~3,SSATA4~5 as M2_2242) ASMB-975 features 12 SATA III interface ports (up to 600 MB/s) which ease cabling to hard drives with thin and long cables. In addition, there are two M.2 2242 connec- tors supporting SATAIII as well.

  • Page 31: Pcie Expansion Slots

    2.13 PCIe Expansion Slots The ASMB-975 provides nine expansion slots that can support four double-deck cards, one PCIe x 8 card and one PCIe x4 card. PCIEX4 PCIEX16 PCIEX4 PCIEX16 PCIEX8 _Slot 5 _Slot 6 _Slot 7 _Slot 8 _Slot 9 PCIEX16_Slot 4 PCIEX4_SLOT3 PCIEX16_SLOT2...

  • Page 32: Auxiliary Power Connector (Atxpwr1/Atx12V1/Atx12V2)

    2.14 Auxiliary Power Connector (ATXPWR1/ ATX12V1/ATX12V2) ATX12V2 ATXPWR1 ATX12V1 Note! Please use a power supply which is of SSI type; minimum output should be at least 500 W. ATXPWR1 & ATX12V1 & ATX12V2 sockets should be all con- nected with power supply, otherwise ASMB-975 will not boot up normally.

  • Page 33: Hd Audio Interface Connector (Hdaud1)

    2.15 HD Audio Interface Connector (HDAUD1) HDAUD1 HDAUD1 +5V_AUDIO ACZ_SYNC ACZ_BITCLK ACZ_SDOUT ACZ_SDIN0 ACZ_SDIN1 ACZ_RST# +12V_AUDIO ASMB-975 User Manual...

  • Page 34: Lpc Connector (Lpc1) For Optional Tpm Module

    2.16 LPC Connector (LPC1) for Optional TPM Module ASMB-975 has one LPC connector that can be installed Advantech's TPM Module for security management. LPC1 LPC1 LPC_CLK_24M LPC_AD1 PLTRST_LPC LPC_AD0 LPC_FRAME# +3.3V LPC_AD3 LPC_AD2 SMB_SCL_LPC SERIRQ_PCH SMB_SDA_LPC +5V_AUX ASMB-975 User Manual...

  • Page 35: Clear Cmos Connector (Jcmos1, Jme1)

    2.17 Clear CMOS Connector (JCMOS1, JME1) Setting jumper of JCMOS1 from pin 1-2 to pin 2-3,then back to pin 1-2 to reset CMOS data. Default setting of JME1 jumper is pin 1-2. Setting jumper of JME1 from pin 1-2 to pin 2-3 to enable ME update. JCOMS1 JCMOS1 JME1...

  • Page 36: Front Panel Smbus Connector (Smbus1)

    2.19 Front Panel SMBUS Connector (SMBUS1) For ASMB-975I/ASMB-975T2 sku, this connector is connected to BMC chip and BMC is the mater in this bus. For ASMB-975 SKU, this connector is connected to PCH, and PCH is the mater in this bus. SMBUS1 2.20 IPMI Module Connector (BMC_CN1 &...

  • Page 37: Volt1 Connector (Volt1)

    2.21 VOLT1 Connector (VOLT1) VOLT1 connects to the alarm board on the Advantech chassis. These alarm boards give warnings if a power supply or fan fails, if the chassis overheats, or if the back- plane malfunctions. VOLT1 5VSB +3.3V -12V +12V 2.22...
  • Page 38 ASMB-975 User Manual...

  • Page 39: Ami Bios

    Chapter AMI BIOS...

  • Page 40: Introduction

    Introduction With the AMI BIOS Setup program, you can modify BIOS settings and control the special features of your computer. The Setup program uses a number of menus for making changes and turning the special features on or off. This chapter describes the basic navigation of the ASMB-825 setup screens.

  • Page 41: Bios Setup

    BIOS Setup 3.2.1 Main Menu Press <Del> during bootup to enter AMI BIOS CMOS Setup Utility; the Main Menu will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. The Main BIOS setup screen has two main frames.

  • Page 42: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the ASMB-825 setup screen to enter the Advanced BIOS setup screen. You can select any of the items in the left frame of the screen, such as CPU configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 43 3.2.2.1 Intel Virtual RAID on CPU 3.2.2.2 Driver Health ASMB-975 User Manual...
  • Page 44 3.2.2.3 Trusted Computing  Security Device Support Enables or disables BIOS support for security devices. Note! Purchase Advantech LPC TPM module to enable TPM function. P/N: PCA-TPM-00A1E_B1E. ASMB-975 User Manual...
  • Page 45 3.2.2.4 ACPI Settings  Enable Hibernation Enable or Disable hibernation feature.  Lock Legacy Resources Enable or disable lock legacy resources feature.  PowerOn By Modem Enable or disable power on by modem feature. ASMB-975 User Manual...
  • Page 46 3.2.2.5 IT8528 EC Super IO Configuration  Serial Port 1 Configuration – Serial Port Enable or disable serial port 1. – Change Settings To select an optimal setting for serial port 1. ASMB-975 User Manual...
  • Page 47  Serial Port 2 Configuration – Serial Port Enable or disable serial Port 2. – Change Settings To select an optimal setting for serial port 2. ASMB-975 User Manual...
  • Page 48 3.2.2.6 IT8528 HW Monitor  Watchdog Timer Enable or disable the watchdog timer function.  CPU ACPI Shutdown Temperature Enable or disable the ACPI shutdown temperature threshold. When the system reaches the shutdown temperature, it will be automatically shut down by ACPI OS to protect the system from overheating damage.
  • Page 49 3.2.2.7 Serial Port Console Redirection ASMB-975 User Manual...
  • Page 50  COM1 Console Redirection Settings – Terminal Type Select a terminal type to be used for console redirection. Options available: VT100/VT100+/ANSI /VT-UTF8. – Bits Per Second Select the baud rate for console redirection. ASMB-975 User Manual...
  • Page 51 Options available: 9600/19200/57600/115200. – Data Bits – Parity A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the number of 1's in the data bits is even. Odd: parity bit is 0 if number of 1's the data bits is odd. Mark: parity bit is always 1.
  • Page 52  Legacy Console Redirection Settings Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. Console Redirection Settings  – Out-of-Band Mgmt Port ASMB-975 User Manual...
  • Page 53 Selects the COM port user would like to set for having console redirection feature. – Terminal Type Set as "VT100", "VT100+", "VT-UTF8", or "ANSI". "VT-UTF8" is the default setting. – Bits Per Second To select serial port transmission. Speed must be matched on the other side. It can be set as "9600", "19200", "57600", or "115200".
  • Page 54 3.2.2.9 UEFI Network Stack Configuration Enable or disable UEFI network stack function. ASMB-975 User Manual...
  • Page 55 3.2.2.10 CSM Configuration  CSM Support Enable or disable UEFI CSM (Compatibility Support Module) to support a leg- acy PC boot process. GateA20 Active  This items is useful when RT code is executed above 1MB. When it's set as "Upon Request", GA20 can be disabled using BIOS services.
  • Page 56  Option ROM Messages To "Force BIOS or keep current" to set the display mode for Option ROM.  Boot option filter Change UEFI/legacy ROM priority for boot option. ASMB-975 User Manual...
  • Page 57  Network Control the execution of UEFI and legacy PXE OpROM.  Storage Control the execution of UEFI and legacy storage OpROM. ASMB-975 User Manual...
  • Page 58 3.2.2.11 NVMe Configuration Set NVMe device options. 3.2.2.12 USB Configuration ASMB-975 User Manual...
  • Page 59  Legacy USB Support This is for supporting USB device under a legacy OS such as DOS. When choosing "Auto", the system will automatically detect if any USB device is plugged into the computer and enable USB legacy mode when a USB device is plugged, or disable USB legacy mode when no USB device is attached.
  • Page 60  Device Reset Time-out Selects the USB device reset time-out value. [10,20,30,40 sec] Device Power-up Delay  This item appears only when Device power-up delay item is set to [manual]. ASMB-975 User Manual...

  • Page 61: Platform Configuration

     Mass Storage Devices Default is "Auto" to enumerate mass storage devices according to media format. 3.2.3 Platform Configuration ASMB-975 User Manual...
  • Page 62 3.2.3.1 PCH Configuration  PCH Devices This item is to set up IO controller Hub devices. – SMBus controller Enable or disable SMBus controller. ASMB-975 User Manual...
  • Page 63 – Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure (G3 state). ASMB-975 User Manual...
  • Page 64 – PCH CRID Enable or disable PCH compatibility revision ID (CRID) functionality. – Case Open Warning Enable or disable the chassis intrusion monitoring function. When enabled and the case is opened, the warning message will show in POST screen. – Azalia ASMB-975 User Manual...
  • Page 65 Enable or disable Azalia device. – VGA Priority Determines priority between onboard and 1st off-board video device found. ASMB-975 User Manual...
  • Page 66 – RTC Wake system from S4/S5 Enable or disable system wake on alarm event.  PCIe M.2 Slot Configuration – PCIe M.2 Slot Enable or disable the PCI Express root port. ASMB-975 User Manual...
  • Page 67 – PCIe Speed Configure PCI Express speed.  PCH SATA Configuration ASMB-975 User Manual...
  • Page 68 – SATA controller Enable or disable SATA devices. – Configure SATA as Set as AHCI or RAID when SATA controllers are enabled. – Support ALPM Enable or disable Aggressive Link Power Management (ALPM) protocol for Advanced Host controller Interface-compliant (AHCI) Serial ATA (SATA) devices.
  • Page 69 – sSATA/M.2 controller Enable or disable sSATA/M.2 controller. – SATA M.2 Port Enable or disable SATA port.  Networking ASMB-975 User Manual...
  • Page 70 – LAN1 controller Enable or disable Intel I210 controller support. – LAN1 PXE OpROM Enable or disable Boot option for Intel I210 controller. – LAN2 controller Enable or disable Intel I210 controller support. – LAN2 PXE OpROM Enable or disable Boot option for Intel I210 controller. –...

  • Page 71: Socket Configuration

    3.2.4 Socket Configuration 3.2.4.1 Processor Configuration ASMB-975 User Manual...
  • Page 72 Per-Socket Configuration  Use this to select how many processor cores you want to activate when you are using a dual or quad core processor.  Hyper-threading [All] Enable or disable Intel Hyper Threading technology.  Execute disable Bit Enable or disable the Execute disable Bit feature. The Optimal and Fail-Safe default setting is enabled.
  • Page 73  DCU IP Prefetcher Enable prefetch of next L1 line based upon sequential load history.  DCU Mode Change the data cache unit mode.  AES-NI This item is to Enable or disable CPU advanced encryption standard instruc- tions. 3.2.4.2 UPI Configuration UPI Status ...
  • Page 74 Link Speed Mode  Select the QPI link speed as either the Fast mode or Slow mode. ASMB-975 User Manual...
  • Page 75 Link Frequency Select  Allows for selecting the QPI Link frequency. ASMB-975 User Manual...
  • Page 76  Link L0p Enable Enable or disable QPI Link0p.  Link L1 Enable Enable or disable QPI Link1. ASMB-975 User Manual...
  • Page 77 3.2.4.3 Memory Configuration NUMA  Enable or disable non uniform memory access (NUMA).  Memory Technology Display memory topology with DIMM population information. 3.2.4.4 IIO Configuration ASMB-975 User Manual...
  • Page 78  Socket0 PCIe Configuration PCIe port bifurcation control and select target link speed as Gen1, Gen2, Gen3. ASMB-975 User Manual...
  • Page 79 ASMB-975 User Manual...
  • Page 80  Socket1 PCIe Configuration PCIe port bifurcation control and select target link speed as Gen1, Gen2, Gen3. ASMB-975 User Manual...
  • Page 81 ASMB-975 User Manual...
  • Page 82  Intel VT for Directed I/O (VT-d) Enable or disable Intel Virtualization Technology for Directed I/O.  Intel VMD technology Enable or disable Intel Volume Management Device Technology. ASMB-975 User Manual...
  • Page 83 PCIe Hot Plug  Enable or disable PCIe hot plug globally. ASMB-975 User Manual...
  • Page 84  PCI-E ASPM Support (Global) Set the ASPM level to Disable, Per-Port or L1 state only. 3.2.4.5 Advanced Power Management Configuration ASMB-975 User Manual...
  • Page 85  CPU P State Control ASMB-975 User Manual...
  • Page 86 ASMB-975 User Manual...
  • Page 87 CPU C State Control  ASMB-975 User Manual...
  • Page 88 ASMB-975 User Manual...
  • Page 89  Package C State Control Memory Power & Thermal Configuration  ASMB-975 User Manual...

  • Page 90: Server Management

    3.2.5 Server Management BMC Support  Enable or disables interfaces to communicate with BMC.  Wait for BMC If enabled, motherboard will wait 30 ~ 60 seconds until BMC module boots up completely. After that, the normal BIOS post screen will be displayed. If disabled, motherboard will not wait for the BMC module's response.
  • Page 91 3.2.5.1 System Event Log  SEL Components Enable/disable all features of system event logging during boot.  Erase SEL Choose options for erasing SEL.  When SEL is Full Choose options for reactions to a full SEL. Log EFI Status Codes ...
  • Page 92 3.2.5.2 BMC Self Test Log  Erase Log Erase log options.  When Log is Full Select the action to be taken when the log is full. 3.2.5.3 BMC Network Configuration ASMB-975 User Manual...

  • Page 93: Security

     Configuration Address Source Select to configure LAN channel parameters statically or dynamically (by BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. 3.2.6 Security ASMB-975 User Manual...
  • Page 94 Note! With AC power & Battery. Short CMOS1 Jumper: Date/Time & Password: Keep Setting: reset to default AC power and CMOS battery are removed. Short CMOS1 Jumper: Date/Time: reset to default Password: keep Setting: reset to default ASMB-975 User Manual...

  • Page 95: Boot

    3.2.7 Boot Setup Prompt Timeout  Number of seconds to wait for setup activation key.  Bootup NumLock State Select the keyboard NumLock state as "On" or "Off". Quiet Boot  Enable or disable quiet boot option.  Boot Option Priorities Sets the system boot priorities.

  • Page 96: Save & Exit

    3.2.8 Save & Exit  Save Changes and Exit Exit system setup after saving the changes.  Discard Changes and Exit Exit system setup without saving any changes. ASMB-975 User Manual...
  • Page 97  Save Changes and Reset Reset the system after saving changes.  Discard Changes and Reset Reset system setup without saving any changes.  Save Changes Save changes done so far to any of the setup options. Discard Changes  Discard changes done so far to any of the setup options.
  • Page 98 ASMB-975 User Manual...

  • Page 99: Chipset Software Installation Utility

    Chapter Chipset Software Installation Utility...

  • Page 100: Before Beginning

    Before Beginning To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the ASMB-975 are located on the software installation CD. Before beginning, it is important to note that most display drivers need to have the relevant software application already installed on the system prior to installing the enhanced display drivers.

  • Page 101: Windows 10/ Windows Server 2012 R2 & 2016

    Windows 10/ Windows server 2012 R2 & 2016 Insert the driver CD into your system's CD-ROM drive. When the folder is dis- played, move the mouse cursor over the folder 01_Chipset. Find the executable in this folder, click to install the driver. ASMB-975 User Manual...
  • Page 102 ASMB-975 User Manual...

  • Page 103: Graphic Setup

    Chapter Graphic Setup...

  • Page 104: Introduction

    "Graphic" folder and click the executable file to complete the installa- tion of the drivers for the OS that you need. Note! If ASMB-975 Series carries an additional graphics card for VGA output, please set this additional graphic card as "major output" under the "Display properties" of OS.

  • Page 105: Lan Configuration & Usb 3.0

    Chapter LAN Configuration & USB 3.0...

  • Page 106: Lan Configuration

    LAN Configuration 6.1.1 Introduction The ASMB-975T2 Series has two Gigabit Ethernet LAN connections via dedicated PCI Express x1 lanes: GbE LAN1 - Intel I210; GbE LAN2 - I210; two 10G Base-T LAN connectors LAN3 and LAN4 - Intel X557 PHY. They eliminate bottlenecks of net- work data flow and incorporate Gigabit Ethernet at 10 Gbps.

  • Page 107: Usb 3.0

    USB 3.0 6.2.1 Introduction ASMB-975 offers eight USB 3.0 ports, four in rear side and four via onboard header. The USB 3.0 could provide the bandwidth up to 500MB/s to shorter the time for data transmission. 6.2.2 Windows Series Driver Setup Insert the driver CD into your system's CD-ROM drive.

  • Page 108: Sata & Pcie Ssd Raid

    SATA & PCIe SSD RAID Intel C622/C621 PCH chip offers SATA & PCIe SSD RAID under Windows operating system. Note! 1.Please visit the Intel download center for "Intel Rapid Storage Tech- nology enterprise for Microsoft Windows Operating System Software User's Guide" file download, 2.For the hotfix file download, please visit Microsoft website.

  • Page 109: Programming The Watchdog Timer101

    Appendix Programming the Watchdog Timer...

  • Page 110: Watchdog Timer Overview

    The ASMB-925 Series watchdog timer can be used to monitor system software oper- ation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it.
  • Page 111 Write 0x57 to 0x299 port Watchdog Event Wait IBF clear 0x29A, BIT1, = 0 Write 0x04 to 0x299 port (Warm) Reset event Wait IBF clear 0x29A, BIT1, = 0 Write 0x28 to 0x29A Start watchdog Wait 1 ~ 9 Wait IBF clear 0x29A, BIT1, = 0 Write 0x29 to 0x29A Stop watchdog...
  • Page 112 ASMB-975 User Manual...

  • Page 113: Appendix B I/O Pin Assignments

    Appendix I/O Pin Assignments...

  • Page 114: Usb Header (Usb9_10)

    USB Header (USB9_10) Table B.1: USB Header Signal Signal USB_VCC5 USB_VCC5 USB_D- USB_D- USB_D+ USB_D+ USB3.0 Header(USB5_6, USB7_8) Table B.2: USB Header Signal Signal +5 V STDA_SSRX- STDA_SSRX+ STDA_SSRX- STDA_SSRX+ N/C (OC pin reserved) STDA_SSRX+ STDA_SSRX- STDA_SSRX+ STDA_SSRX- +5 V ASMB-975 User Manual...

  • Page 115: Vga Connector (Vga1)

    VGA Connector (VGA1) Table B.3: VGA Connector Signal Signal GREEN BLUE H-SYNC V-SYNC RS-232 Interface (COM2) Table B.4: RS-232 Interface Signal ASMB-975 User Manual...

  • Page 116: External Keyboard Connector (Kbms1)

    External Keyboard Connector (KBMS1) Table B.5: External Keyboard Connector Signal KB CLK KB DATA MS DATA MS CLK CPU and System Fan Power Connector (CPUFAN0~1, SYSFAN0~SYSFAN4) Table B.6: Fan Power Connector Signal +12 V DETECT Power LED (JFP3) Table B.7: Power LED Function LED power (3.3 V) Ground...

  • Page 117: B.8 External Speaker Connector (Jfp2)

    External Speaker Connector (JFP2) 1 4 7 10 Table B.8: External Speaker Connector Function SPK+ SPK- Reset Connector (JFP1) 9 12 Table B.9: Reset Connector Signal RESET B.10 HDD LED Connector (JFP1) Table B.10: HDD LED Connector Signal HDD_LED+ HDD_LED- ASMB-975 User Manual...

  • Page 118: B.11 Atx Soft Power Switch (Jfp1)

    B.11 ATX Soft Power Switch (JFP1) Table B.11: ATX Soft Power Switch Signal PWR-BTN B.12 Front panel SMBus Connector (SMBUS1) SMB_CLK_RESUME SMB_DATA_RESUME B.13 USB/LAN Ports (LAN1_USB1_2, LAN2_USB3_4) Table B.12: USB Port Signal Signal VCC_DUAL Data0+ Data0- Table B.13: Giga LAN 10/100/1000 Base-T RJ-45 Port Signal Signal MID0+...

  • Page 119: B.14 Audio Connector (Hdaud1)

    B.14 Audio Connector (HDAUD1) Table B.14: Front Panel Audio Connector Signal Signal +5V_AUDIO ACZ_SYNC ACZ_BITCLK ACZ_SDOUT ACZ_SDIN0 ACZ_SDIN1 ACZ_RST +12V_AUDIO B.15 Alarm Board Connector (VOLT1) Table B.15: Alarm Board Connector Signal Signal 5VSB +3.3V -12V +12V B.16 Case Open Connector (JCASE1) Table B.16: Case Open Connector Signal CASEOP...

  • Page 120: B.17 Front Panel Lan Led Connector (Lanled1)

    B.17 Front Panel LAN LED Connector (LANLED1) Table B.17: LAN LED Connector Signal Signal LAN1_LED_ACT# LAN2_LED_ACT# +V3.3_AUX +V3.3_AUX LAN3_LED_ACT# LAN4_LED_ACT# +V3.3_AUX +V3.3_AUX B.18 SATA SGPIO (SGPIO1/SGPIO2) SGPIO_SATA_CLOCK SGPIO_SATA_LOAD SGPIO_SATA_DATA0 SGPIO_SATA_DATA1 B.19 LPC Connector (LPC1) CLK_24M_LPCCN LPC_AD1 PLTRST_LPC LPC_AD0 LPC_FRAME# +3.3 V LPC_AD3 LPC_AD2 SMB_SCL_LPC...

  • Page 121: B.20 Clear Cmos And Update Me Connector (Jcmos1, Jme1)

    B.20 Clear CMOS and Update ME Connector (JCMOS1, JME1) JCMOS1 JME1 RTC_RST_PCH PCH_HDA_SDO V3.3_AUX B.21 PMBUS Connector (PMBUS1) SMB_SCL_PM SMB_SDA_PM SMB_ALERT_PM# +V3.3_AUX B.22 GPIO Connector (GPIO1) EC_GPIO0 EC_GPIO4 EC_GPIO1 EC_GPIO5 EC_GPIO2 EC_GPIO6 EC_GPIO3 EC_GPIO7 +VCC_GPIO ASMB-975 User Manual...
  • Page 122 ASMB-975 User Manual...
  • Page 123 ASMB-975 User Manual...
  • Page 124 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
