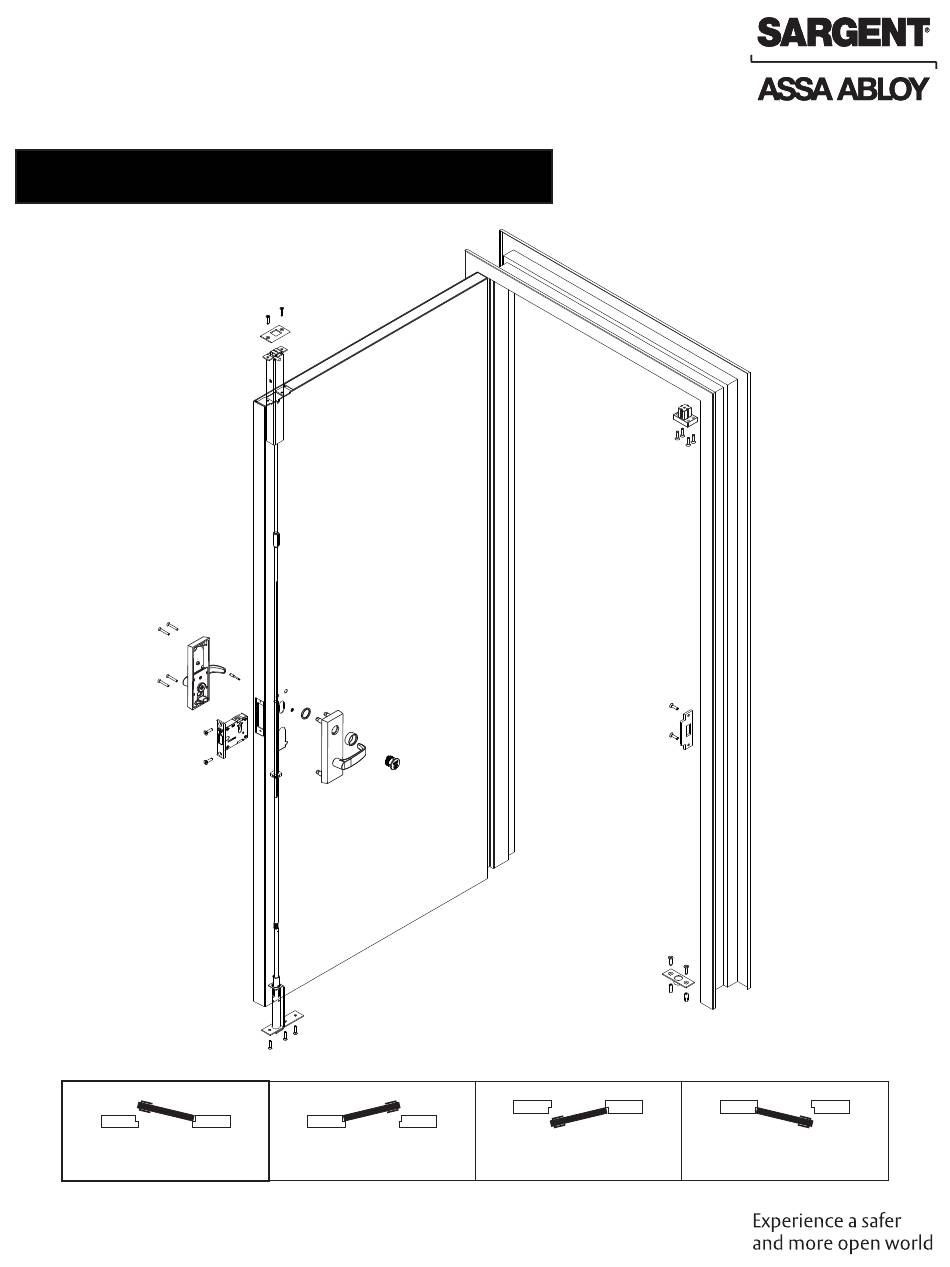

Installation Instructions
FM7100 Series
Multi-Point Lock
RH Door Shown
INSIDE
INSIDE
INSIDE
INSIDE
OUTSIDE
OUTSIDE
OUTSIDE
OUTSIDE
RIGHT HAND (RH)
LEFT HAND (LH)
RIGHT HAND REVERSE (RHR)
LEFT HAND REVERSE (LHR)
1-800-727-5477 • www.sargentlock.com
Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express
A8010G 08/22
written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SARGENT FM7100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Assa Abloy SARGENT FM7100 Series

Summary of Contents for Assa Abloy SARGENT FM7100 Series

  • Page 1 Installation Instructions FM7100 Series Multi-Point Lock RH Door Shown INSIDE INSIDE INSIDE INSIDE OUTSIDE OUTSIDE OUTSIDE OUTSIDE RIGHT HAND (RH) LEFT HAND (LH) RIGHT HAND REVERSE (RHR) LEFT HAND REVERSE (LHR) 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express A8010G 08/22 written permission of SARGENT Manufacturing Company is prohibited.

  • Page 2: Installation Instructions

    FM7100 Series Multi-Point Lock Installation Instructions This device is intended to be part of an integrated door, frame and hardware assembly UL-approved for both FEMA P-361 (2014), FEMA P-320 (2015) & ICC 500 (2014) guidelines for both in-swing and out-swing doors. Tools Needed Supplied: Required:...
  • Page 3 FM7100 Series Multi-Point Lock Installation Instructions Verify Handing Right Hand Door Shown INSIDE OUTSIDE Left Hand Door Shown Verify Door Dimensions LOCK IN condition can occur and EMERGENCY EGRESS will be prevented if critical dimensions are not met. Device will not operate, if door cutouts are not within the dimensions below. INSIDE OUTSIDE 42"...
  • Page 4 FM7100 Series Multi-Point Lock Installation Instructions Install Deadbolt Assembly Flat Head Hex Socket Right Hand Door Shown 1/4-20x1" Deadbolt must be retracted before moving to the next step. Install Bottom Bolt Assembly Flat Head He x Socket 12-24x1" Right Hand Door Shown A8010G 08/22 1-800-727-5477 •...
  • Page 5 FM7100 Series Multi-Point Lock Installation Instructions Align Bottom Bolt Assembly Right Hand Door Shown DOWN A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
  • Page 6 FM7100 Series Multi-Point Lock Installation Instructions Prep Top Assembly IMPORTANT THREAD ON FULLY AND TIGHTEN LA Y TOP ROD ON DOOR Right Hand Door Shown MARK CLOSEST HOLE A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 7 FM7100 Series Multi-Point Lock Installation Instructions Install Top Assembly For doors manufactured before July 2022, drill & tap top bolt screw holes for 5/16-18 screw threads. Flat Head Socket 5/16-18x1” Right Hand Door Shown A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 8 FM7100 Series Multi-Point Lock Installation Instructions Align Top & Bottom Pinning Holes Right Hand Door Sho wn GO TO STEP 11 Bottom GO TO STEP 10a OR 10b A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 9 FM7100 Series Multi-Point Lock Installation Instructions Adjust Misaligned Pinning Holes Up Right Hand Door Sho wn Bottom GO TO STEP 11 A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 10 FM7100 Series Multi-Point Lock Installation Instructions Adjust Misaligned Pinning Holes Down Right Hand Door Shown Bottom GO TO STEP 11 A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 11 FM7100 Series Multi-Point Lock Installation Instructions Pin Three Assemblies Push-on Retaining Drive Pin Ring INSIDE OUTSIDE Right Hand Door Sho wn Mount Door to Frame TO FRAME Do not trim door if door rubs along floor! Right Hand Door Shown A8010G 08/22 1-800-727-5477 •...
  • Page 12 FM7100 Series Multi-Point Lock Installation Instructions Check for Hold Open PUSH GO TO STEP 14 GO B ACK TO A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 13 FM7100 Series Multi-Point Lock Installation Instructions Adjust Device Hand Tighten Device Must Be In HOLD OPEN Before Adjusting Device Must Rotate Exactly 3 Re volutions A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 14 FM7100 Series Multi-Point Lock Installation Instructions Trigger Device & Final Check P U S PUSH GO B ACK TO STEP 14 GO B ACK TO STEP 14 A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 15 FM7100 Series Multi-Point Lock Installation Instructions Assemble Cylinder into Outside Trim Mount Outside and Inside Trim TRIM INSIDE OUTSIDE Oval Head Phillips 12-24x1 1/2" FM7100 A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 16 FM7100 Series Multi-Point Lock Installation Instructions Install Top Latch into Door Frame Flat Head Hex Socket 1/4-20x1" F M7100 Attach Deadbolt Strike Plate to Frame Flat Head Hex Socket 1/4-20x1" F M7100 A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 17 FM7100 Series Multi-Point Lock Installation Instructions Prepare Floor for Bottom Strike Flat Head He x Socket 1/4-20x1" 1-1/8" Dia. x 7/8" Deep A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 18 FM7100 Series Multi-Point Lock Installation Instructions Install Bottom Strike 1/4" MAX Bottom Of Door To Top of Strike Chisel as required 3/8" Dia. x 1-1/2" Deep 1/8" Deep A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 19 FM7100 Series Multi-Point Lock Installation Instructions Test Installation IMPORTANT 5/64 Hex Tighten after door is adjusted and works proper ly. A8010G 08/22 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 20 WARNING This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov. 1-800-727-5477 • www.sargentlock.com Copyright © 2016, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
