Components: What They Do & Where To Get Them
Each component is described below. I have listed multiple sources for most
components, but have not actually tried all of them, so best treat the specified part
numbers as guidance only. Where eBay is listed as a supplier, the part is likely to be
cheaper there than the other sources, sometimes considerably cheaper. Further
savings are usually possible by ordering parts direct from countries like China.

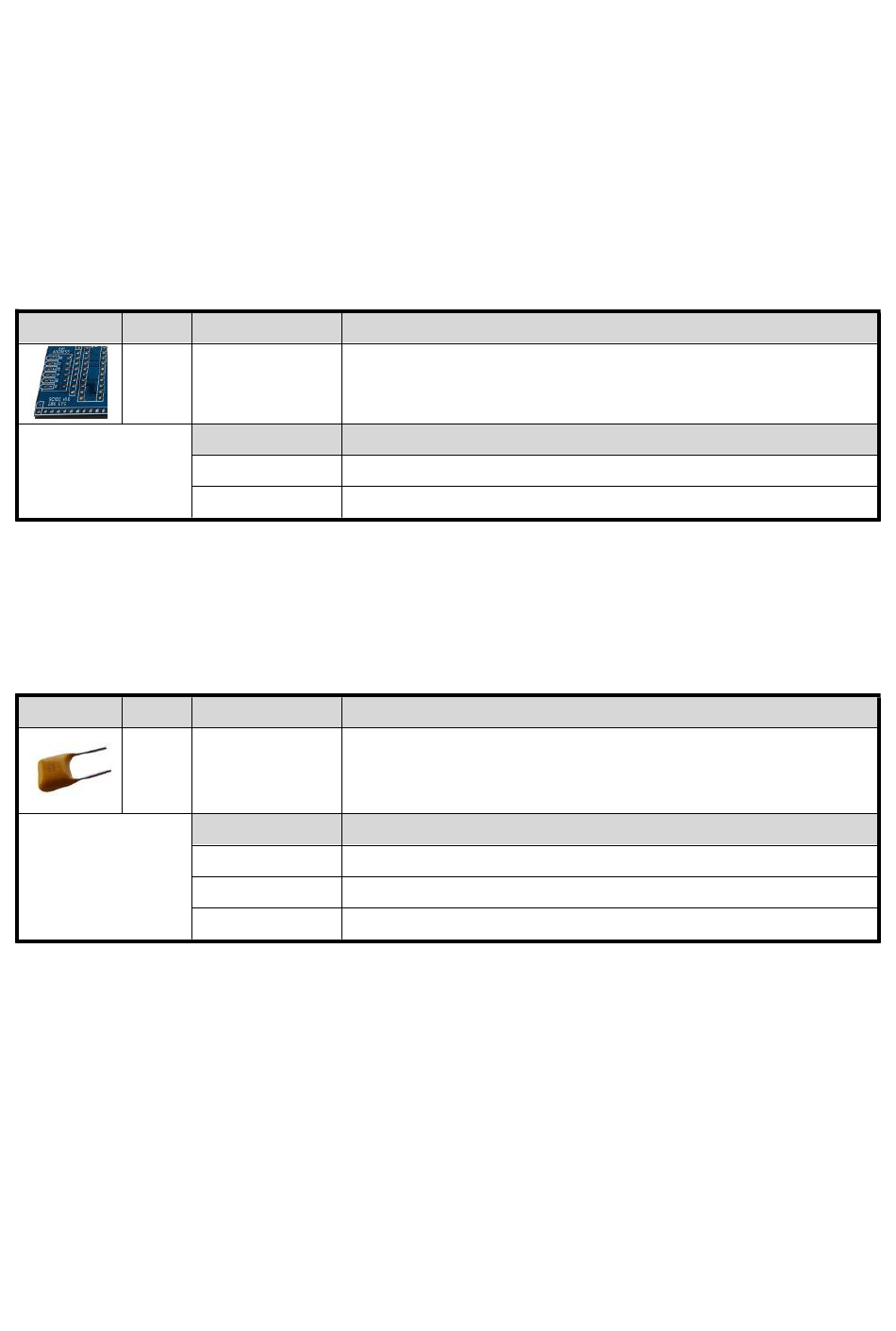

PCB
Image Qty
1
The PCB is currently only available to be ordered from EasyEDA.com, although you
can download the Gerber and send it to your preferred manufacturer.
C1, 2, 3, 4
Image Qty
4
These capacitors provide power supply decoupling (or bypass). The fast switching in
digital circuits creates spikes on the power supply lines which are suppressed with
decoupling capacitors placed at key points on the circuit board.
Reference Description
PCB Printed circuit board SC103 Z80 PIO
Supplier Part number
EasyEDA Search EasyEDA.com for RC2014 PIO
Reference Description
C1, 2, 3, 4 Capacitor 100nF, ceramic, lead spacing = 2.54mm
Supplier Part number
Farnell 1100533
Mouser 75-1C10Z5U104M050R
RS 699-5027
