What You Need

The following components are required to assemble the module. Header pins JP1
and JP2, and P1 to P4 may need to be cut from longer strips.

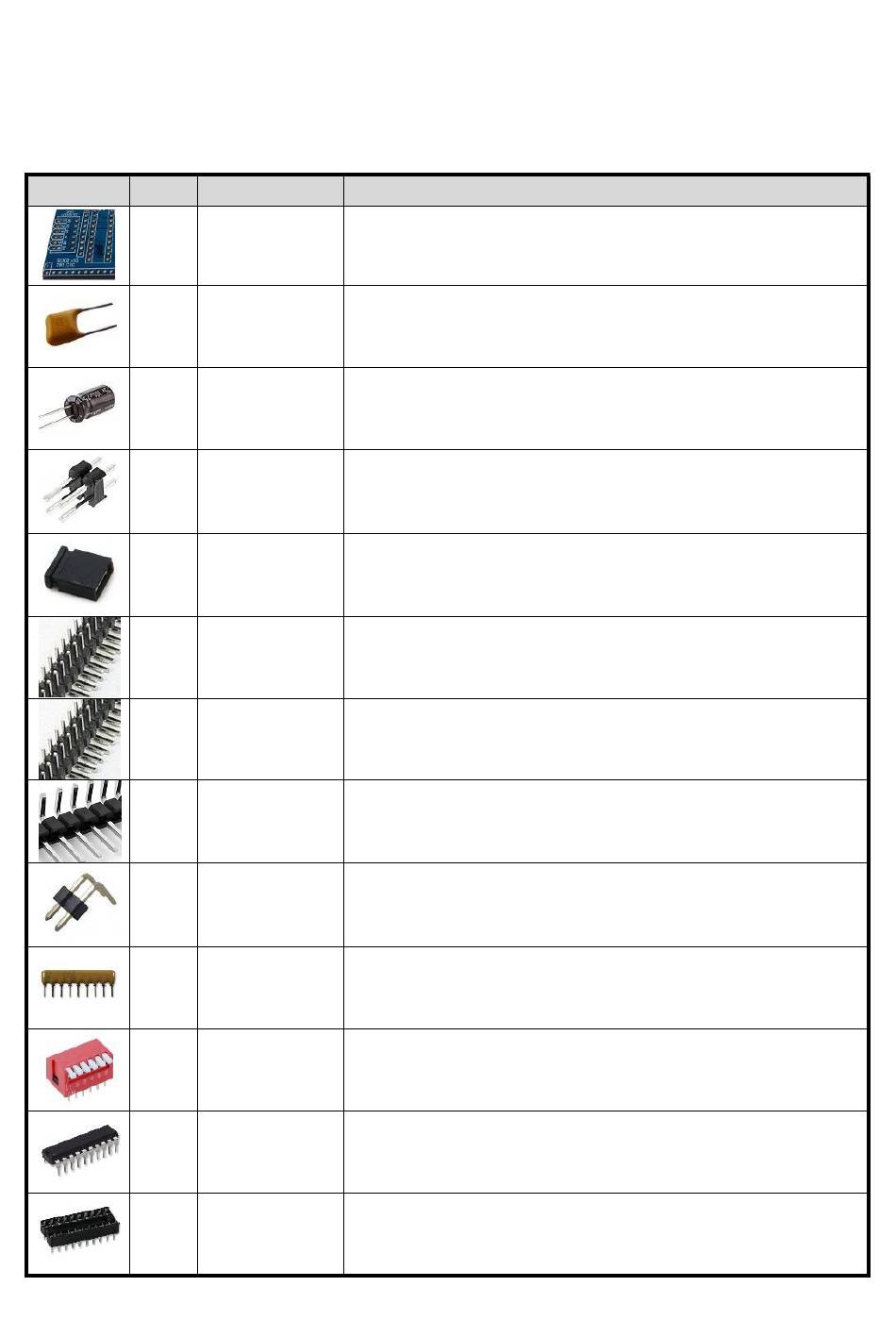

Image Qty
1
4
1
1
2
1
1
1
1
1
1
1
1
Reference Description
PCB Printed circuit board SC103 Z80 PIO
C1, 2, 3, 4 Capacitor 100nF, ceramic, lead spacing = 2.54mm
C5 Capacitor 100uF, electrolytic, lead spacing =
2.54mm (radial) or 14mm (axial)
JP1 and JP2 Pin header, male, 2 rows x 2 pins, straight
JP1 and JP2 Jumper shunt for pin spacing = 2.54mm
P1 Pin header, male, 2 rows x 39 pins, angled (2nd
row optional)
P2 Pin header, male, 2 rows x 13 pins, angled
P3 Pin header, male, 1 row x 29 pins, angled
P4 Pin header, male, 1 row x 2 pins, angled
RP1 Resistor pack 8x10k, SIL, 9-pin
SW1 DIP switch, 6 way, piano style
U1 74HCT688, 8-bit identity comparator, PDIP 20
U1 socket 20 pin PDIP IC socket 0.3" wide
