Step 11

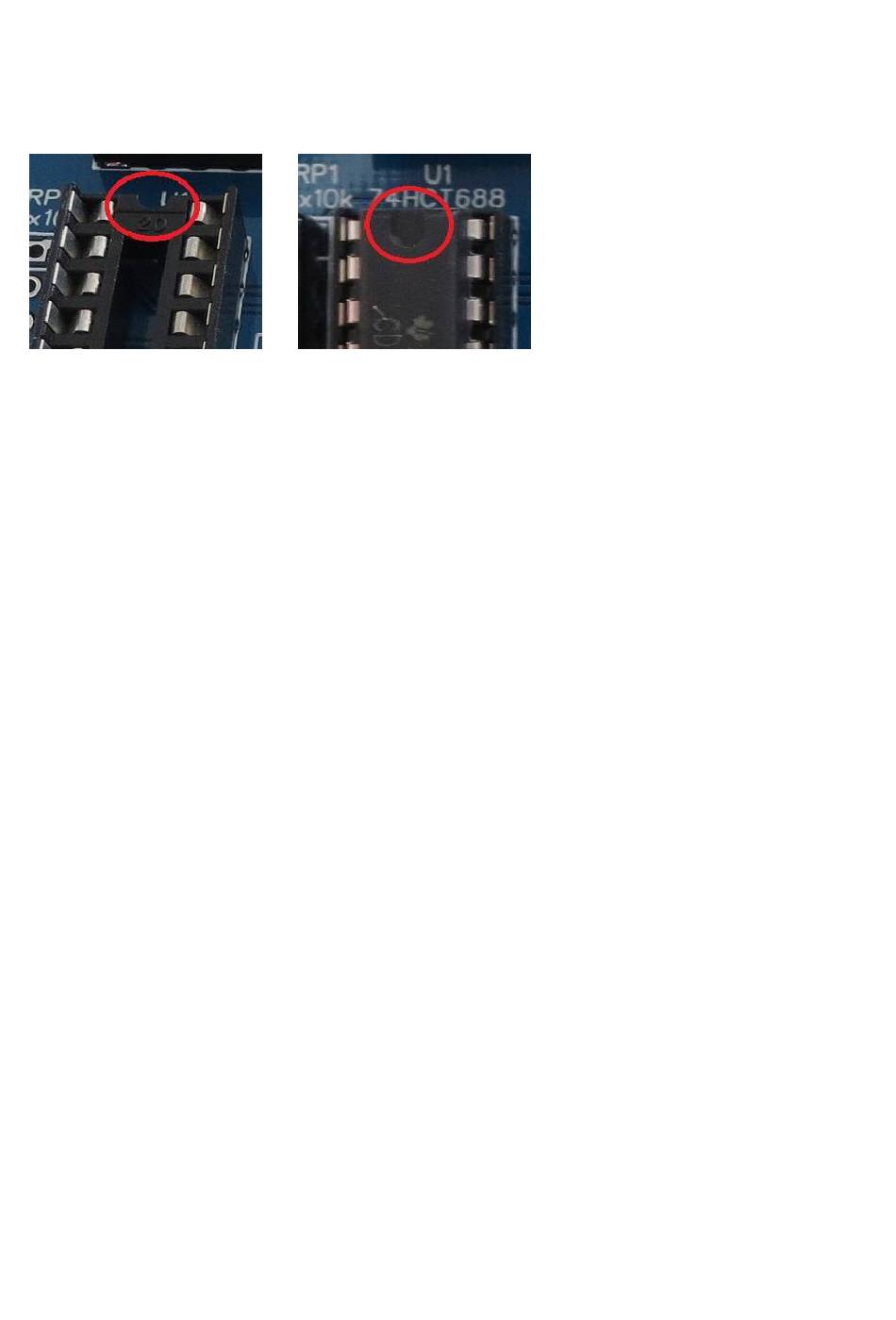

Insert the ICs into their sockets, taking care to insert them the right way round, as
illustrated below. Be careful not to bend any legs over.
Now plug the PIO module into the RC2014 backplane together with your normal
working set of modules. Power up and check the system is working as usual.
25
