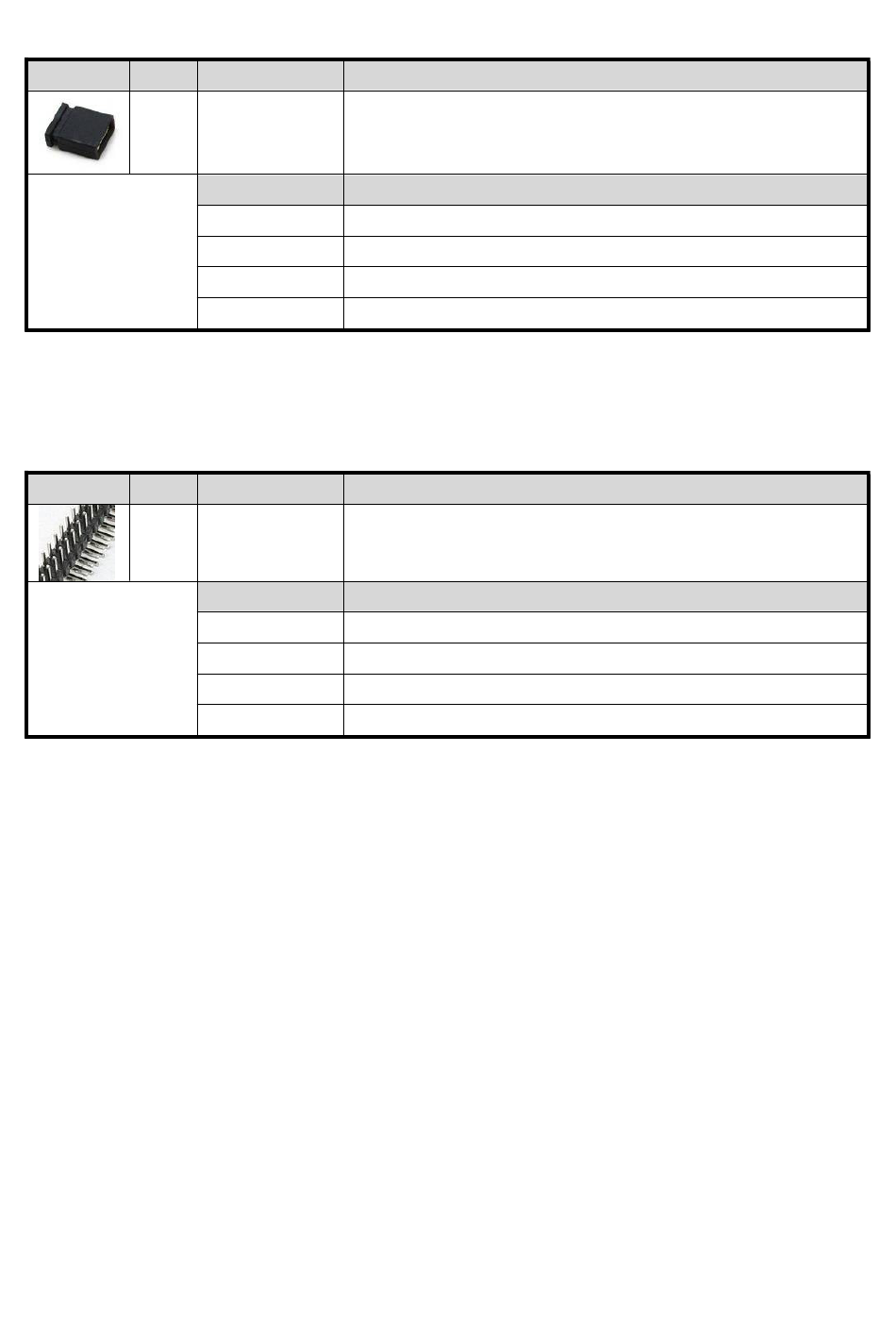

JP1 and J2
Image Qty
2
These shunts (small sockets) connect the required pins on JP1 and J2.
P1
Image Qty
1
This connector mates with the RC2014 bus backplane. You can fit a single or a
double row header. The only reasons for the second row is to provide additional
power supply pins, make the module the same height as the others and to increase
stability of the module.
Some pins need to be removed, using a pair of pliers, before fitting.
Reference Description
JP1 and JP2 Jumper shunt for pin spacing = 2.54mm
Supplier Part number
eBay 201261690156
Farnell 2396303
Mouser 649-68786-102LF
RS 674-2397
Reference Description
P1 Pin header, male, angled, 2-row x 39-pin, 2 row (1
row optional)
Supplier Part number
eBay 200906546562 (2x40 pin to be cut to length)
Farnell 1097962 (2x40 pin to be cut to length)
Mouser 571-9-103795-0 (2x40 pin to be cut to length)
RS 155-743 (2x40 pin to be cut to length)
