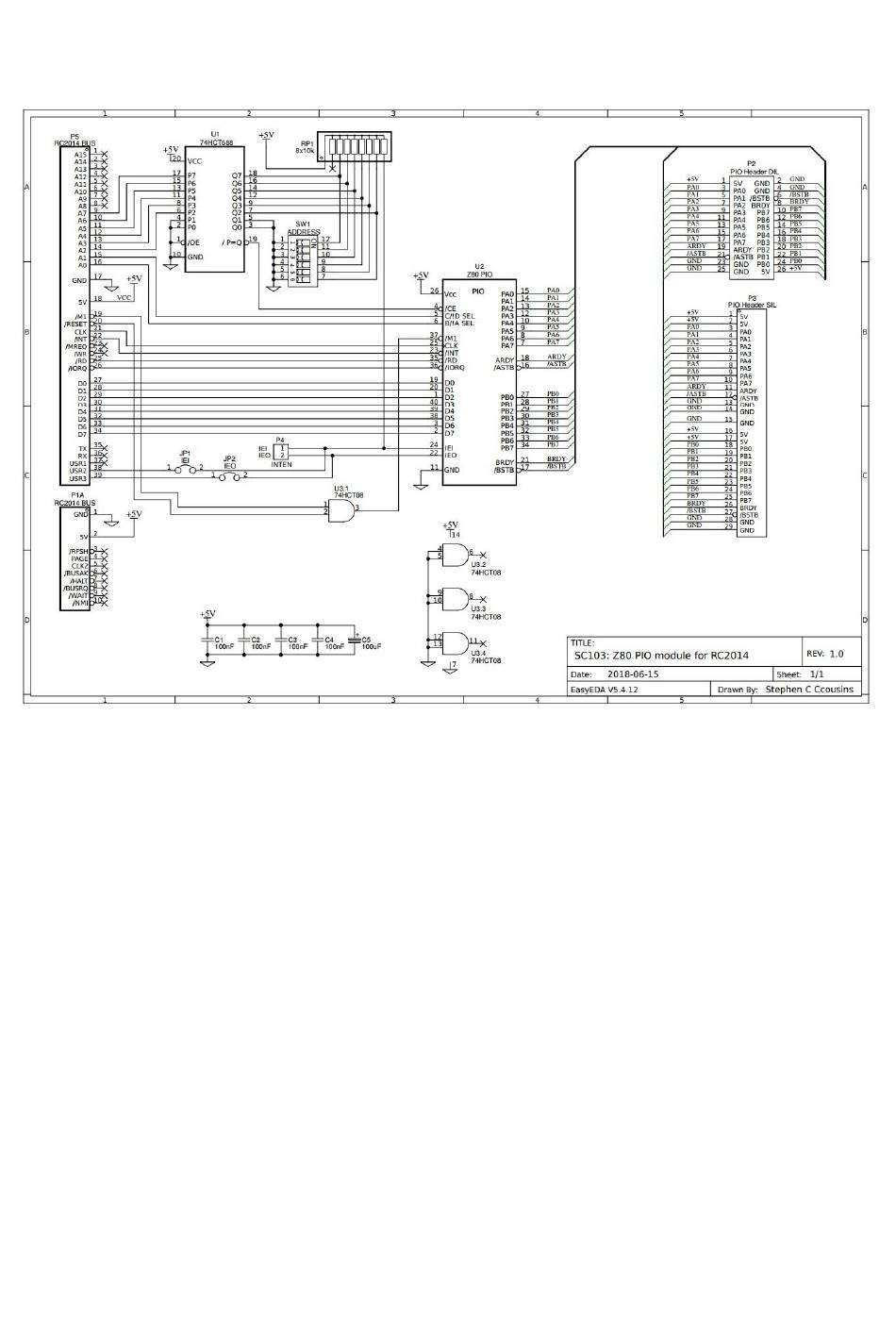

Schematic
Errata
Version 1.0 of the PCB has the RC2014 IEI (pin 38) and IEO (pin 39) incorrectly
labelled. The labels are incorrectly shown next to pins 37 and 38, not 38 and 39.
Also port A I/O lines are not correctly labelled on the back of the board. The labels
on the front of the board are correct though.
4
