ZiLOG Z80 User Manual page 18

Pio module for rc2014
Hide thumbs Also See for Z80:
Table of Contents

Advertisement

Step 3

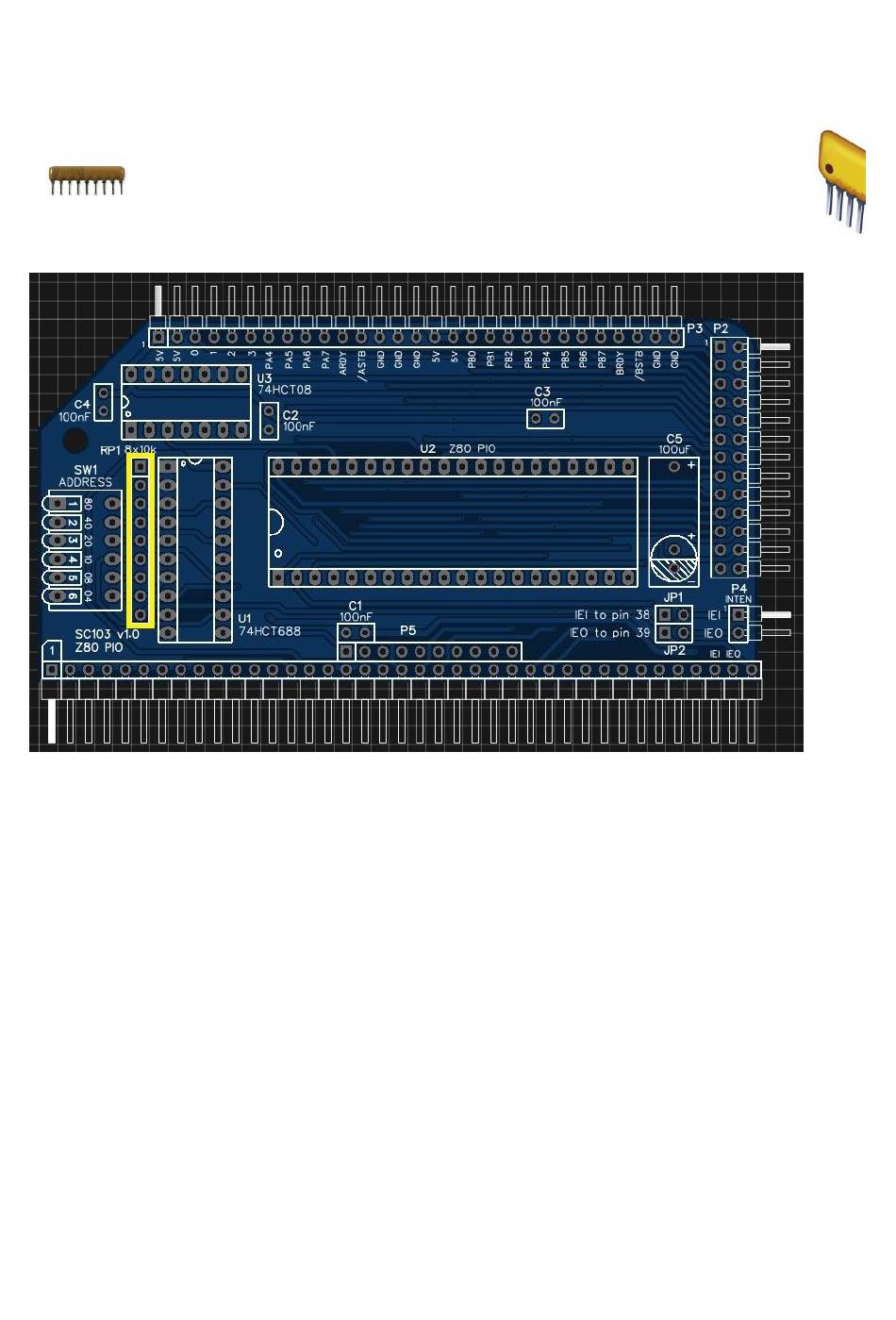

Fit and solder resistor pack RP1.
This must be fitted the correct way round. The component
should have pin 1 marked with a dot, as illustrated right.
