Removal of Compressor ASSY

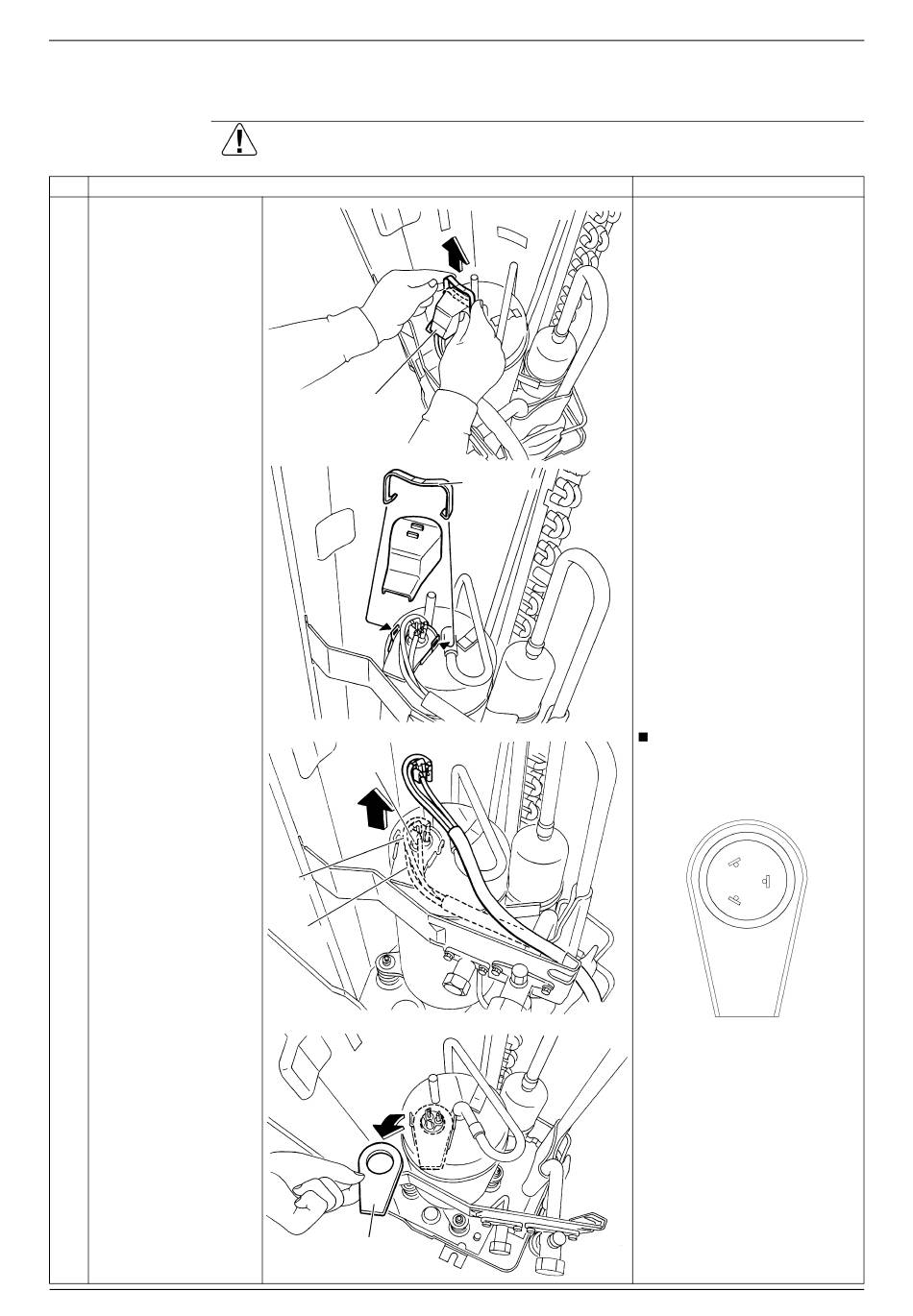

7. Removal of Compressor ASSY
Procedure
Step
1
Remove the terminal
cover.
2
Disconnect the
compressor lead wires.
3
Remove the gasket.
14
Warning
Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Terminal cover
Red (R)
Blue (C)
Yellow (S)
Gasket
(R5455)
(R5455)
Terminal
cover
fixture
(R5456)
(R5457)
S: yellow
C: blue
R: red
(R5458)
Si011196
Points
Be careful so as not to burn
the compressor terminals or
the name plate.
S
C
R
(R12819)
