Daikin R24LV2S Service Manual Removal Procedure page 6

6.0 kw class, 24000/28000 class, outdoor unit, non-inverter, pair type

Table Of Contents

Advertisement

Removal of Outer Panels

Step

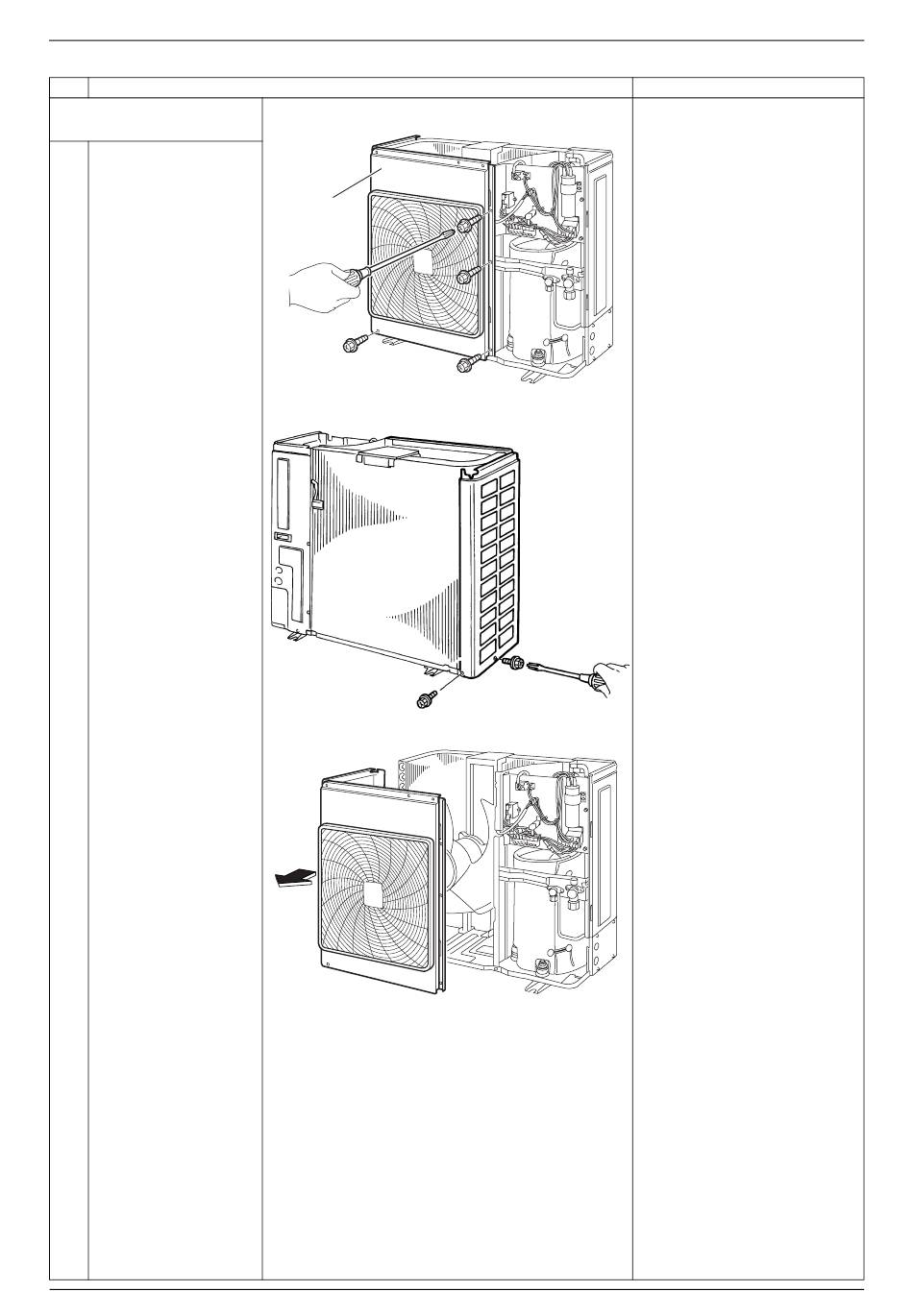

4. Remove the front panel

(1).

1

Remove the 6 screws

and remove the front

panel (1).

4

Procedure

Front panel (1)

Points

(R12810)

(R17188)

(R8322)

Removal Procedure

Si011196
