Removal Of Electrical Component Assy - Daikin R24LV2S Service Manual Removal Procedure

Si011196

3. Removal of Electrical Component ASSY

Procedure
Step

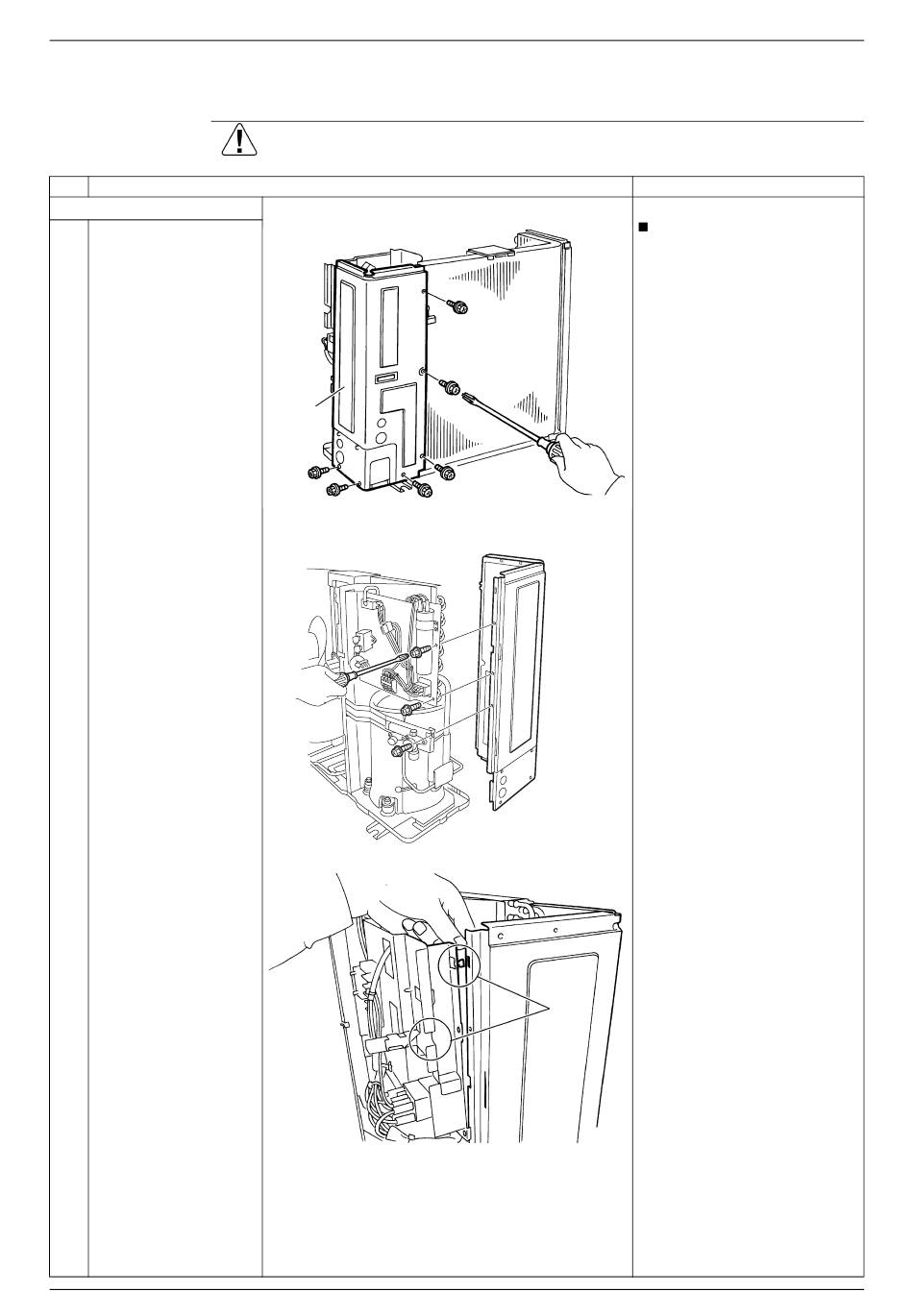

1. Remove the side panel.
1 Remove the 9 screws
and remove the right
side panel.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Right side
panel
Removal of Electrical Component ASSY
Preparation
Remove the top panel, front
panel (1) (2), and piping
cover (front) according to the
"Removal of Outer Panels".
(R15402)
(R16367)
Hook
(R5442)
Points
7
