Si011196

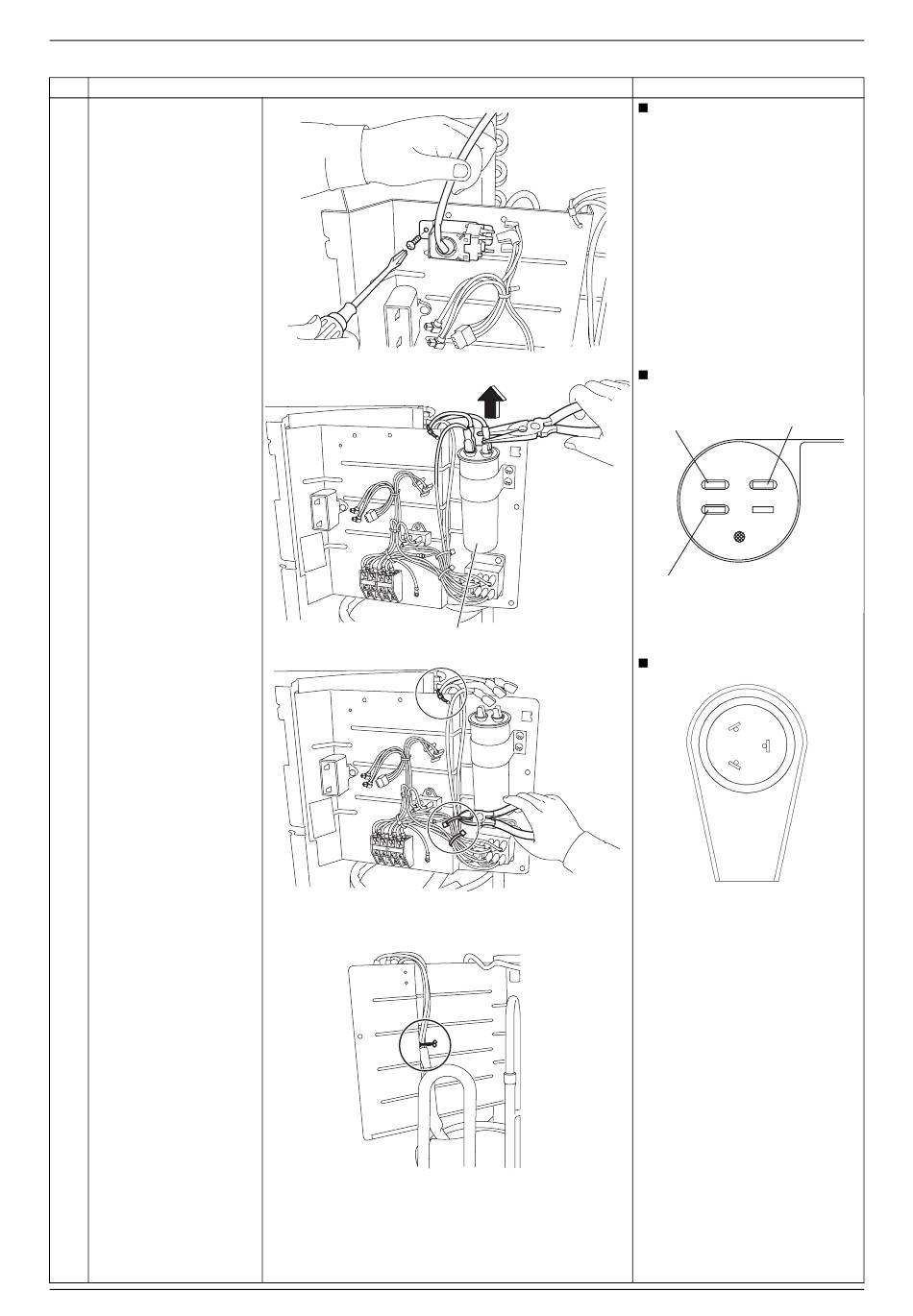

Step
4 Remove the left screw
and remove the outdoor
temperature
thermostat.
5 Disconnect the
terminals from the
compressor capacitor
(C1R).
6 Cut the 3 clamps.
7 Cut the clamp on the
rear side.
Removal Procedure
Procedure
Compressor capacitor
Removal of Electrical Component ASSY
If it is difficult to remove the
outdoor temperature
thermostat, loosen the right
screw.
(R15486)
Compressor capacitor (C1R)
to compressor
(R terminal): red
to magnetic contactor
K1M (6): red
(R16370)
Compressor lead wire
S: yellow
(R16371)
C: blue
R: red
(R17191)
Points
to compressor
(S terminal): yellow
(R17467)
S
C
R
(R12819)
9
