Removal Of Compressor Assy (Pattern 1) - Daikin RE24MV2S Removal Procedure

Si011197

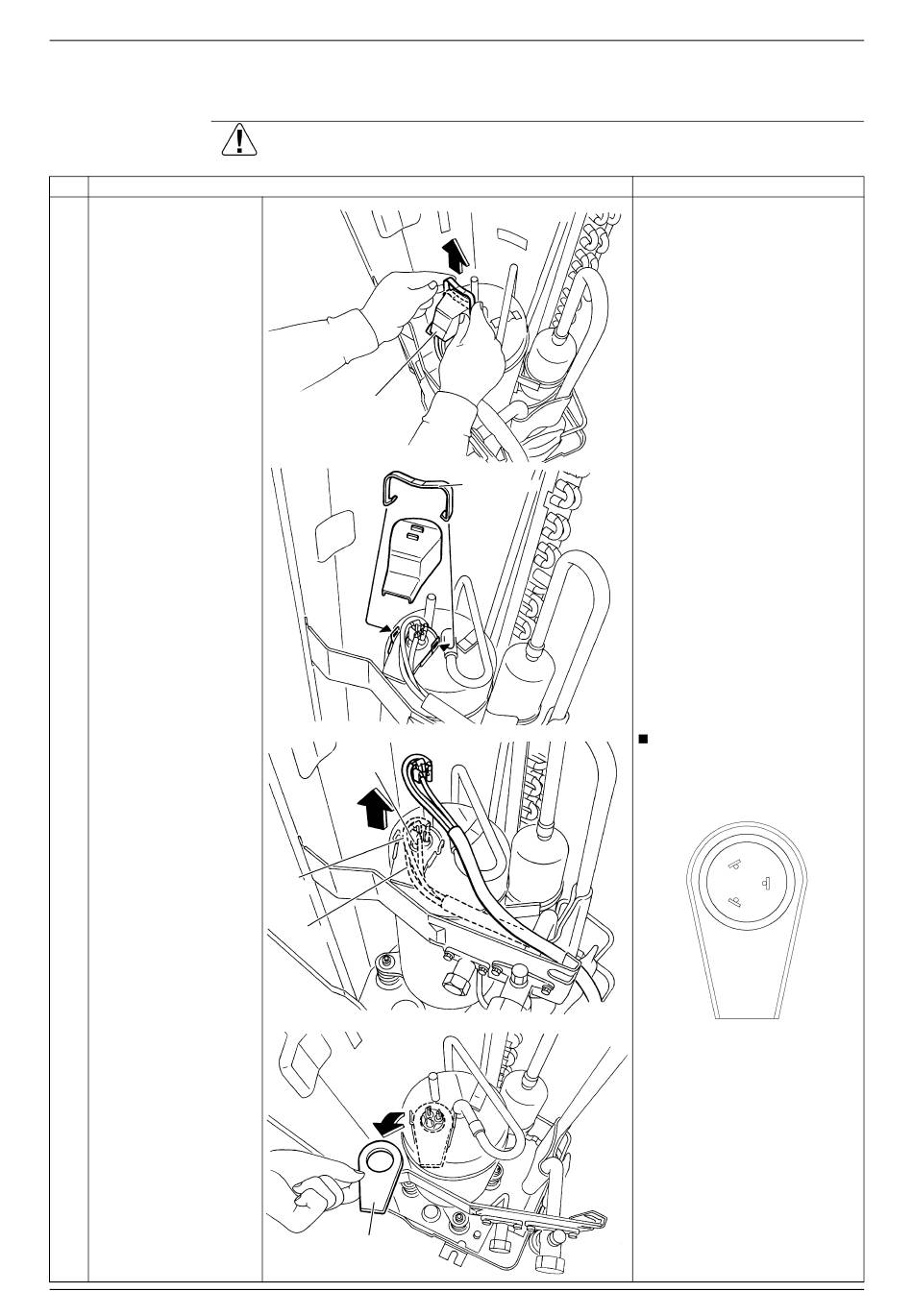

6. Removal of Compressor ASSY (Pattern 1)

Procedure
Step
1 Remove the terminal
cover.
2 Disconnect the
compressor lead wires.
3 Remove the gasket.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Terminal cover
Red (R)
Blue (C)
Yellow (S)
Gasket
Removal of Compressor ASSY (Pattern 1)
(R5455)
Terminal
cover
fixture
(R5456)
(R5457)
S : yellow
C : blue
R : red
(R5458)
Points
Be careful so as not to burn
the compressor terminals or
the name plate.
S
C
R
(R12819)
13
