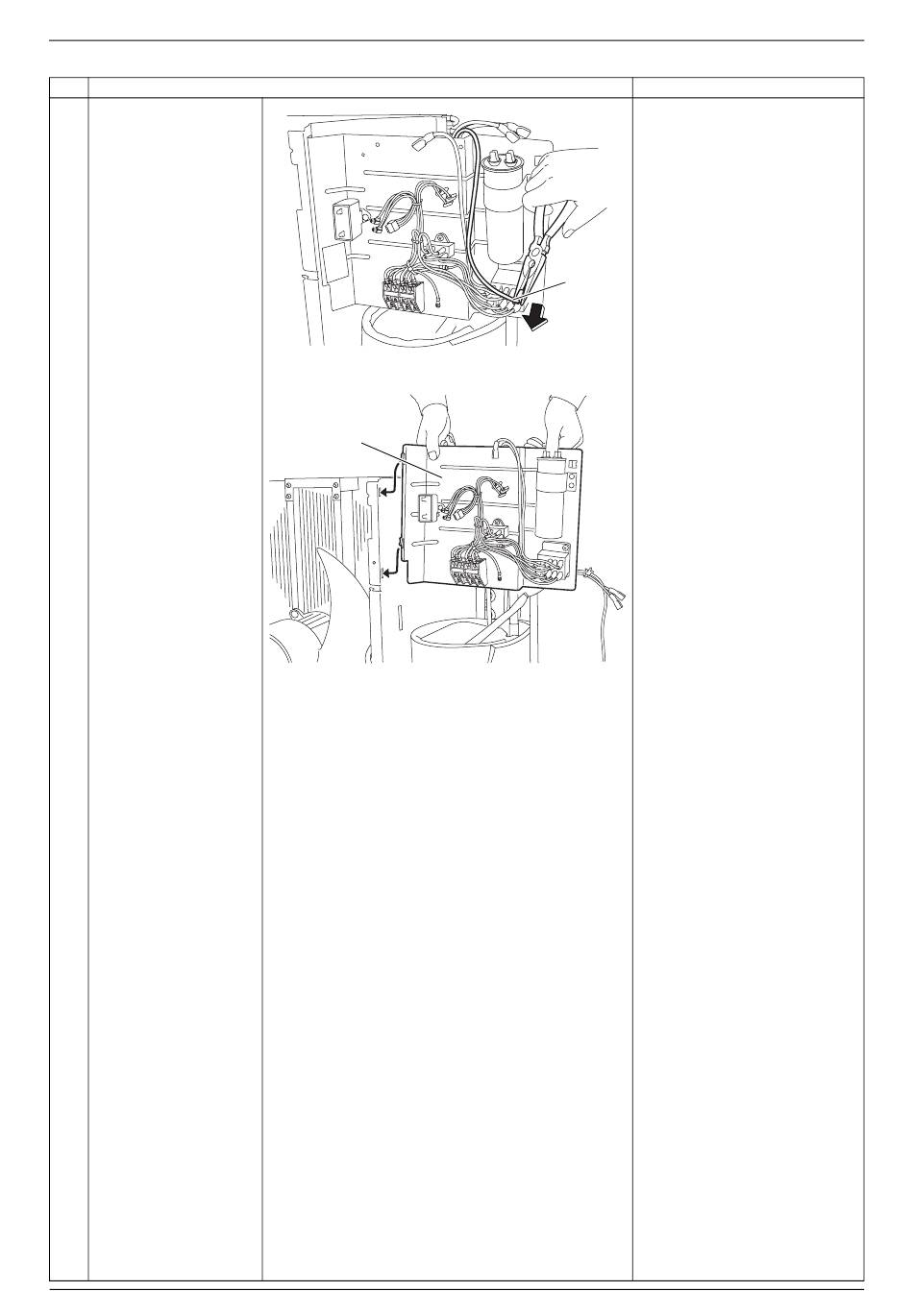

Removal of Electrical Component ASSY

Step

8

Disconnect the blue

terminal: K1M (2).

9

Lift the electrical

component ASSY to

unfasten the 2 hooks

and remove it.

10

Procedure

Electrical

component ASSY

Points

Blue

(R16372)

(R16373)

Removal Procedure

Si011196
