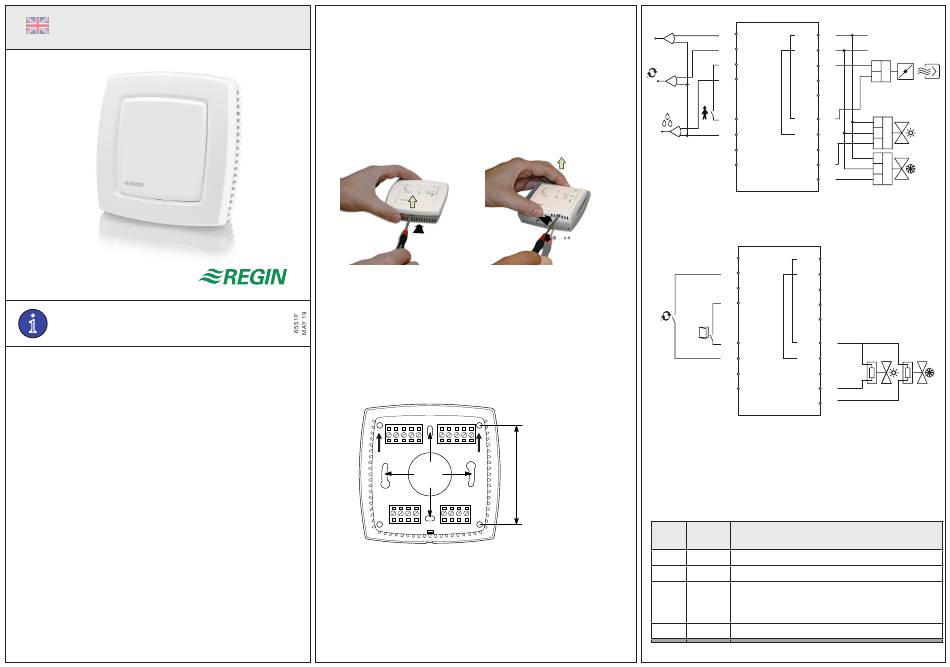

Regin Regio Mini Series Instructions Manual

INSTRUCTION
EN
REGIO RC-H
i
Read this instruction before installation
and wiring of the product
Room controller

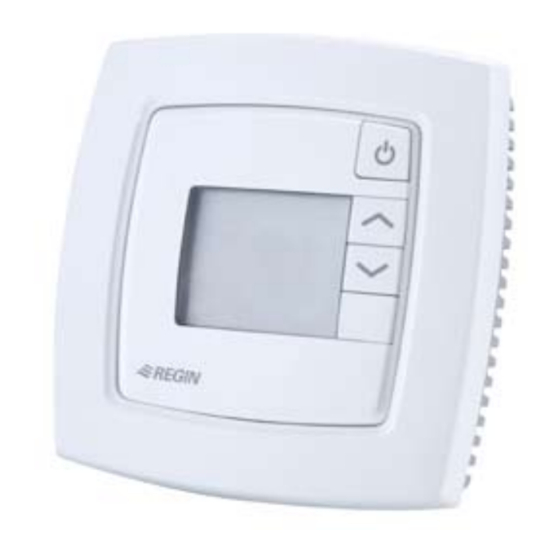

RC-H is a room controller from the Regio Mini series, intended to
control heating and cooling in a zone control system. Installation is
directly on the wall or on an electrical connection box. The controller
does not have a communication connection.
Technical data
Supply voltage 18...30 V AC, 50...60 Hz
Internal consumption 2.5 VA
Ambient temperature 0...50°C
Ambient humidity Max 90% RH
Storage temperature -20...+70°C
Built-in temperature sensor NTC Type, range 0...50°C, accuracy
+/-0.5°C at 15...30°C
Inputs and outputs Refer to connection illustrations and
table below
Connection terminals Lift type for cable cross-section 2.1 mm
Protection class IP20
Material, casing Polycarbonate, PC
Weight 110 g
Dimensions 95 x 95 x 28 mm
Installation
Place the controller in a location that has a temperature representative for
the room. A suitable location is approx. 1.6 m above floor level in a place
with unobstructed air circulation.
Remove the frame by depressing the locking tab in the lower edge of the
cover with a screwdriver. See figure 1.
Then prize out the electronics cassette using the four rectangular screwdri-
ver slots and levering against the edge of the bottom plate. See figure 2.
Note: Take care not to damage the electronics when inserting the screw-
driver into the slots.
Figure 1
The bottom plate with terminals has a number of fixing hole combina-
tions. Select suitable holes (see figure 3) and screw the bottom plate onto
the wall or connection box, so that the arrows on the bottom plate point
upwards. Do not tighten the screws too hard!
With surface-mounted cabling, break-out suitable holes from the marks in
the plastic.
10 11 12 13 14 20 21 22 23 24
UP
60
30 31 32 33 40 41 42 43
Figure 3. Bottom plate with mounting alternatives and location of
terminals (dimensions in mm.)
2
RC-H
Figure 2
UP
68
Follow table 1 below for setting. (FS) in the text indicates factory set-
ting.
Table 1. I/O connection terminals
°C
30 AI1 G 10
31 UI1 G0 11
32 DI1 DO1 12
°C
33 DI2/CI - 13
- 14
40 +C GDO 20
41 AGnd G0 21
42 - - 22
43 - UO1 23
UO2 24
Figure 4. Connection diagram for RC-H
30 AI1 G 10
31 UI1 G0 11
32 DI1 DO1 12
33 DI2/CI - 13
- 14
40 +C GDO 20
41 AGnd G0 21
42 - - 22
43 - UO1 23
UO2 24
Figure 5. Alternative connection for terminals 31, UI1, and terminal
33, DI2/CI, terminal 23, UO1, and terminal 24, UO2.
Ter- Desig- Operation
minal nation
10 G Supply voltage 24 V AC
11 G0 Supply voltage 0 V
12 DO1 For forced ventilation. 24 V AC output, max 0.5 A.
24 V AC actuator is connected between terminal
12 and terminal 20, GDO.
13-14 No function
24 V AC
G0
G
G
G0
Y
G
G0
Y
1
