Regin Regio Eddo Instruction

EN INSTRUCTION
REGIO EEDO
IN20006 REV. D, 2019-02-26
N N o o t t e e ! ! More information about the product can be found in the manual,
which is available for download from www.regincontrols.com
C C a a u u t t i i o o n n ! ! Read and understand the instruction before using the product.
C C a a u u t t i i o o n n ! ! Ensure that the installation complies with local safety
regulations.
W W a a r r n n i i n n g g ! ! Before installation or maintenance, the power supply must first
be disconnected in order to prevent potentially lethal electric shocks! In-
stallation or maintenance of this unit should only be carried out by quali-
fied personnel. The manufacturer is not responsible for any eventual
damage or injury caused by inadequate skills during installation, or through
removal of or deactivation of any security devices.

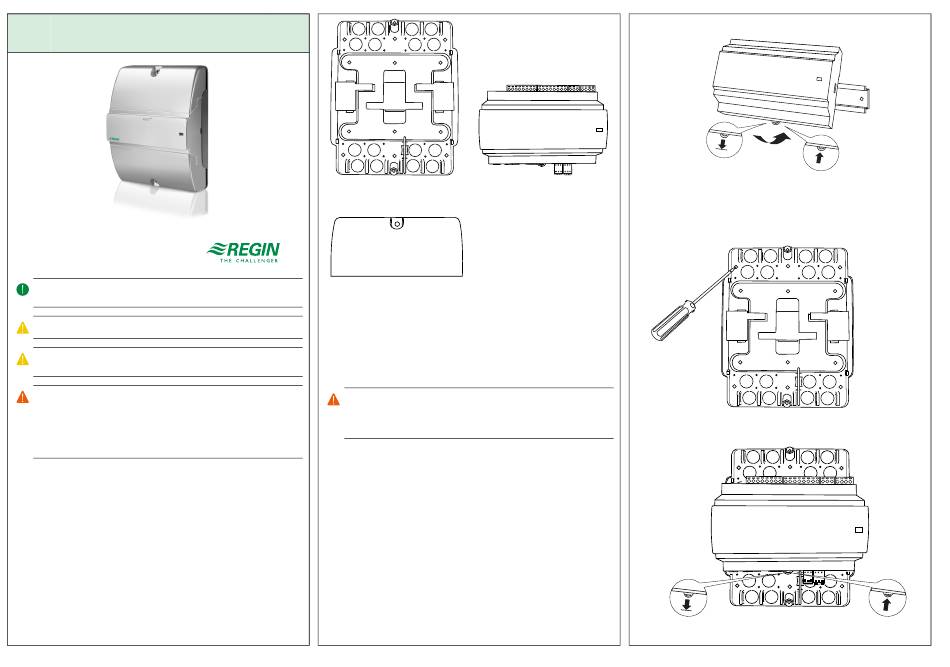

Box contents
The Regio box contains one baseplate with a pre-mounted partition
Eedo
that separates the 230 V and 24 V controller connections (A), one
controller unit (B), and two terminal protection covers (C).
A
C x 2
Mounting
The controller is mounted either on a DIN rail inside a cabinet, or on a
wall above a false ceiling. The controller form factor is EURO norm,
which makes it fit into a standard EURO norm cabinet.
W W a a r r n n i i n n g g ! ! When mounting the controller on a DIN rail, the controller
must be placed inside a cabinet to prevent electric shock. When mounting
the controller on a wall, the terminal protection covers must be attached
to prevent electric shock.
DIN rail mounting inside a cabinet
To mount the controller:
1. Pull out the fastener.
2. Attach the controller to the rail.
Regio Eedo
3. Push in the fastener to secure the controller.
B
Wall mounting
To mount the controller:
1. Attach the baseplate to the wall using screws.
2. Pull out the fastener and attach the controller to the baseplate, and
then push in the fastener to secure the controller.
1
