Regin RVAZ2-24 Instructions Manual

EN INSTRUCTION
RVAZ2-24
IN20053 REV. A, 2021-06-10
C C a a u u t t i i o o n n ! ! Read and understand the instruction before using the product.
C C a a u u t t i i o o n n ! ! Ensure that the installation complies with local safety
regulations.
C C a a u u t t i i o o n n ! ! Before installation or maintenance, the power supply should first
be disconnected. Installation or maintenance of this unit should only be
carried out by qualified personnel. The manufacturer is not responsible
for any eventual damage or injury caused by inadequate skills during instal-
lation, or through removal of or deactivation of any security devices.
Function

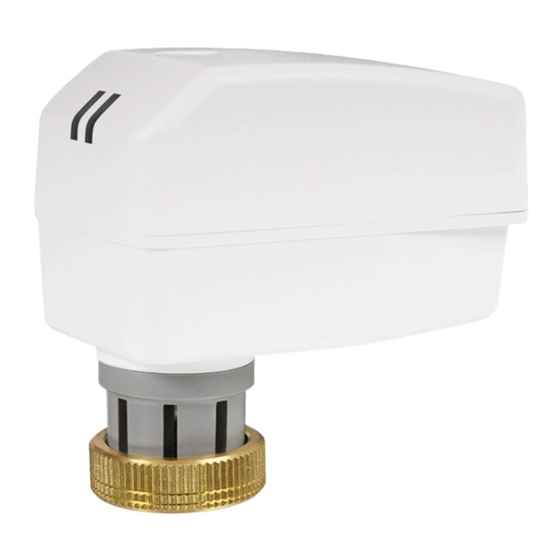

The RVAZ2-24 is an electromechanical actuator, intended for use in
applications such as heating, cooling, ventilation, chilled beams, fan-coils
and radiators. The actuator is very versatile, suitable for a wide range of
valves.
Technical Data
Supply voltage 24 V AC/DC +/- 15 %
Control signal 2 or 3-point, 3-wire
Power 2 W / 6 VA
consumption
Inrush current 1.6 A
Stroke 1-8.5 mm
Running time 5.5 s / mm
Force 200 N
Visual position LED
indicator
Status and diag- LED
nostic indicator
Manual override By 4 mm Allen key
Ambient 0...50 °C
temperature
Ambient humidity 95 % RH, non-condensing
Dimensions (W x H 50 x 88 x 93 mm
x L)
Protection class IP54
Cable length 1.5 m (halogen free)
Installation
Start-up sequence
During operation the actuator will self-adjust according to stroke length
of the valve.
N N o o t t e e ! ! The actuator will not work properly if no valve is installed.
Mounting
Upside down installation is allowed, along with the standard horizontal
and vertical installation.
Fix the actuator to the valve using the connection nut, manual power is
sufficient.
C C a a u u t t i i o o n n ! ! Do not use any tools as they can damage the actuator bracket.
Make sure the actuator stem is completely retracted before mounting it
on the valve.
Valves from other brands
See valve requirements in image below, when using valves from other
brands than Regin.
RVAZ2-24
C
B
A
M30 x 1,5 mm*
Figure 1 A = min. 9.0 mm; B = max 17.5 mm; C = max Ø 20.5 mm; D = max 9.0
mm, * Adapters in range M28 x 1.5 mm to M30 x 1.5 mm are available. Contact
Regin for more information.
Wiring
The actuator has a halogen free connection cable fixed to the actuator.
Connect the supply voltage and control signal. If the actuator and
controller share a transformer, it is very important to keep the phase
separate from the zero, so the same pole is used as zero for both
controller and actuator, since this is the reference for the control signal.
2 24 V AC/DC (-)
2
B
1 1
24 V AC/DC (+)
3 3
A
Figure 2 Left = 3-point; Right = 2-point; 1 = Black; 2 = White; 3 = Red; A =
Actuator stem extend; B = Actuator stem retract
LED indication
The actuator has two LED lights with indications according to the table
below.
Green LED fixed light Actuator moving, under operation
Green LED quick flash Stroke adaption
Green LED slow flash (Flash twice + 0 % position
Off 2 sec.)
Green LED slow flash (Flash twice + 100 % position
On 1 sec. + Off 1 sec.)
Red LED lights End of SWs fault / more than 2 faults
Red LED quick flash One of End SWs fault
Red LED slow flash (Flash twice + Off 2 Auto stroke adapt fault
sec.)
D
24 V AC/DC (-)
24 V AC/DC (+)
A
1
